Large Language Model (LLM) - Chat

llama.cpp is an open-source software library, primarily written in C++, designed for performing inference on various large language models, including Llama. It is developed in collaboration with the GGML project, a general-purpose tensor library.

The library includes command-line tools as well as a server featuring a simple web interface.

Standalone Deployment of llama.cpp Model Server

  • Prerequisites:

    Setup the OpenShift CLI (oc) Tools locally and configure the OpenShift CLI to enable oc commands. Refer to this user guide.

Deployment Steps

  1. Clone or navigate to this repository.

    To get started, clone the repository using:

    git clone https://github.com/nerc-project/llm-on-nerc.git
    cd llm-on-nerc/llm-servers/llama.cpp/


    Read More

    For more details, check out the documentation.

    In the standalone folder, you will find the following YAML files:

    i. 01-llama-cpp-pvc.yaml: Creates a persistent volume to store the model file. Adjust the storage size according to your needs.

    ii. 02-llama-cpp-deployment.yaml: Deploys the application.

    iii. 03-llama-cpp-service.yaml, 04-llama-cpp-route.yaml: Set up external access to connect to the Inference runtime Web UI.

  2. Run this oc command: oc apply -f ./standalone/. to execute all YAML files located in the standalone folder.

This deployment sets up a ready-to-use container runtime that pulls the Mistral-7B-Instruct-v0.3.Q4_K_M.gguf pre-trained foundational model from Hugging Face.

About Mistral-7B Model

Mistral-7B is a high-performance, relatively lightweight LLM, fully open-source under the Apache 2.0 license. The Mistral-7B-Instruct-v0.3 LLM is an instruct fine-tuned version of the Mistral-7B-v0.3.

Opening the Inference runtime UI

  1. Go to the NERC's OpenShift Web Console.

  2. Click on the Perspective Switcher drop-down menu and select Developer.

  3. In the Navigation Menu, click Topology.

    Topology View

  4. Click the button to open the llama-cpp-server UI:

    Ollama Deployment

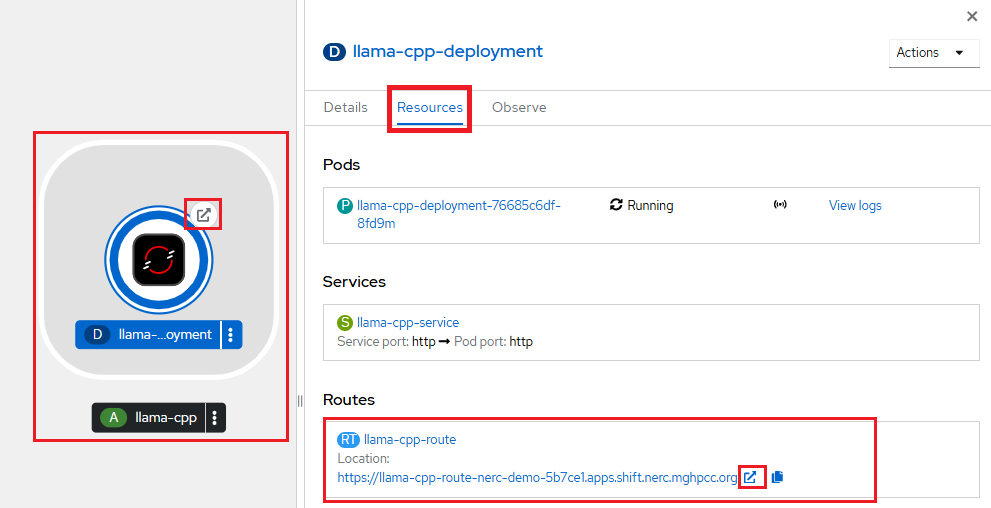

    Ollama Deployment Resources

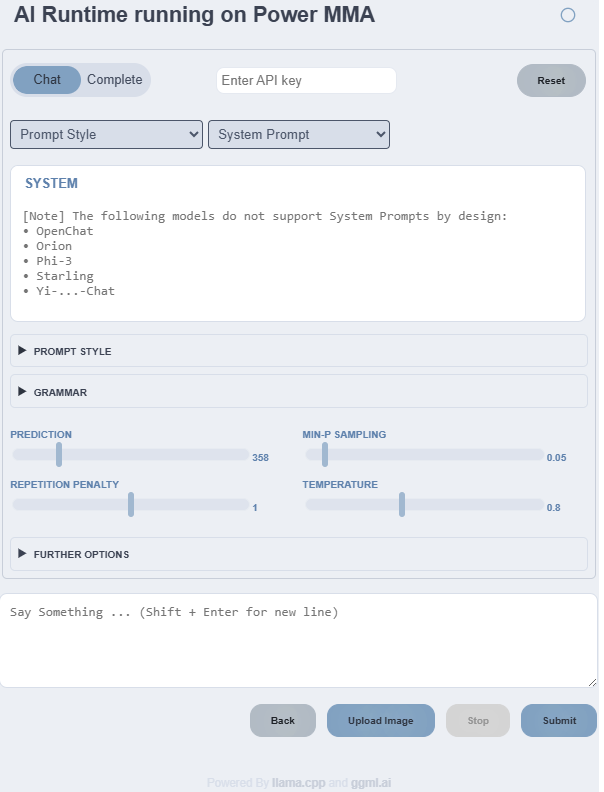

    Ollama UI

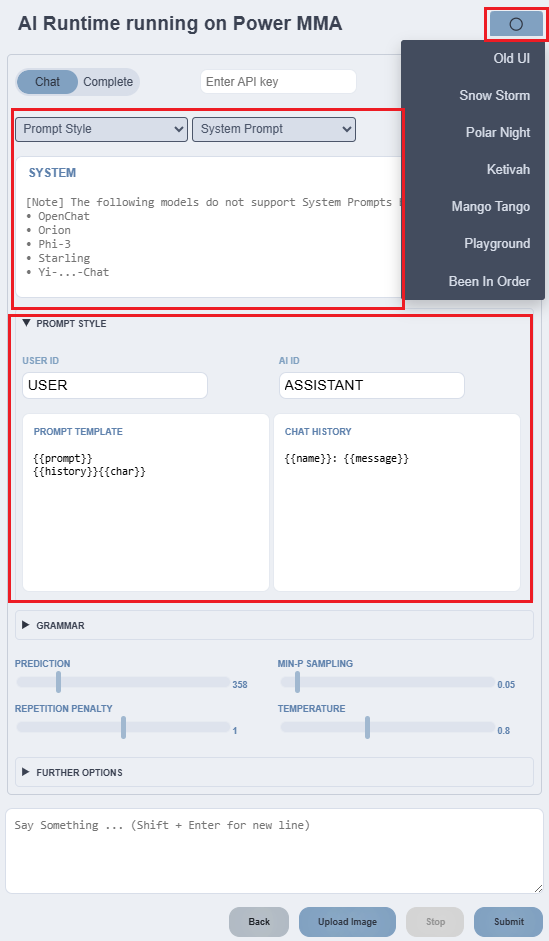

    For a better experience customize the Chat UI and Prompt Style:

    Ollama New Chat UI

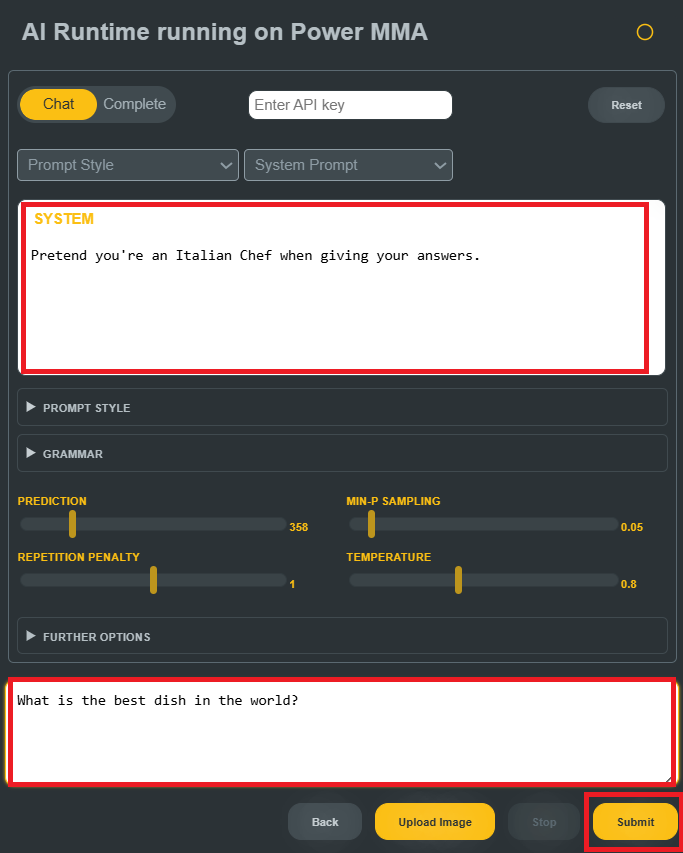

  5. Test your inferencing by querying the inferencing runtime at the "Say Something" box:

    Ollama Start Chat

  6. Start Chatting:

    You can begin interacting with the LLM.

    Ollama AI ChatBot

Clean Up

To delete all resources if not necessary just run oc delete -f ./standalone/. or oc delete all,pvc -l app=llama-cpp.

For more details, refer to this documentation.

Another LLM Server with WebUI to Chat

Similar to llama.cpp, you can set up an example deployment of the Ollama server on the NERC OpenShift environment by following these steps.

Once successfully deployed, you can access the Open WebUI for Ollama, allowing you to log in, download new models, and start chatting!

Ollama Open WebUI

Connecting LLM Clients to the Deployed LLM Providers

To learn more about how to use LLM clients i.e. AnythingLLM to connect with the locally deployed LLM providers on NERC OpenShift, please refer to this detailed guide.
