Connect to RHOAI Workbench Kernel from local Visual Studio Code (VS Code)

Some users prefer to work directly in their local IDE and run Jupyter notebooks using a kernel on a remote workbench hosted on NERC's RHOAI. While most IDEs support connecting to a remote kernel as a standard feature, this does not work with RHOAI due to its authentication setup.

Typically, IDEs use token-based authentication to connect to remote kernels. However workbench pods in RHOAI include an authentication layer in front of the workbench container that manages user access. This layer relies on OpenShift's authentication mechanism, which is not compatible with the standard remote kernel connection features provided by most IDEs.

Workaround: Connect to the remote kernel using Openshift port-forwarding

Use the following steps to connect your local VS Code to RHOAI Workbench kernel:

  • In your RHOAI data science project, create a workbench that you intend to use as your remote kernel. If you require a GPU accelerator, choose a compatible workbench image (i.e. PyTorch, TensorFlow based Workbench image).

    Create workbench

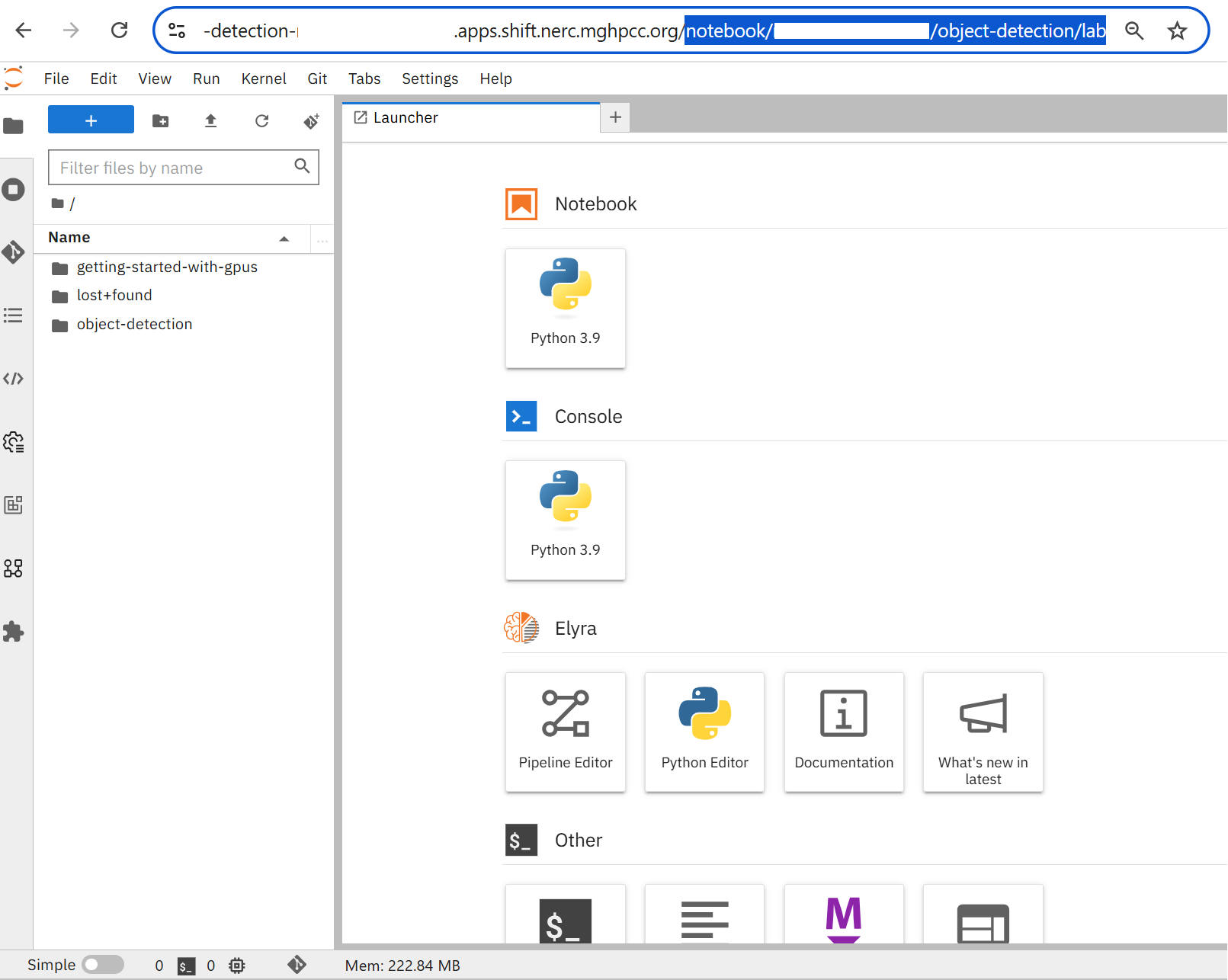

  • Open the workbench and copy the context path from the browser. You will need this (i.e. notebook/<your-project-namespace>/object-detection/lab) later when connecting from VS Code locally.

    Workbench context path

  • Make sure you have the oc CLI tool installed and configured on your local machine following these steps.

  • From terminal on your laptop/desktop login to the NERC OpenShift cluster and switch to your project namespace:

    oc login --token=<your_token> --server=https://api.shift.nerc.mghpcc.org:6443

    For example:

    oc login --token=<your_token> --server=https://api.shift.nerc.mghpcc.org:6443
Logged into "https://api.shift.nerc.mghpcc.org:6443" as "<your_account>" using the token provided.

    Information

    Some users may have access to multiple projects. Run the following command to switch to a specific project space: oc project <your-project-namespace>.

  • Switch to your data science project:

    Please confirm the correct project is being selected by running oc project, as shown below:

    oc project
Using project "<your-project-namespace>" on server "https://api.shift.nerc.mghpcc.org:6443".

  • Start port-forwarding to your workbench pod:

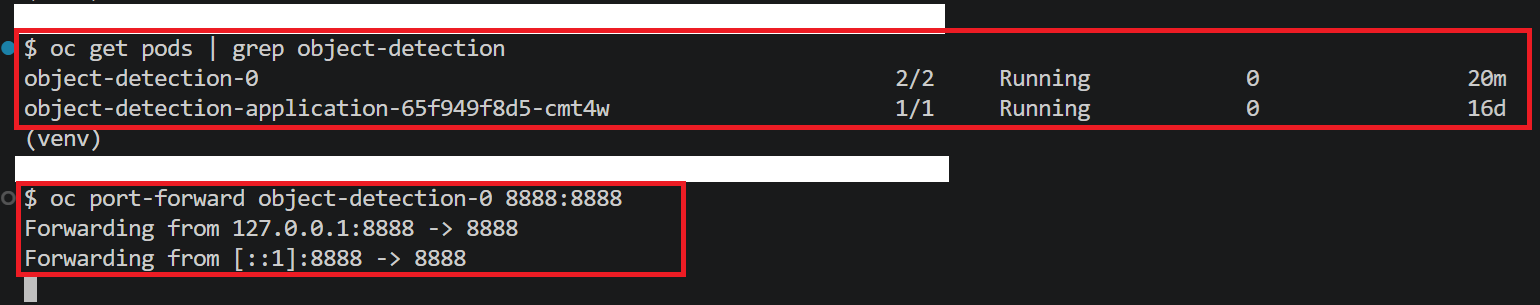

    i. List all the pods in your project. The pod running your workbench is named based on your workbench name in RHOAI. For example, object-detection-0 corresponds to a workbench named Object Detection.

    Port-forward to wb pod

    Note: Capital letters are converted to lowercase, and spaces are replaced with hyphens (-).

    ii. Enable port-forwarding to your workbench pod. You need to forward to the port the pod is listening on. It is usually 8888 for RHOAI workbench. You can find this port from the service in your project with name same as your workbench.

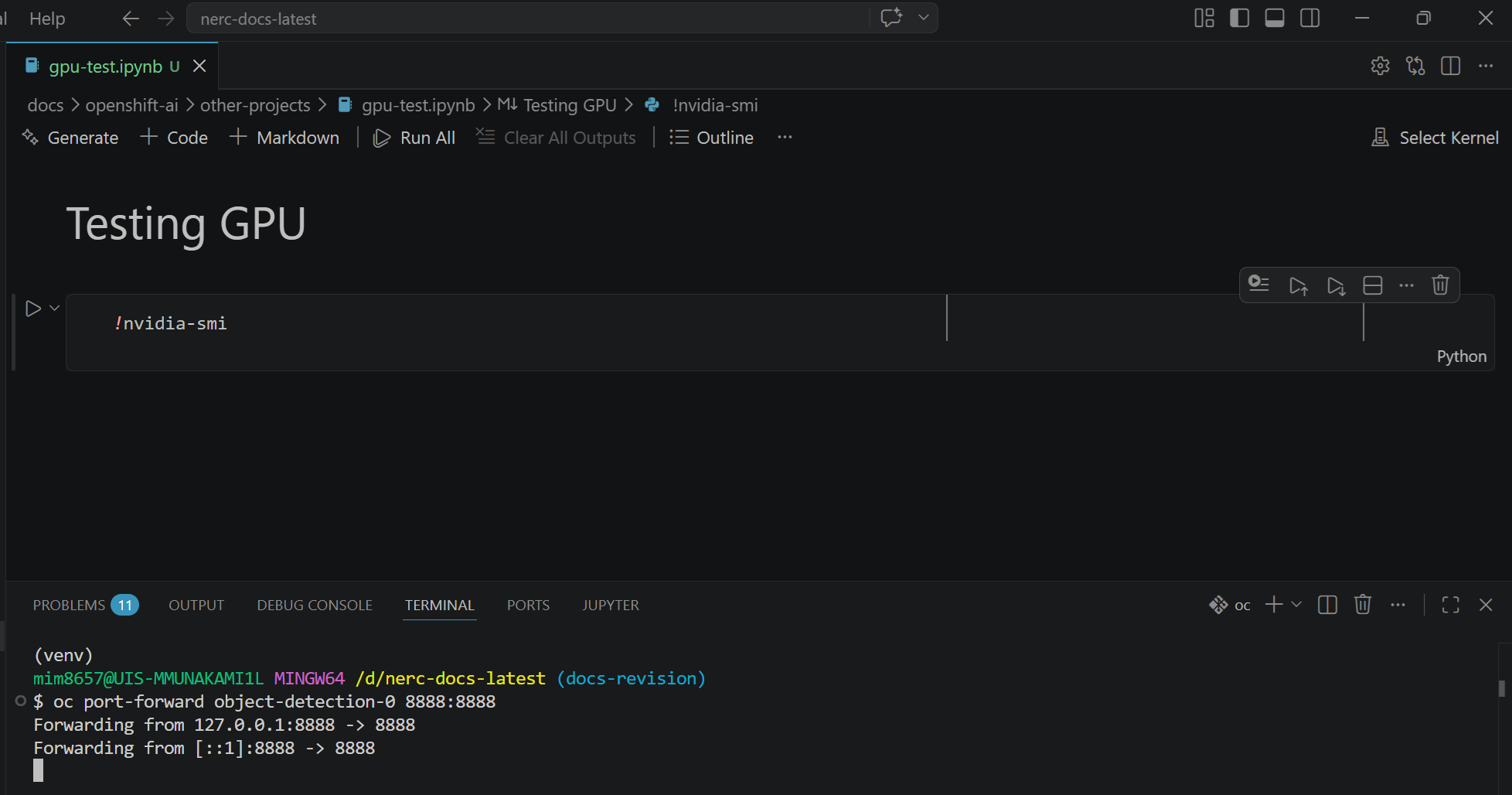

  • Open the Jupyter notebook in your local VS Code

    Jupyter Notebook

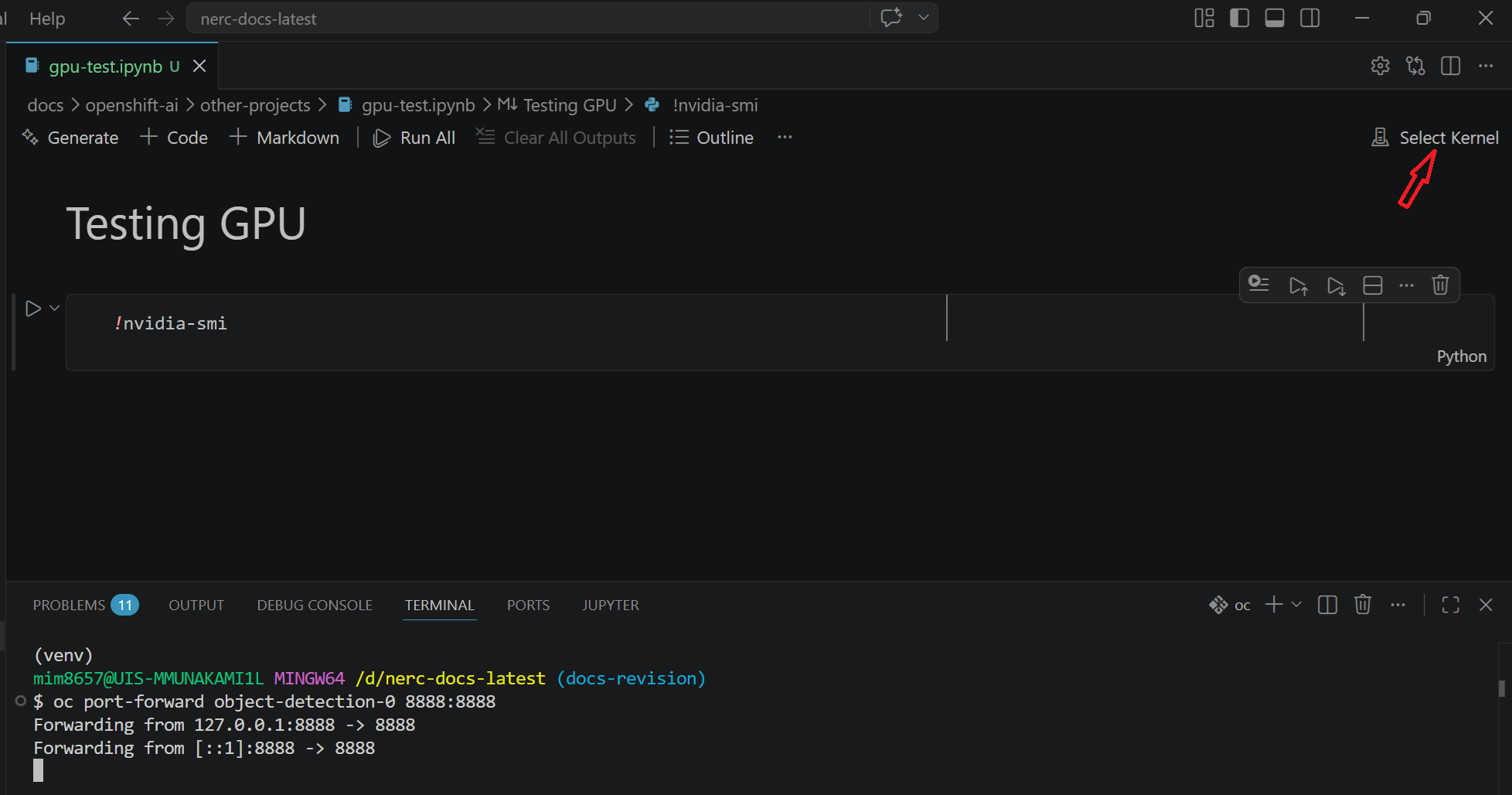

  • From the top right corner of the notebook, click on Select Kernel.

    Select Kernel

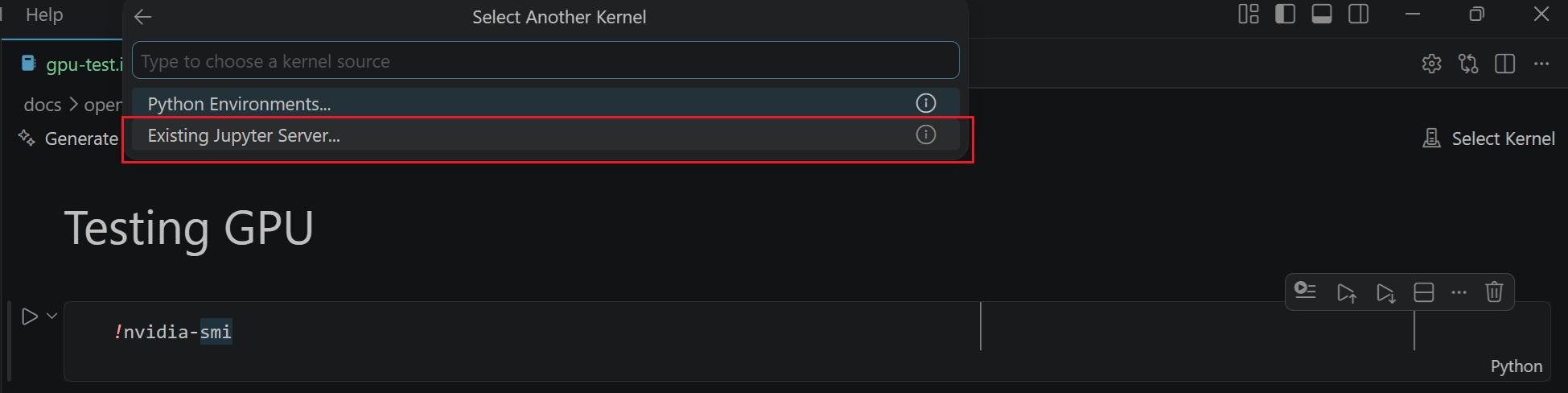

  • From the options, select Existing Jupyter Server and then enter the url as follows:

    Existing Jupyter Server

    localhost [:port] /context-path copied earlier that has the pattern /notebook/ds-project-name/workbench-name/lab. e.g. http://localhost:8888/notebook/<your-project-namespace>/object-detection/lab and then press Enter to confirm.

    Existing Jupyter Server URL

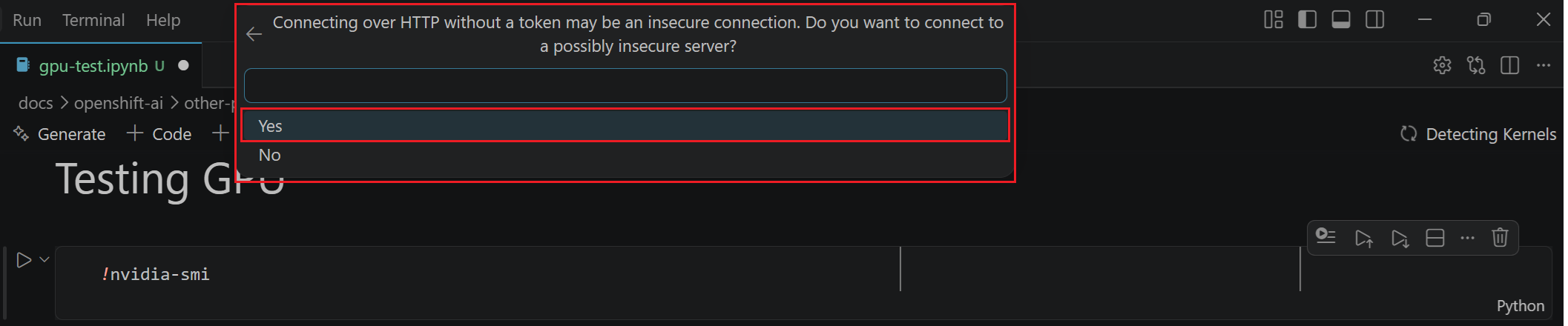

  • A prompt saying: Connecting over HTTP without a token may be an insecure connection. Do you want to connect to a possibly insecure server? is displayed. select Yes.

    Insecure connection prompt

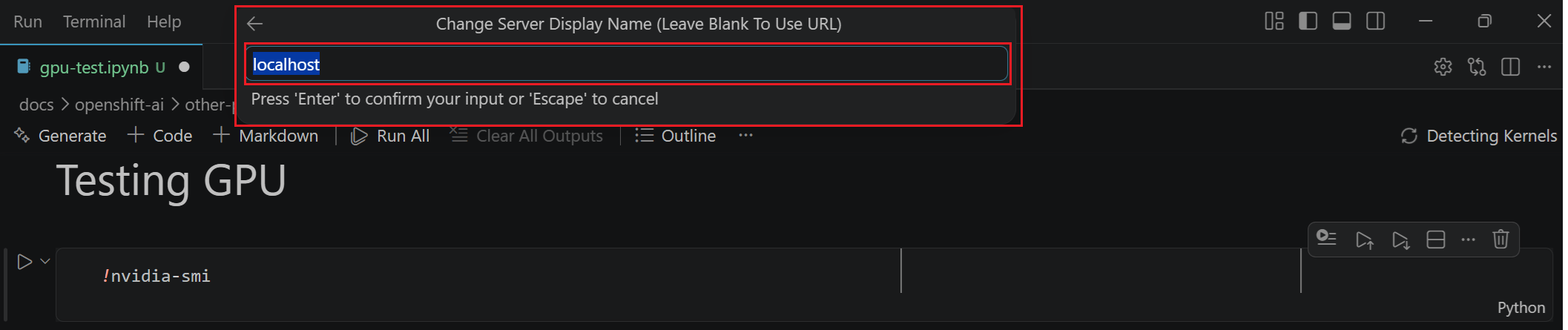

  • Select the prompted Server display name or enter a new one and then press Enter to confirm.

    Server display name

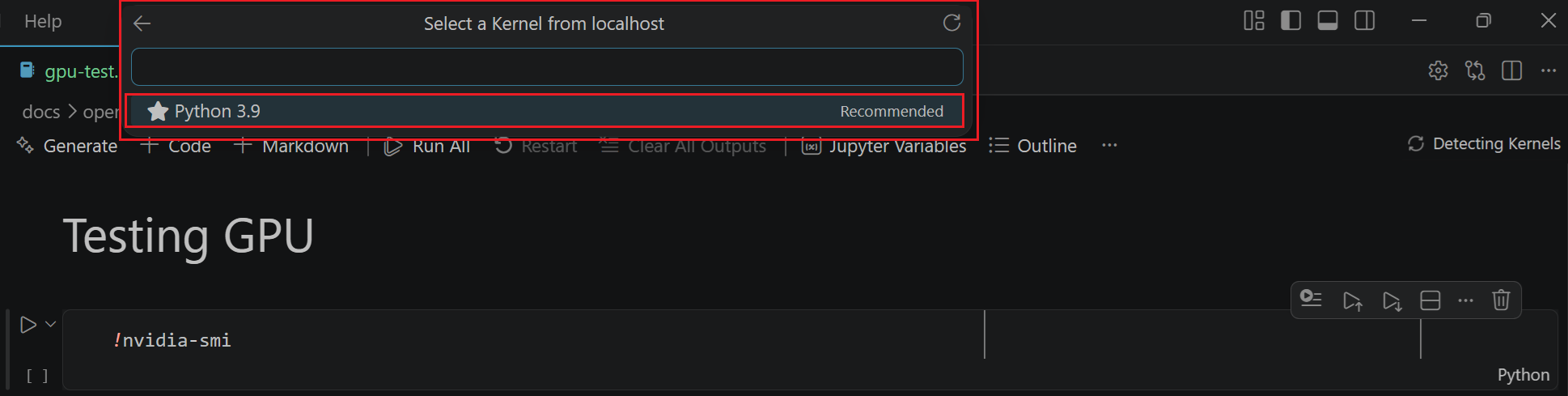

  • A list of available kernels is displayed. Choose Python 3.9.

    Select Kernel

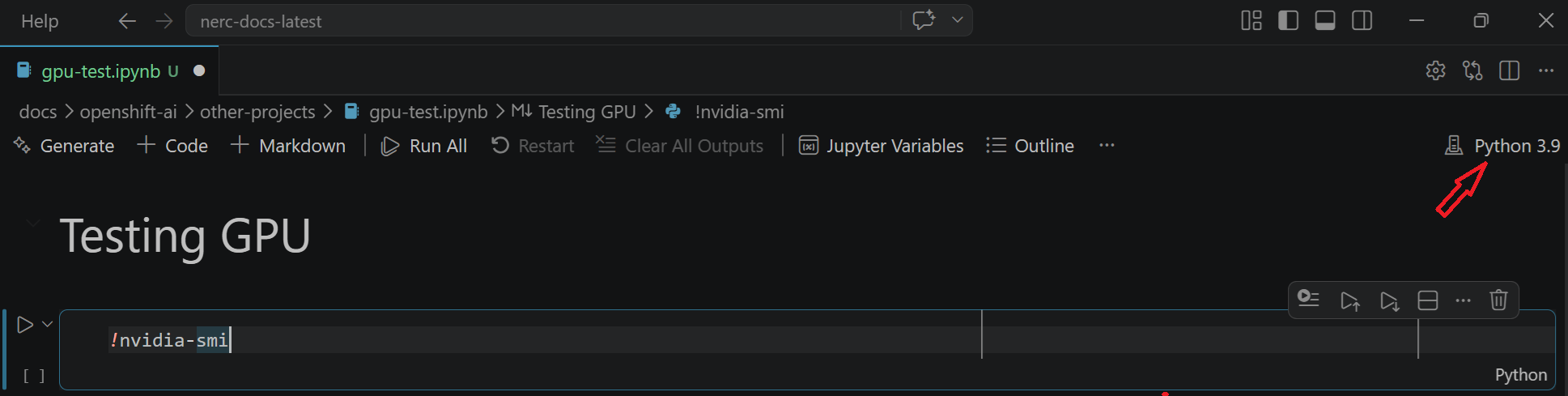

  • You should see the selected Kernel in the top right corner.

    Remote kernel selected

  • The code inside of your notebook will now execute using the remote kernel on the RHOAI workbench pod.

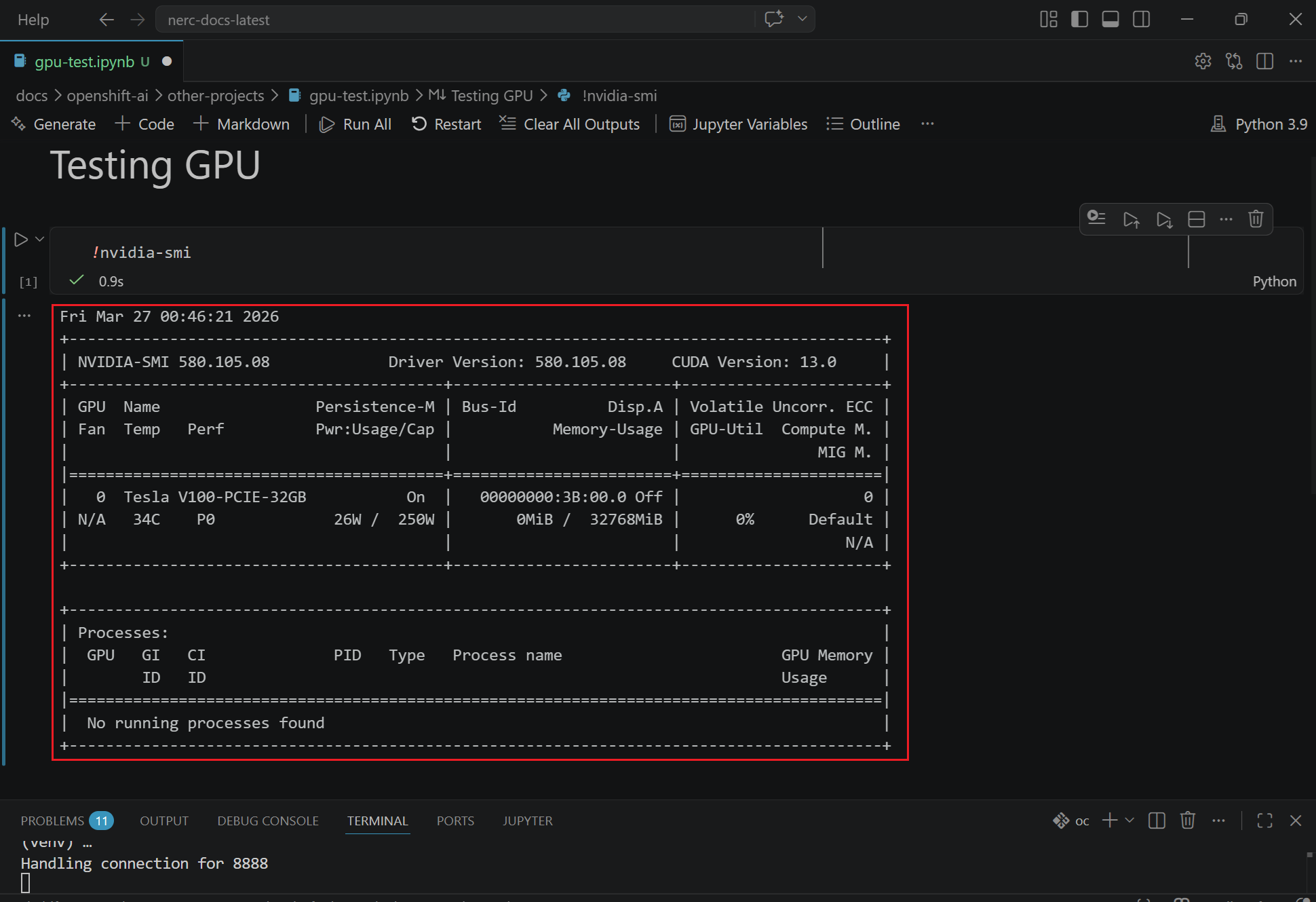

  • If your workbench uses a NVIDIA GPU, you can verify that it is being used in the execution of your notebook by adding a command !nvidia-smi. You should see output similar to the image below.

    Nvidia GPU used

Caveats

  • Jupyter notebooks in your local VS Code environment will not be saved to the workbench.

  • If your notebook uses any files (models, inputdata etc.), they should be present on the workbench and their path should match the path specified in your notebook.
