Credit Card Fraud Detection Application

Here you will use an example fraud detection model to complete the following tasks:

• Train your own fraud detection model.

• Explore a pre-trained fraud detection model by using a Jupyter notebook.

• Deploy the model by using OpenShift AI model serving.

• Refine and train the model by using automated pipelines.

• Deploy the "Credit Card Fraud Detection" application on NERC OpenShift, which connects to the deployed model.

About the example fraud detection model

The example fraud detection model monitors credit card transactions for potential fraudulent activity by analyzing the following details:

• Distance from the cardholder's home and previous transaction.

• Purchase amount, compared to the user's median transaction price.

• Retailer history, indicating whether the merchant has been used before.

• Authentication method, such as PIN usage.

• Transaction type, distinguishing between online and in-person purchases.

Based on the above mentioned factors, the model determines the likelihood of a transaction being fraudulent.

Navigating to the OpenShift AI dashboard

Please follow these steps to access the NERC OpenShift AI dashboard.

Setting up your Data Science Project in the NERC RHOAI

Prerequisites:

• Before proceeding, confirm that you have an active GPU quota that has been approved for your current NERC OpenShift Allocation through NERC ColdFront. Read more about How to Access GPU Resources on NERC OpenShift Allocation.

1. Storing data with connections

For this tutorial, you will need two S3-compatible object storage buckets, such as NERC OpenStack Container (Ceph), MinIO, or AWS S3. You can either use your own storage buckets or run a provided script that automatically creates the following local MinIO storage buckets:

• my-storage – Use this bucket to store your models and data. You can reuse this bucket and its connection for notebooks and model servers.

• pipeline-artifacts – Use this bucket to store pipeline artifacts. A pipeline artifacts bucket is required when setting up a pipeline server. For clarity, this tutorial keeps it separate from the first storage bucket, as it is considered best practice to use dedicated storage buckets for different purposes.

You must also create a connection to each storage bucket. For this tutorial, you have two options depending on whether you want to use your own storage buckets or a script to create local MinIO storage buckets:

1.1. Using your own S3-compatible storage buckets

Procedure:

Manually create two connections: My Storage and Pipeline Artifacts by following How to create a data connection.

Verification:

You should see two connections listed under your RHOAI Dashboard My Storage and Pipeline Artifacts as shown below:

1.2. Using a script to set up local MinIO storage

Alternatively, if you want to run a script that automates the setup by completing the following tasks:

• Deploys a MinIO instance in your project namespace.

• Creates two storage buckets within the MinIO instance.

• Generates a random user ID and password for the MinIO instance.

• Establishes two connections in your project - one for each bucket - using the same generated credentials.

• Installs all required network policies.

Procedure:

i. From the OpenShift AI dashboard, you can return to OpenShift Web Console by using the application launcher icon (the black-and-white icon that looks like a grid), and choosing the "OpenShift Console" as shown below:

ii. From your NERC's OpenShift Web Console, navigate to your project corresponding to the NERC RHOAI Data Science Project and select the "Import YAML" button, represented by the "+" icon in the top navigation bar as shown below:

iii. Verify that you selected the correct project.

iv. Copy the following code and paste it into the Import YAML editor.

Local MinIO storage Creation YAML Script

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: demo-setup
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: demo-setup-edit
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: edit
subjects:
- kind: ServiceAccount
  name: demo-setup
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio
spec:
  ports:
  - name: api
    port: 9000
    targetPort: api
  - name: console
    port: 9090
    targetPort: 9090
  selector:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio
spec:
  replicas: 1
  selector:
    matchLabels:
      app: minio
      app.kubernetes.io/component: minio
      app.kubernetes.io/instance: minio
      app.kubernetes.io/name: minio
      app.kubernetes.io/part-of: minio
      component: minio
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: minio
        app.kubernetes.io/component: minio
        app.kubernetes.io/instance: minio
        app.kubernetes.io/name: minio
        app.kubernetes.io/part-of: minio
        component: minio
    spec:
      containers:
      - args:
        - minio server /data --console-address :9090
        command:
        - /bin/bash
        - -c
        envFrom:
        - secretRef:
            name: minio-root-user
        image: quay.io/minio/minio:latest
        name: minio
        ports:
        - containerPort: 9000
          name: api
          protocol: TCP
        - containerPort: 9090
          name: console
          protocol: TCP
        resources:
          limits:
            cpu: "2"
            memory: 2Gi
          requests:
            cpu: 200m
            memory: 1Gi
        volumeMounts:
        - mountPath: /data
          name: minio
      volumes:
      - name: minio
        persistentVolumeClaim:
          claimName: minio
      - emptyDir: {}
        name: empty
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: create-ds-connections
spec:
  selector: {}
  template:
    spec:
      containers:
      - args:
        - -ec
        - |-
          echo -n 'Waiting for minio route'
          while ! oc get route minio-s3 2>/dev/null | grep -qF minio-s3; do
            echo -n .
            sleep 5
          done; echo

          echo -n 'Waiting for minio root user secret'
          while ! oc get secret minio-root-user 2>/dev/null | grep -qF minio-root-user; do
            echo -n .
            sleep 5
          done; echo

          MINIO_ROOT_USER=$(oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_USER}}')
          MINIO_ROOT_PASSWORD=$(oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_PASSWORD}}')
          MINIO_HOST=https://$(oc get route minio-s3 -o template --template '{{.spec.host}}')

          cat << EOF | oc apply -f-
          apiVersion: v1
          kind: Secret
          metadata:
            annotations:
              opendatahub.io/connection-type: s3
              openshift.io/display-name: My Storage
            labels:
              opendatahub.io/dashboard: "true"
              opendatahub.io/managed: "true"
            name: aws-connection-my-storage
          data:
            AWS_ACCESS_KEY_ID: ${MINIO_ROOT_USER}
            AWS_SECRET_ACCESS_KEY: ${MINIO_ROOT_PASSWORD}
          stringData:
            AWS_DEFAULT_REGION: us-east-1
            AWS_S3_BUCKET: my-storage
            AWS_S3_ENDPOINT: ${MINIO_HOST}
          type: Opaque
          EOF
          cat << EOF | oc apply -f-
          apiVersion: v1
          kind: Secret
          metadata:
            annotations:
              opendatahub.io/connection-type: s3
              openshift.io/display-name: Pipeline Artifacts
            labels:
              opendatahub.io/dashboard: "true"
              opendatahub.io/managed: "true"
            name: aws-connection-pipeline-artifacts
          data:
            AWS_ACCESS_KEY_ID: ${MINIO_ROOT_USER}
            AWS_SECRET_ACCESS_KEY: ${MINIO_ROOT_PASSWORD}
          stringData:
            AWS_DEFAULT_REGION: us-east-1
            AWS_S3_BUCKET: pipeline-artifacts
            AWS_S3_ENDPOINT: ${MINIO_HOST}
          type: Opaque
          EOF
        command:
        - /bin/bash
        image: image-registry.openshift-image-registry.svc:5000/openshift/tools:latest
        imagePullPolicy: IfNotPresent
        name: create-ds-connections
      restartPolicy: Never
      serviceAccount: demo-setup
      serviceAccountName: demo-setup
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: create-minio-buckets
spec:
  selector: {}
  template:
    metadata:
      labels:
        app.kubernetes.io/component: minio
        app.kubernetes.io/instance: minio
        app.kubernetes.io/name: minio
        app.kubernetes.io/part-of: minio
        component: minio
    spec:
      containers:
      - args:
        - -ec
        - |-
          oc get secret minio-root-user
          env | grep MINIO
          cat << 'EOF' | python3
          import boto3, os

          s3 = boto3.client("s3",
                            endpoint_url="http://minio:9000",
                            aws_access_key_id=os.getenv("MINIO_ROOT_USER"),
                            aws_secret_access_key=os.getenv("MINIO_ROOT_PASSWORD"))
          bucket = 'pipeline-artifacts'
          print('creating pipeline-artifacts bucket')
          if bucket not in [bu["Name"] for bu in s3.list_buckets()["Buckets"]]:
            s3.create_bucket(Bucket=bucket)
          bucket = 'my-storage'
          print('creating my-storage bucket')
          if bucket not in [bu["Name"] for bu in s3.list_buckets()["Buckets"]]:
            s3.create_bucket(Bucket=bucket)
          EOF
        command:
        - /bin/bash
        envFrom:
        - secretRef:
            name: minio-root-user
        image: image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/s2i-generic-data-science-notebook:2023.2
        imagePullPolicy: IfNotPresent
        name: create-buckets
      initContainers:
      - args:
        - -ec
        - |-
          echo -n 'Waiting for minio root user secret'
          while ! oc get secret minio-root-user 2>/dev/null | grep -qF minio-root-user; do
          echo -n .
          sleep 5
          done; echo

          echo -n 'Waiting for minio deployment'
          while ! oc get deployment minio 2>/dev/null | grep -qF minio; do
            echo -n .
            sleep 5
          done; echo
          oc wait --for=condition=available --timeout=60s deployment/minio
          sleep 10
        command:
        - /bin/bash
        image: image-registry.openshift-image-registry.svc:5000/openshift/tools:latest
        imagePullPolicy: IfNotPresent
        name: wait-for-minio
      restartPolicy: Never
      serviceAccount: demo-setup
      serviceAccountName: demo-setup
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: create-minio-root-user
spec:
  backoffLimit: 4
  template:
    metadata:
      labels:
        app.kubernetes.io/component: minio
        app.kubernetes.io/instance: minio
        app.kubernetes.io/name: minio
        app.kubernetes.io/part-of: minio
        component: minio
    spec:
      containers:
      - args:
        - -ec
        - |-
          if [ -n "$(oc get secret minio-root-user -oname 2>/dev/null)" ]; then
            echo "Secret already exists. Skipping." >&2
            exit 0
          fi
          genpass() {
              < /dev/urandom tr -dc _A-Z-a-z-0-9 | head -c"${1:-32}"
          }
          id=$(genpass 16)
          secret=$(genpass)
          cat << EOF | oc apply -f-
          apiVersion: v1
          kind: Secret
          metadata:
            name: minio-root-user
          type: Opaque
          stringData:
            MINIO_ROOT_USER: ${id}
            MINIO_ROOT_PASSWORD: ${secret}
          EOF
        command:
        - /bin/bash
        image: image-registry.openshift-image-registry.svc:5000/openshift/tools:latest
        imagePullPolicy: IfNotPresent
        name: create-minio-root-user
      restartPolicy: Never
      serviceAccount: demo-setup
      serviceAccountName: demo-setup
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio-console
spec:
  port:
    targetPort: console
  tls:
    insecureEdgeTerminationPolicy: Redirect
    termination: edge
  to:
    kind: Service
    name: minio
    weight: 100
  wildcardPolicy: None
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio-s3
spec:
  port:
    targetPort: api
  tls:
    insecureEdgeTerminationPolicy: Redirect
    termination: edge
  to:
    kind: Service
    name: minio
    weight: 100
  wildcardPolicy: None

v. Click Create.

Verification:

i. Once Resource is successfully created, you will see a "Resources successfully created" message and the following resources listed:

ii. Once the deployment is successful, you will be able to see all resources are created and grouped under "minio" application grouping on the Topology View menu, as shown below:

Once successfully initiated, click on the minio deployment and select the "Resources" tab to review created Pods, Services, and Routes.

Please note the minio-console route URL by navigating to the "Routes" section under the Location path. When you click on the minio-console route URL, it will open the MinIO web console that looks like below:

MinIO Web Console Login Credential

The Username and Password for the MinIO web console can be retrieved from the Data Connection's Access key and Secret key.

iii. Navigate back to the OpenShift AI dashboard

a. Select Data Science Projects and then click the name of your project, i.e. Fraud detection.

b. Click Data connections. You should see two connections listed: My Storage and Pipeline Artifacts as shown below:

c. Verify the buckets are created on the MinIO Web Console:

• Click on any data connection from the list that was created and then click the action menu (⋮) at the end of the selected data connection row. Choose "Edit data connection" from the dropdown menu. This will open a pop-up window as shown below:



• Note both Secret key (by clicking eye icon near the end of the textbox) and Access key.

  Alternatively, Run oc commands to get Secret key and Access key

  Alternatively, you can run the following oc commands:

  i. To get Secret key run:

  oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_USER}}' | base64 --decode

  ii. And to get Access key run:

  oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_PASSWORD}}' | base64 --decode

• Return to the MinIO Web Console using the provided URL. Enter the Access Key as the Username and the Secret Key as the Password. This will open the Object Browser, where you should verify that both buckets: my-storage and pipeline-artifacts are visible as shown below:



Alternatively, Running a script to install local MinIO object storage

Alternatively, you can run a script to install local object storage buckets and create data connections using the OpenShift CLI (oc). For that, you need to install and configure the OpenShift CLI by following the setup instructions. Once the OpenShift CLI is set up, execute the following command to install MinIO object storage along with local MinIO storage buckets and necessary data connections:

oc apply -f https://raw.githubusercontent.com/nerc-project/fraud-detection/main/setup/setup-s3.yaml

Important Note

The script is based on a guide for deploying MinIO. The MinIO-based Object Storage that the script creates is not meant for production usage.

2. Enabling data science pipelines

In this section, you prepare your workshop environment so that you can use data science pipelines.

Procedure:

i. From the OpenShift AI dashboard, click the Pipelines tab.

ii. Click Configure pipeline server.

iii. In the Configure pipeline server form, in the Access key field next to the key icon, click the dropdown menu and then click Pipeline Artifacts to populate the Configure pipeline server form with credentials for the connection.

iv. Leave the database configuration as the default.

v. Click Configure pipeline server.

vi. Wait until the loading spinner disappears and Start by importing a pipeline is displayed.

Verification:

a. Navigate to the Pipelines tab for the project.

b. Next to Import pipeline, click the action menu (⋮) and then select View pipeline server configuration.

An information box opens and displays the object storage connection information for the pipeline server. as shown below:

3. Creating a workbench and a notebook

Creating a workbench and selecting a notebook image

Procedure:

Prepare your Jupyter notebook server for using a GPU, you need to have:

Select the correct data science project and create workbench, see Populate the data science project for more information.

Please ensure that you start your Jupyter notebook server with options as depicted in the following configuration screen. This screen provides you with the opportunity to select a notebook image and configure its options, including the Accelerator and Number of accelerators (GPUs).

For our example project, let's name it "Fraud detection". We'll select the TensorFlow image with Recommended Version (selected by default), choose a Deployment size of Small, choose Accelerator of NVIDIA V100 GPU, Number of accelerators as 1, and allocate a Cluster storage space of 20GB.

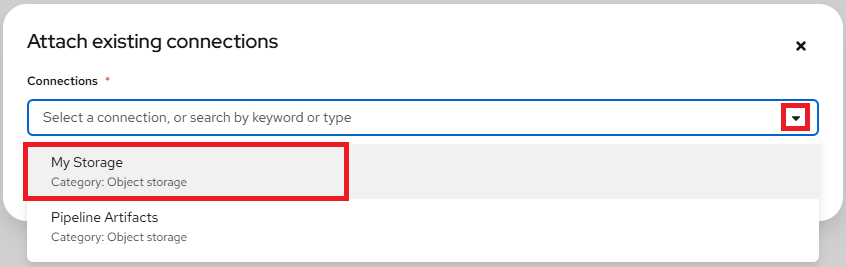

Here, you will use Environment Variables to specify the Key/Value pairs related to the S3-compatible object storage bucket for storing your model.

To add Environment variables please follow the following steps:

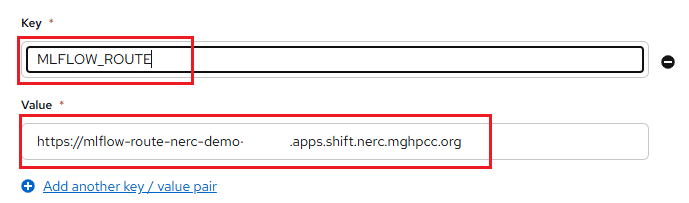

i. Click on "Add variable".

ii. Select "Config Map" from the dropdown for the environment variable type.

iii. Choose "Key / Value" and enter the following keys along with their corresponding values, which you have retrieved while "Editing data connection":

Environment Variables:

Key: AWS_ACCESS_KEY_ID
Value: <Access key>

Key: AWS_SECRET_ACCESS_KEY
Value: <Secret key>

Key: AWS_S3_ENDPOINT
Value: <Endpoint>

Key: AWS_DEFAULT_REGION
Value: <Region>

Key: AWS_S3_BUCKET
Value: <Bucket>

Alternatively, Running oc commands

Alternatively, you can run the following oc commands:

i. To get Secret key run:

oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_USER}}' | base64 --decode

ii. And to get Access key run:

oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_PASSWORD}}' | base64 --decode

iii. And to get Endpoint run:

oc get route minio-s3 -o template --template '{{.spec.host}}'

You need to add https:// in the front of the endpoint host url.

Running Workbench without GPU

If you do not require GPU resources for your task, you can leave the Accelerator field set to its default None selection.

Verification:

If this procedure is successful, you have started your Jupyter notebook server. When your workbench is ready, the status will change from Starting to Running and you can select "Open" to go to your environment:

Note

If you made a mistake, you can edit the workbench to make changes. Please make sure your toggle the Running status of your workbench to Stopped prior clicking the action menu (⋮) at the end of the selected workbench row as shown below:

Once you successfully authenticate you should see the NERC RHOAI JupyterLab Web Interface as shown below:

It's pretty empty right now, though. On the left side of the navigation pane, locate the Name explorer panel. This panel is where you can create and manage your project directories.

Learn More About Working with Notebooks

For detailed guidance on using notebooks on NERC RHOAI JupyterLab, please refer to this documentation.

Importing the tutorial files into the Jupyter environment

Bring the content of this tutorial inside your Jupyter environment:

On the toolbar, click the Git Clone icon:

Enter the following tutorial Git https URL: https://github.com/nerc-project/fraud-detection

Check the Include submodules option, and then click Clone.

In the file browser, double-click the newly-created fraud-detection folder.

Verification:

In the file browser, you should see the notebooks that you cloned from Git.

Training a model

In your Jupyter notebook environment, within the root folder path of fraud-detection, find the Jupyter notebook file 1_experiment_train.ipynb that demonstrates how to train a model within the NERC RHOAI. Please follow the instructions directly in the notebook environment. The instructions guide you through some simple data exploration, experimentation, and model training tasks. To run it you need to double click it and execute the "Run" button to run all notebook cells at once.

Very Important: Ensure Your Notebook is Updated

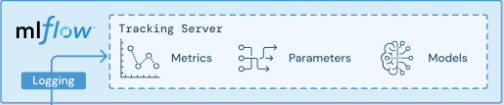

In the 1_experiment_train.ipynb Jupyter notebook file, find the "Monitor the Training" section where you can use ClearML to monitor your model training process.

Please register your account at https://app.clear.ml/login. After successfully registering your account, get Application API Credentials at: https://app.clear.ml/settings/workspace-configuration.

Please update CLEARML_API_ACCESS_KEY and CLEARML_API_SECRET_KEY with your own ClearML Application API credentials.

Verification:

This process will take some time to complete. At the end, it will generate and save the model model.onnx within the models/fraud/1/ folder path of fraud-detection.

4. Preparing a model for deployment

Procedure:

In your JupyterLab environment, open the notebook file 2_save_model.ipynb. Follow the instructions in the notebook to store the model and save it in the portable ONNX format.

Verification:

After completing the notebook steps, verify that the models/fraud/1/model.onnx file is stored in the object storage corresponding to the My Storage data connection. Once saved, the model is now ready for use by your model server.

5. Deploying and testing a model

Deploying a model

Now that the model is stored and saved in the portable ONNX format, you can deploy it as an API using an OpenShift AI Model Server.

Deploying a model on a multi-model server

NERC RHOAI multi-model servers can host multiple models simultaneously. You can create a new model server and deploy your model to it.

Procedure:

In the OpenShift AI dashboard, navigate to the data science project details page and click the Models and model servers tab.

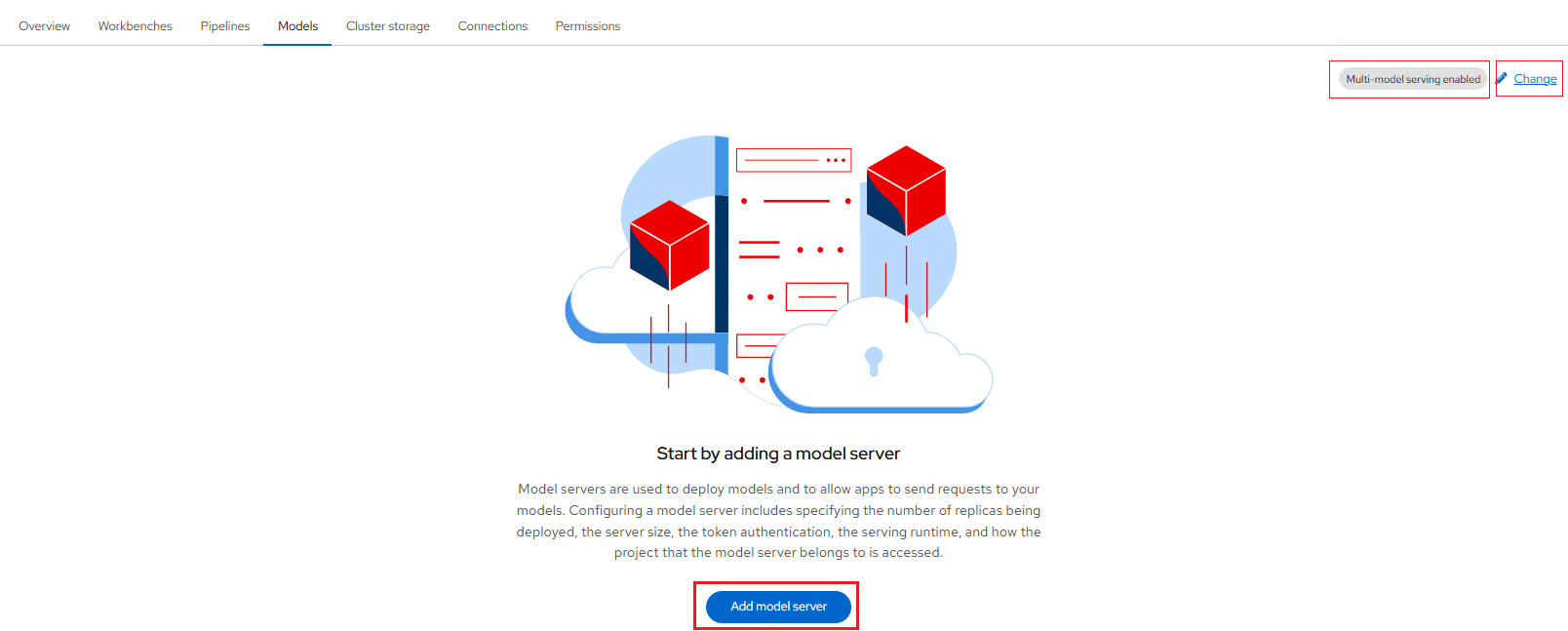

Select Add server as shown below:

In the pop-up window that appears, depicted as shown below, you can specify the following details:

For Model server name, type a name, for example Model Server.

For Serving runtime, select OpenVINO Model Server.

Leave the other fields with the default settings.

Click Add.

In the Models and model servers list, next to the new model server, click Deploy model.

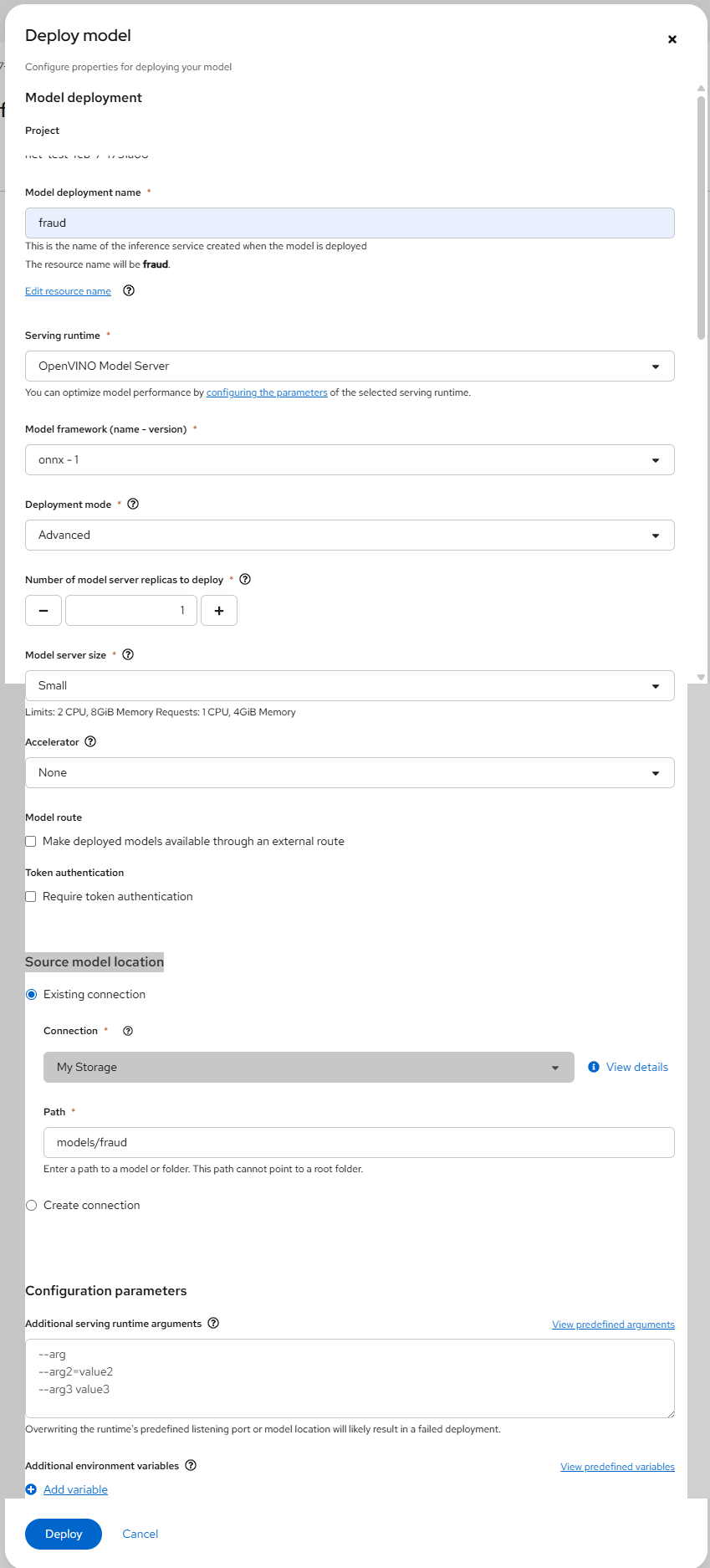

In the form, provide the following values:

For Model deployment name, type fraud.

For Model framework (name - version), select onnx-1.

For Existing connection, select My Storage.

Type the path that leads to the version folder that contains your model file: models/fraud

Leave the other fields with the default settings.

Click Deploy.

Verification:

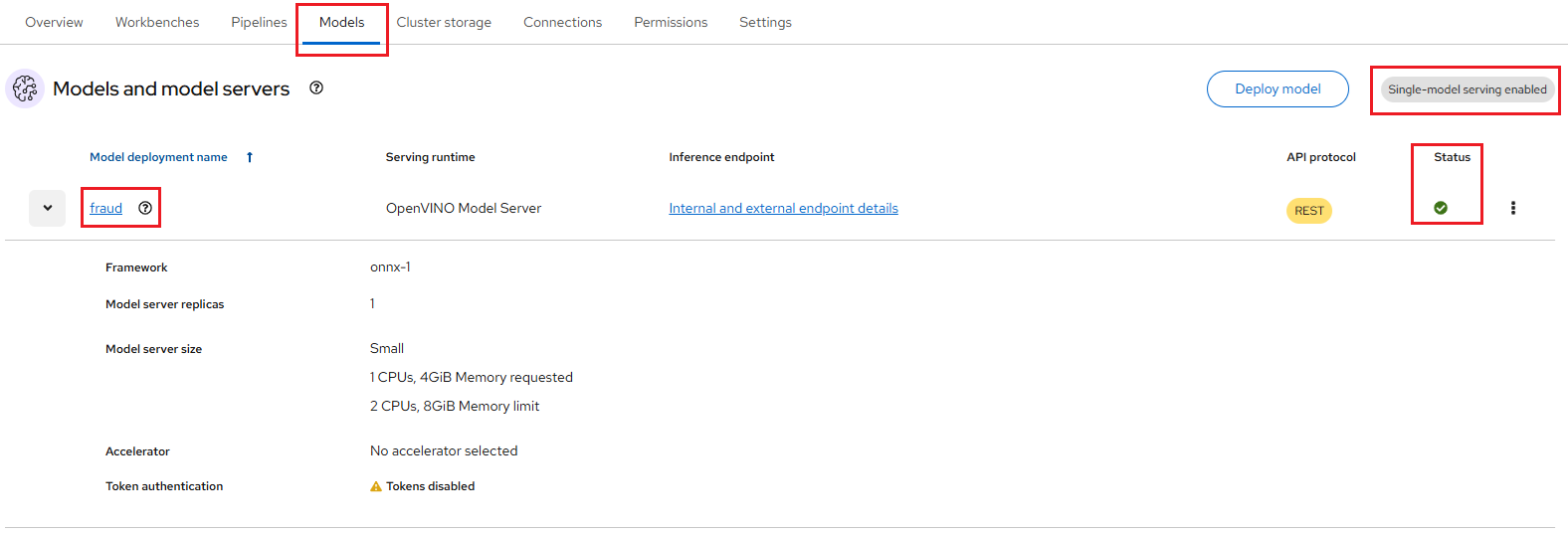

When you return to the Deployed models page, you will see your newly deployed model. You should click on the 1 on the Deployed models tab to see details. Notice the loading symbol under the Status section. When the model has finished deploying, the status icon will be a green checkmark indicating the model deployment is complete as shown below:

Testing the model API

Now that you've deployed the model, you can test its API endpoints.

Procedure:

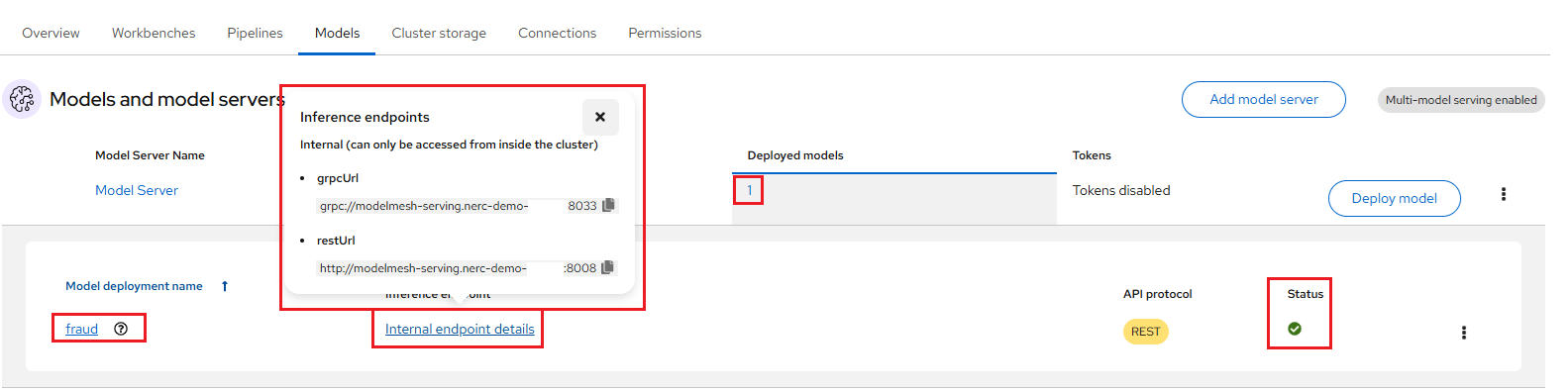

• In the OpenShift AI dashboard, navigate to the project details page and click the Models tab.

• Take note of the model's Inference endpoint URL. You need this information when you test the model API.



  The Inference endpoint field contains an Internal Service link, click the link to open a popup that shows the URL details, and then take note of the grpcUrl and restUrl values.

• Return to the Jupyter notebook environment and test your new inference endpoints.

  Follow the instructions in 3_rest_requests_multi_model.ipynb to make a REST API call. Be sure to update the rest_url with your own restUrl value (as noted above).

  To make a gRPC API call, follow the instructions in 4_grpc_requests_multi_model.ipynb, updating the grpc_host with your own grpcUrl value (as noted above).

6. Implementing pipelines

Important Note

If you create your workbench before the pipeline server is ready, your workbench will not be able to submit pipelines to it. If you configured the pipeline server after you created your workbench, you need to stop the workbench and then started your workbench.

Automating workflows with data science pipelines

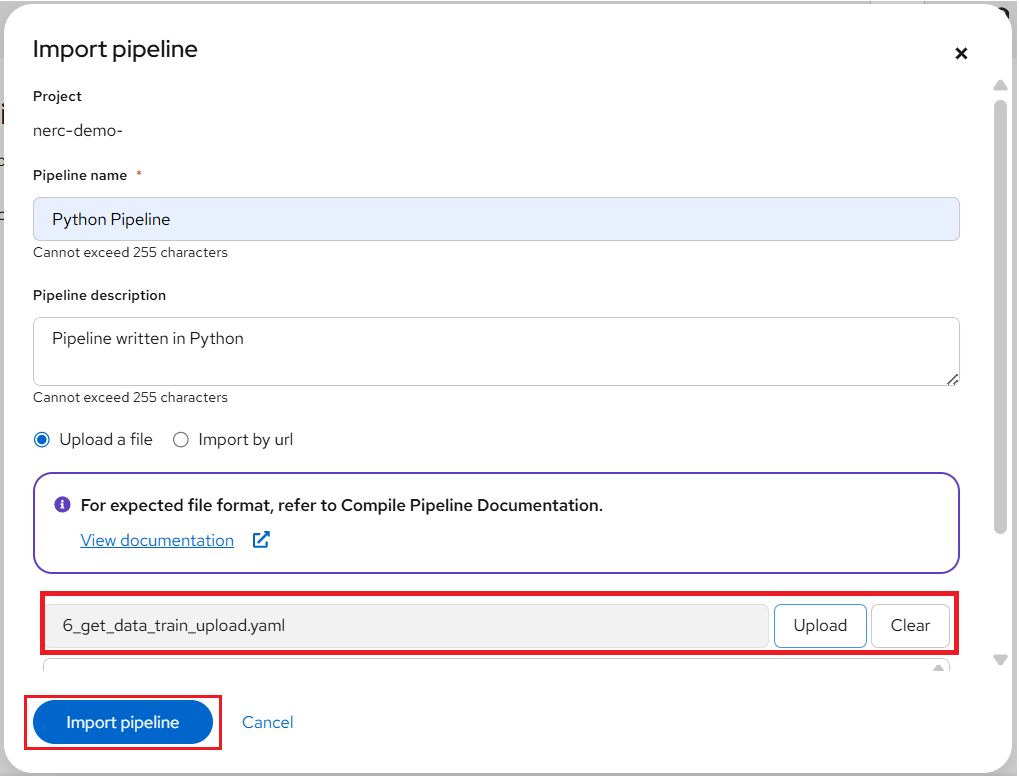

In previous sections of this tutorial, you used a notebook to train and save your model. Alternatively, you can automate these tasks using Red Hat OpenShift AI pipelines.

Pipelines allow you to automate the execution of multiple notebooks and Python scripts. By using pipelines, you can run long training jobs or schedule model retraining without manually executing notebooks.

In this section, you will create a simple pipeline using the GUI pipeline editor.

This pipeline will:

• Use the same notebook from the previous sections to train the model.

• Save the trained model to S3 storage bucket.

Your completed pipeline should resemble the one in the 5_Train_Save.pipeline file.

Note

To explore the pipeline editor, follow the steps in the next procedure to create your own pipeline. Alternatively, you can skip the procedure and instead feel free to run and use the provided 5_Train_Save.pipeline file.

Create a pipeline

i. Open your workbench's JupyterLab environment. If the launcher is not visible, click + to open it.

ii. Click Pipeline Editor.

You've created a blank pipeline.

iii. Set the default runtime image for when you run your notebook or Python code.

a. In the pipeline editor, click Open Panel.

b. Select the Pipeline Properties tab.

c. In the Pipeline Properties panel, scroll down to Generic Node Defaults and Runtime Image. Set the value to TensorFlow with CUDA and Python 3.9 (UBI9).

iv. Save the pipeline.

Add nodes to your pipeline

Add some steps, or nodes in your pipeline. Your two nodes will use the 1_experiment_train.ipynb and 2_save_model.ipynb notebooks.

i. From the file-browser panel, drag the 1_experiment_train.ipynb and 2_save_model.ipynb notebooks onto the pipeline canvas.

ii. Click the output port of 1_experiment_train.ipynb and drag a connecting line to the input port of 2_save_model.ipynb.

iii. Save the pipeline.

Specify the training file as a dependency

Set node properties to specify the training file as a dependency.

Very Important

If you don't set this file dependency, the file won't be included in the node when it runs and the training job would fail.

i. Click the 1_experiment_train.ipynb node.

ii. In the Properties panel, click the Node Properties tab.

iii. Scroll down to the File Dependencies section and then click Add.

iv. Set the value to data/*.csv which contains the data to train your model.

v. Select the Include Subdirectories option.

vi. Save the pipeline.

Create and store the ONNX-formatted output file

In node 1, the notebook creates the models/fraud/1/model.onnx file. In node 2, the notebook uploads that file to the S3 storage bucket. You must set models/fraud/1/model.onnx file as the output file for both nodes.

i. Select node 1.

ii. Select the Node Properties tab.

iii. Scroll down to the Output Files section, and then click Add.

iv. Set the value to models/fraud/1/model.onnx.

v. Repeat steps 2-4 for node 2.

vi. Save the pipeline.

Configure the connection to the S3 storage bucket

In node 2, the notebook uploads the model to the S3 storage bucket.

You must set the S3 storage bucket keys by using the secret created by the My Storage connection that you set up in the Storing data with connections section of this tutorial.

You can use this secret in your pipeline nodes without having to save the information in your pipeline code. This is important, for example, if you want to save your pipelines - without any secret keys - to source control.

The secret is named aws-connection-my-storage.

Note

If you named your connection something other than "My Storage", you can obtain the secret name in the OpenShift AI dashboard by hovering over the help (?) icon in the Connections tab.

The aws-connection-my-storage secret includes the following fields:

AWS_ACCESS_KEY_ID

AWS_DEFAULT_REGION

AWS_S3_BUCKET

AWS_S3_ENDPOINT

AWS_SECRET_ACCESS_KEY

You must set the secret name and key for each of these fields.

Procedure:

i. Remove any pre-filled environment variables.

a. Select node 2, and then select the Node Properties tab.

Under Additional Properties, note that some environment variables have been pre-filled. The pipeline editor inferred that you need them from the notebook code.

Since you don't want to save the value in your pipelines, remove all of these environment variables.

b. Click Remove for each of the pre-filled environment variables.

ii. Add the S3 bucket and keys by using the Kubernetes secret.

a. Under Kubernetes Secrets, click Add.

b. Enter the following values and then click Add.

• Environment Variable: AWS_ACCESS_KEY_ID

• Secret Name: aws-connection-my-storage

• Secret Key: AWS_ACCESS_KEY_ID

iii. Repeat Step 2 for each of the following Kubernetes secrets:

• Environment Variable: AWS_SECRET_ACCESS_KEY

• Secret Name: aws-connection-my-storage

• Secret Key: AWS_SECRET_ACCESS_KEY

• Environment Variable: AWS_S3_ENDPOINT

• Secret Name: aws-connection-my-storage

• Secret Key: AWS_S3_ENDPOINT

• Environment Variable: AWS_DEFAULT_REGION

• Secret Name: aws-connection-my-storage

• Secret Key: AWS_DEFAULT_REGION

• Environment Variable: AWS_S3_BUCKET

• Secret Name: aws-connection-my-storage

• Secret Key: AWS_S3_BUCKET

iv.Select File → Save Pipeline As to save and rename the .pipeline file. For example, rename it to My Train Save.pipeline.

Run the Pipeline

You can use your own newly created pipeline or the pipeline in the provided 5 Train Save.pipeline file.

Procedure:

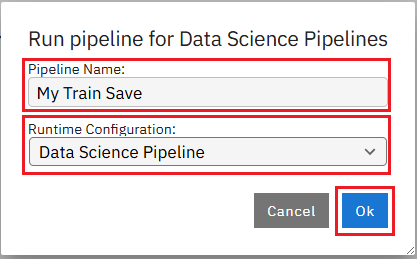

i. Click the play button in the toolbar of the pipeline editor.

ii. Enter a name for your pipeline.

iii. Verify that the Runtime Configuration: is set to Data Science Pipeline.

iv. Click OK.

Troubleshooting Help

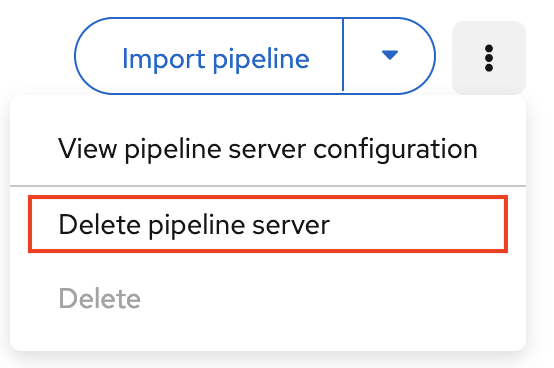

If you see an error message stating that "no runtime configuration for Data Science Pipeline is defined", you might have created your workbench before the pipeline server was available. If you configured the pipeline server after you created your workbench, you need to stop the workbench and then started your workbench.

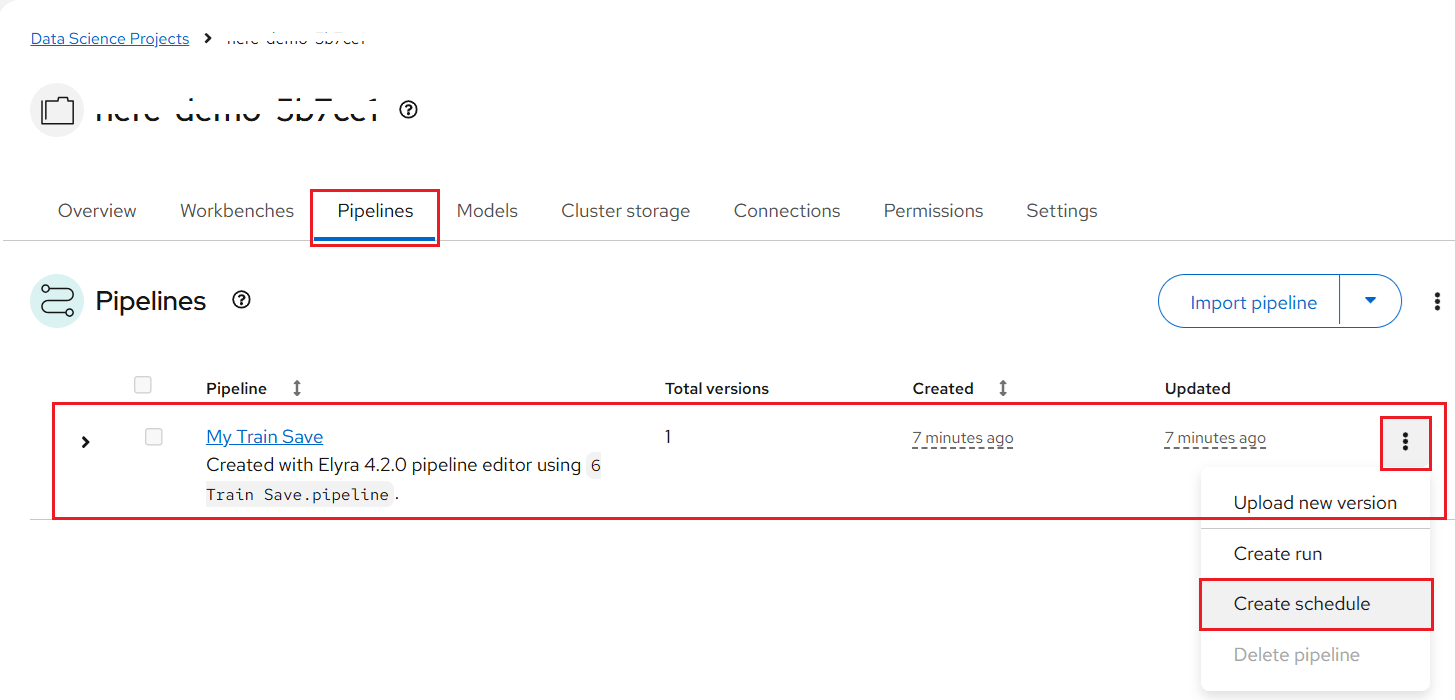

v. In the OpenShift AI dashboard, open your data science project and expand the newly created pipeline.

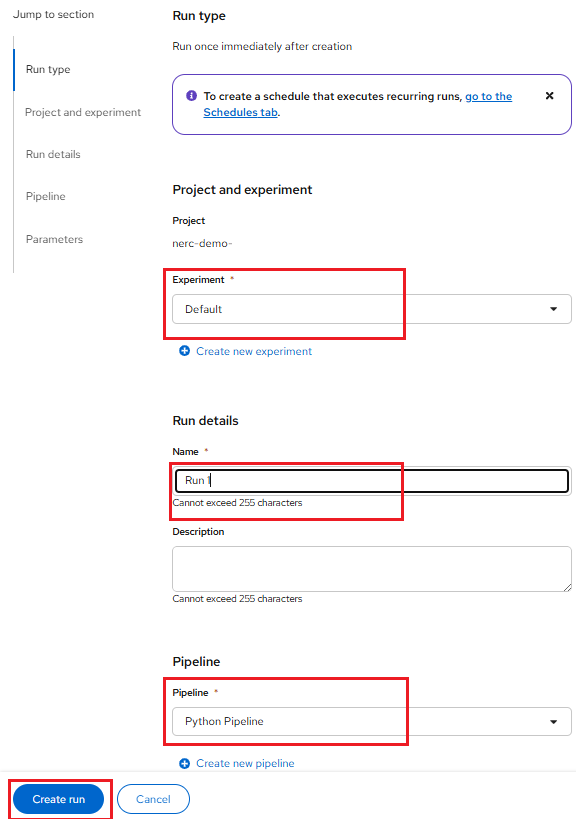

vi. Click View runs.

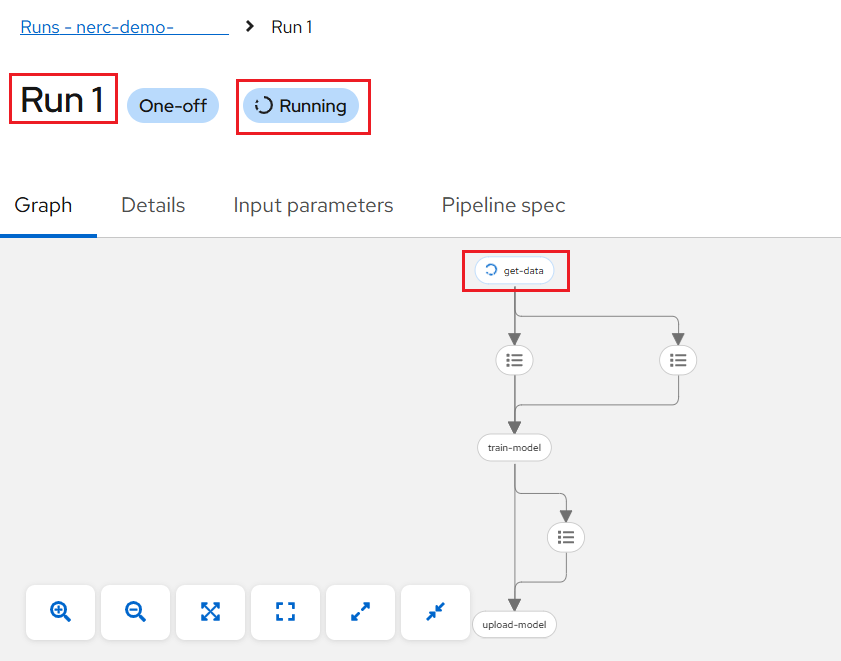

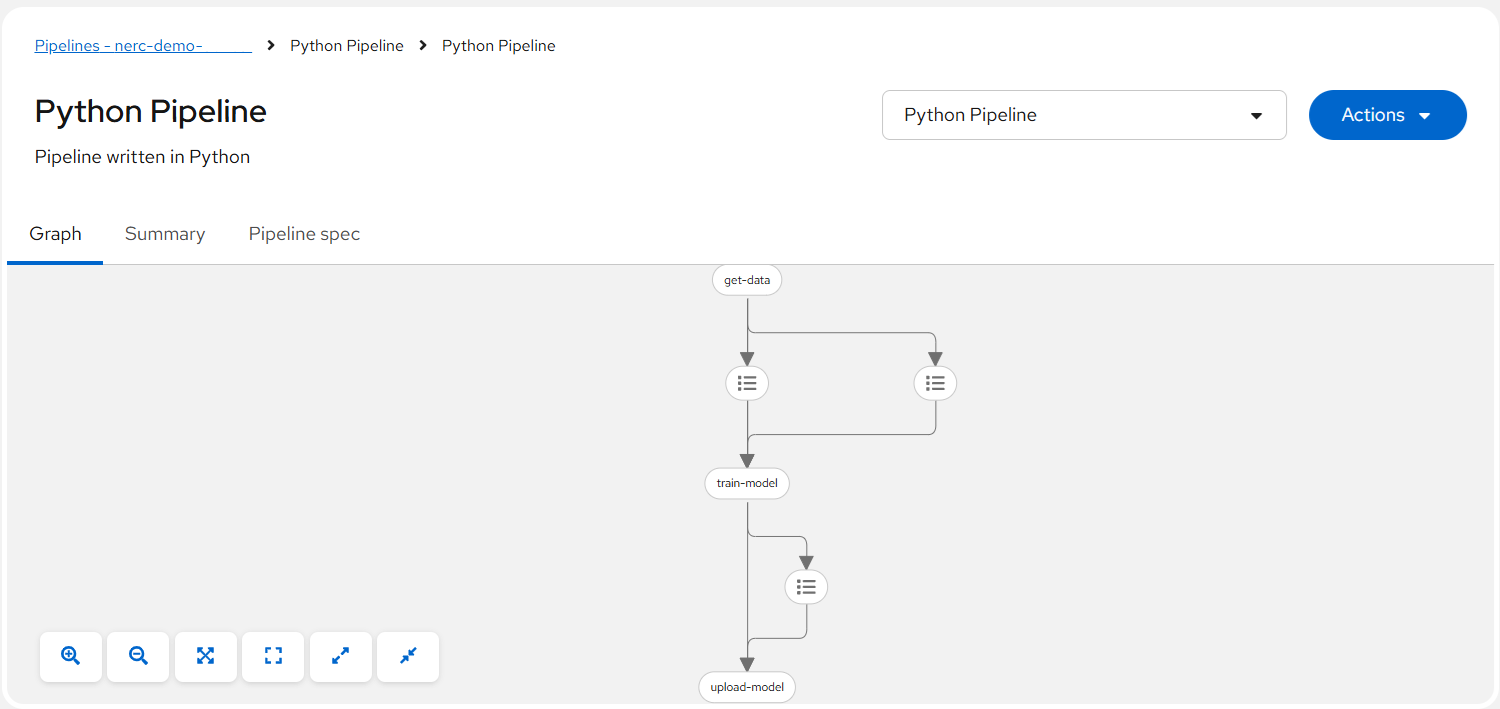

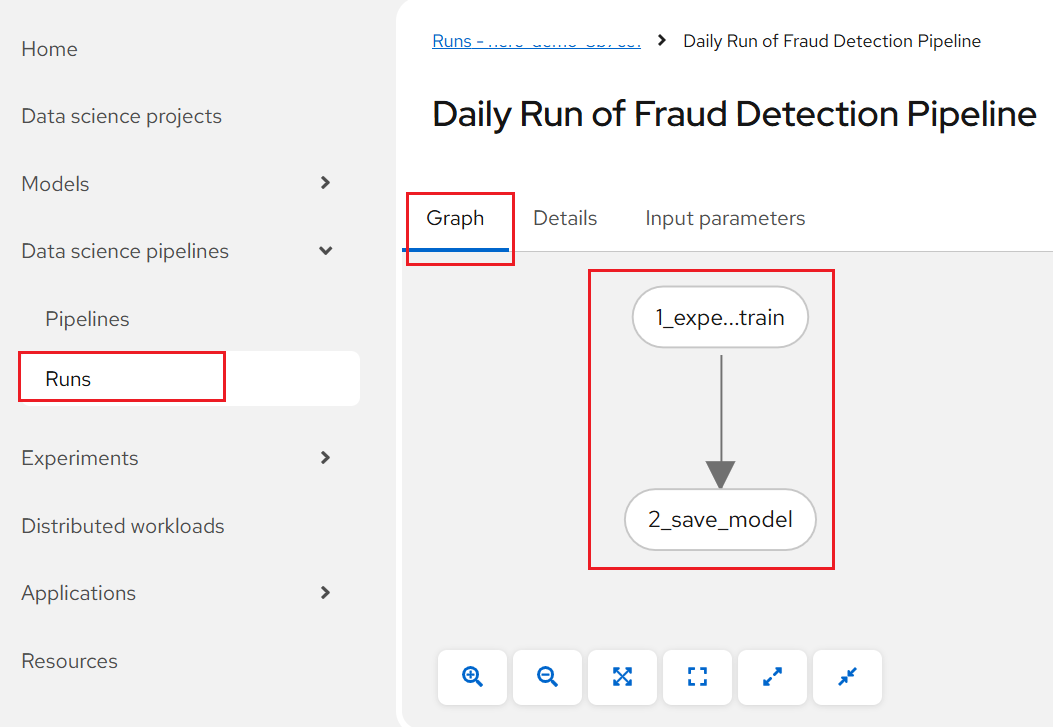

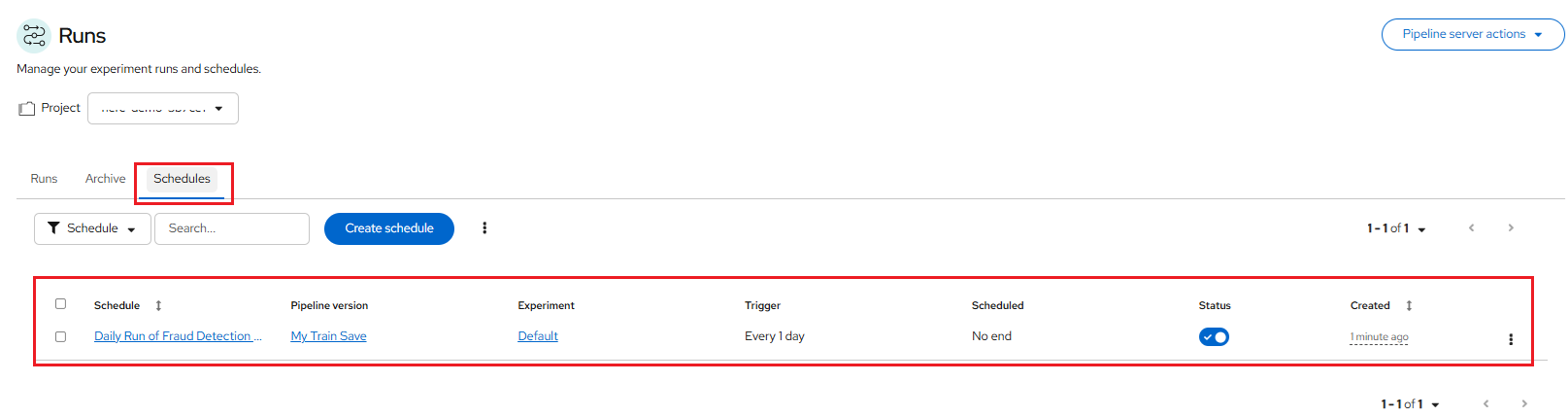

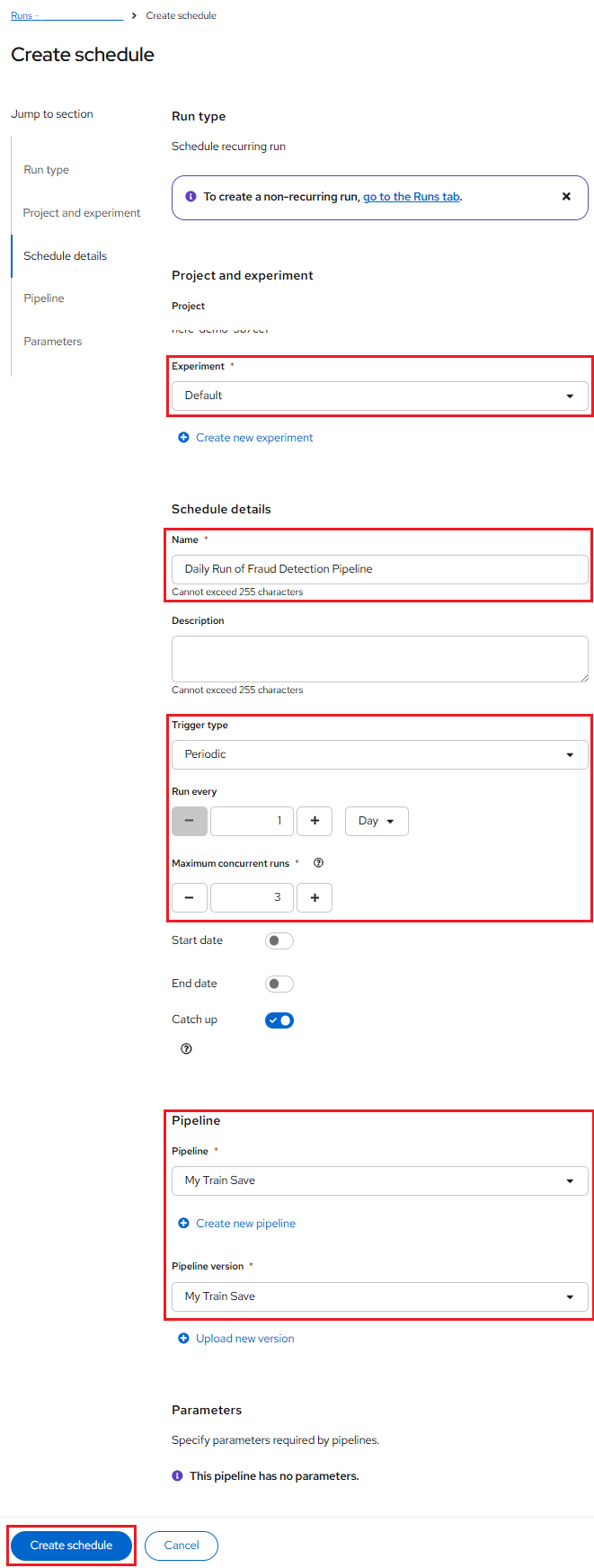

vii. Click your run and then view the pipeline run in progress.

The result should be a models/fraud/1/model.onnx file in your S3 bucket which you can serve, just like you did manually in the Preparing a model for deployment section.

Deploy the Model Application on NERC OpenShift

The model application includes a visual user interface (UI) powered by Gradio, allowing users to interact with the trained model. This interface enables users to input transaction data and receive predictions on potential fraud, providing an intuitive way to test the model's performance. Additionally, example inputs are provided within the UI to help users understand the expected data format and interact with the model effectively.

The model application code is located in the "application" folder within the root directory of fraud-detection. You can find this folder in the GitHub repository you cloned during the step: Importing the tutorial files into the Jupyter environment.

If you look inside it model_application.py, you will see two particularly important lines of code:

# Get a few environment variables. These are so we:
# - Know what endpoint we should request
# - Set server name and port for Gradio
URL = os.getenv("INFERENCE_ENDPOINT")   <----------
...

    response = requests.post(URL, json=payload, headers=headers)    <----------

This is how you send a request to the NERC RHOAI Model Server with the data that you want it to process for a prediction.

We will deploy the application on OpenShift by linking it to the GitHub repository. OpenShift will fetch the repository, build a container image using the Dockerfile, and publish it automatically.

To accomplish this, from the OpenShift AI dashboard, navigate to the OpenShift Web Console:

Ensure you are in Developer view and have selected the correct data science project. Then, click on "+Add" in the left menu and select "Import from Git".

In the "Git Repo URL" enter: https://github.com/nerc-project/fraud-detection (this is the same repository you pulled into RHOAI earlier). Then press "Show advanced Git options" and set "Context dir" to "/application" where the application Dockerfile is located as shown below:

At the General section, select "Create application" option under Application and then give unique Application name i.e. fraud-detection-application and also Name i.e. fraud-detection-application as shown below:

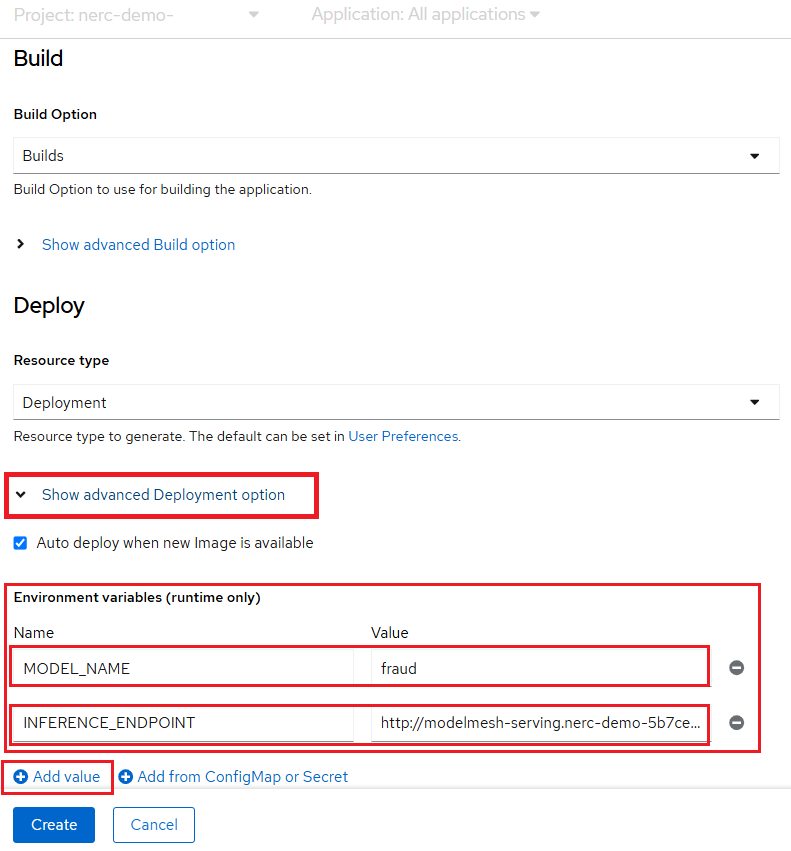

Finally, at the Deploy section, press "Show advanced Deployment option".

Set these values in the Environment variables (runtime only) fields:

Name: INFERENCE_ENDPOINT

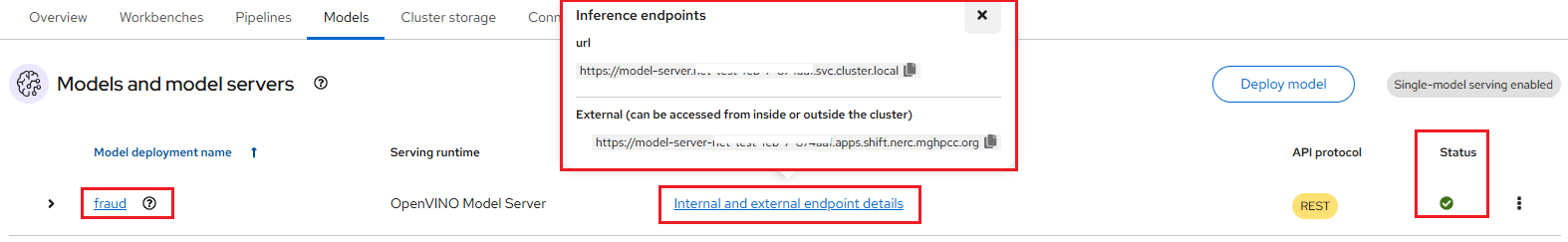

Value: From the RHOAI projects interface (from the previous section), copy the restUrl value and add /v2/models/fraud/infer to the end. For example: http://modelmesh-serving.nerc-demo-xxx:8008/v2/models/fraud/infer.

Your full settings page should look something like this:

Press Create to start deploying the application.

You should now see a new object is added in your topology map for the application that you just added. When the circle of your deployment turns dark blue it means that it has finished deploying.

If you want more details on how the deployment is going, you can press the circle and look at Resources in the right menu that opens up. There you can see how the build is going and what's happening to the pod.

The application will be ready when the build is complete and the pod is "Running".

When the application has been deployed you can press the "Open URL" button to open up the interface in a new tab.

Congratulations, you now have an application running your AI model!

Try entering a few values and click "Submit" to see if it predicts it as a credit fraud or not. You can select one of the example rows at the bottom of the application page, this will auto-populate the values to the form.

---
