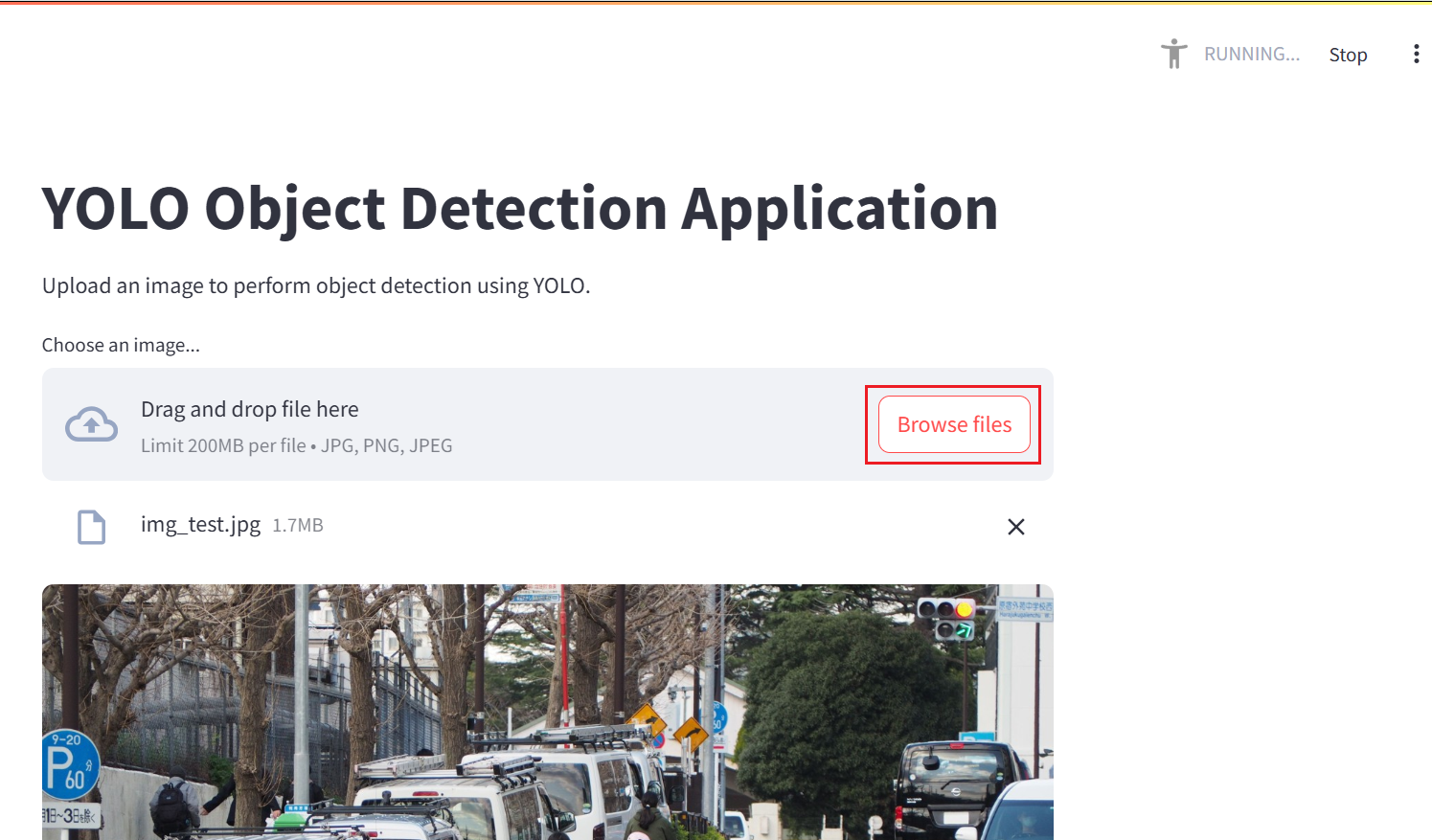

Object Detection Application Using YOLOv5 Model

Here you will use an example Object Detection Application using YOLOv5 model to complete the following tasks:

• Data Preparation by downloading dataset images and randomly split them in train/validate/test.

• Train model with YOLOv5 and test it.

• Export YoloV5 model to ONNX format.

• Save the Model to the S3 Object storage.

• Deploy the model by using OpenShift AI model serving.

• Use the gRPC and REST inference endpoints to query the model.

About the YOLOv5 model

YOLO(You Only Look Once) is one of the leading object detection algorithms, leveraging deep learning techniques to achieve high speed and accuracy. Unlike the R-CNN(Region-based Convolutional Neural Network) model, YOLO takes a different approach by dividing the input image into a grid and predicting bounding boxes within each grid cell. This method simplifies the process of determining object class probabilities.

By using a single-stage detection model, YOLO processes the entire image in one pass, making it significantly faster than traditional models. Due to its efficiency, YOLO is well-suited for real-time applications.

YOLOv5, which further improved the model's performance and added new features such as support for panoptic segmentation and object tracking.

YOLO has been widely applied across various fields, including autonomous vehicles, security and surveillance, and medical imaging.

Navigating to the OpenShift AI dashboard

Please follow these steps to access the NERC OpenShift AI dashboard.

Setting up your Data Science Project in the NERC RHOAI

Prerequisites:

• Before proceeding, confirm that you have an active GPU quota that has been approved for your current NERC OpenShift Allocation through NERC ColdFront. Read more about How to Access GPU Resources on NERC OpenShift Allocation.

1. Storing data with connection

For this tutorial, you will need two S3-compatible object storage buckets, such as NERC OpenStack Container (Ceph), MinIO, or AWS S3. You can either use your own storage buckets or run a provided script that automatically creates the following local MinIO storage bucket:

• my-storage – Use this bucket to store your models and data. You can reuse this bucket and its connection for notebooks and model servers.

1.1. Using your own S3-compatible storage buckets

Procedure:

Manually create a data connection: My Storage by following How to create a data connection.

Verification:

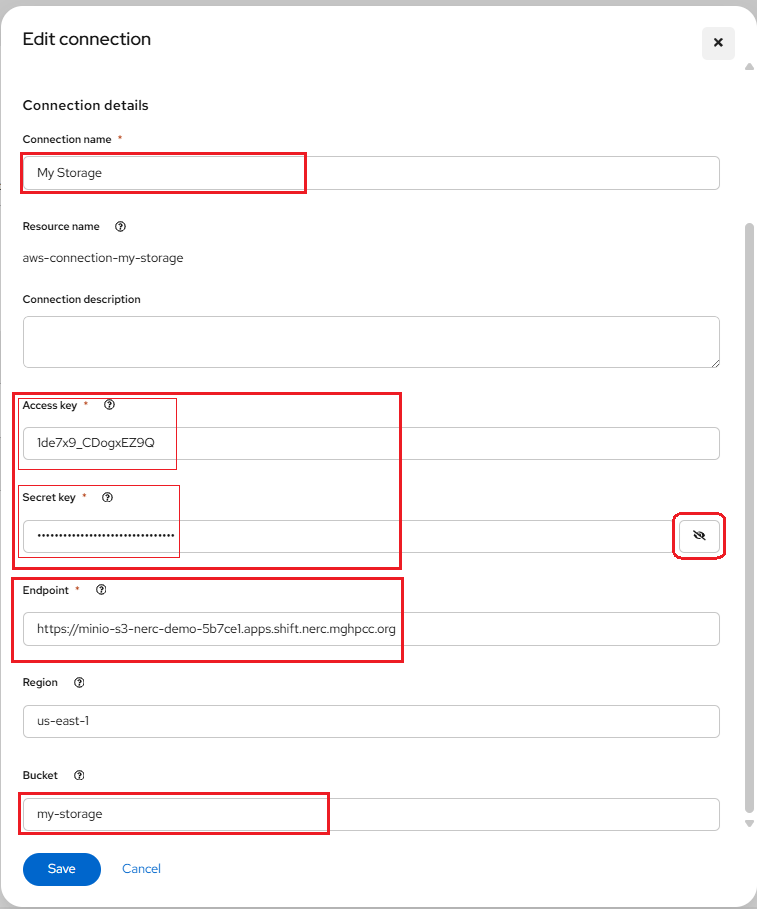

You should see a data connection listed under your RHOAI Dashboard My Storage as shown below:

1.2. Using a script to set up local MinIO storage

Alternatively, if you want to run a script that automates the setup by completing the following tasks:

• Deploys a MinIO instance in your project namespace.

• Creates one storage buckets within the MinIO instance.

• Generates a random user ID and password for the MinIO instance.

• Establishes a data connection in your project - for a bucket - using the generated credentials.

• Installs all required network policies.

Procedure:

i. From the OpenShift AI dashboard, you can return to OpenShift Web Console by using the application launcher icon (the black-and-white icon that looks like a grid), and choosing the "OpenShift Console" as shown below:

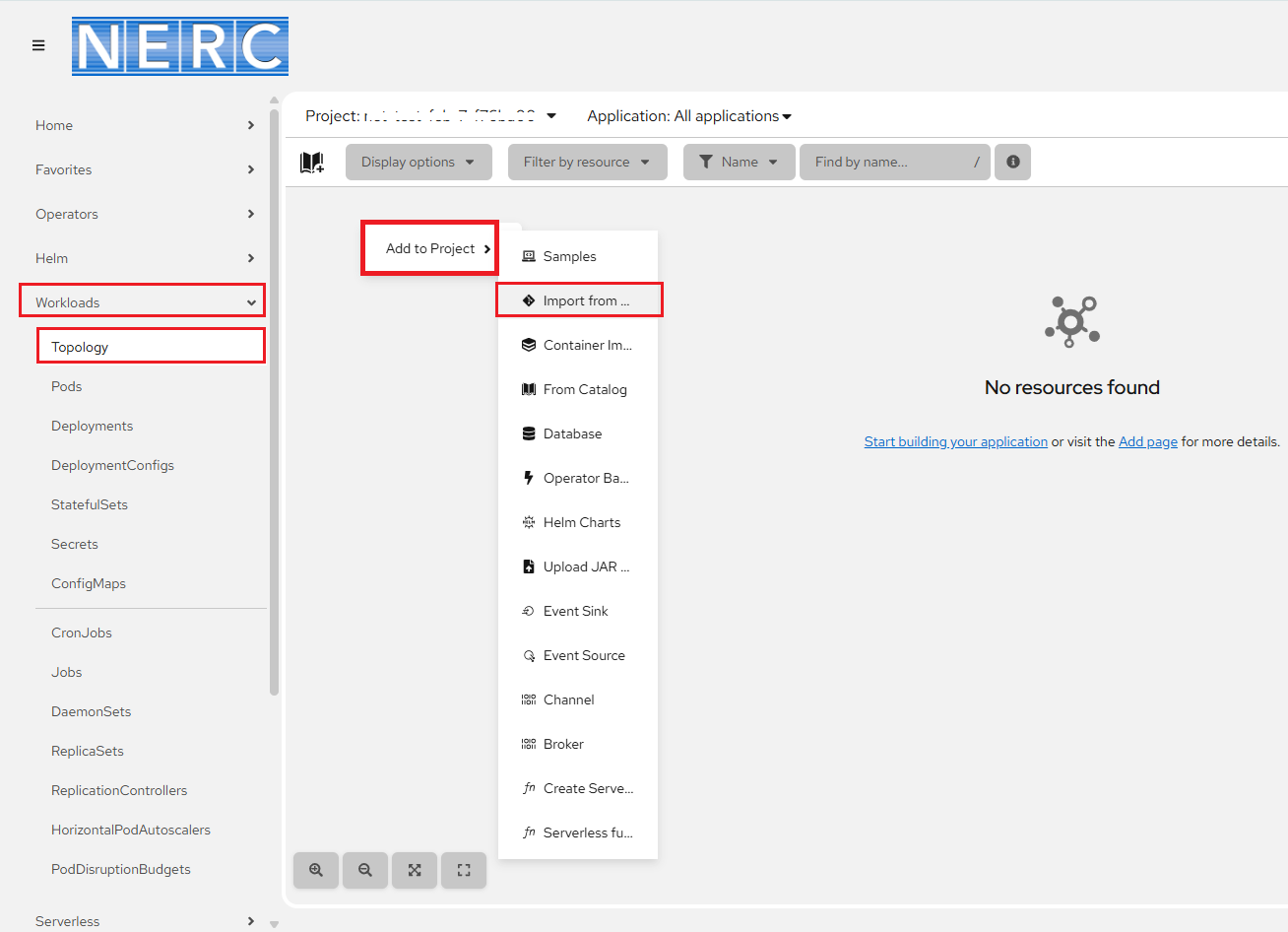

ii. From your NERC's OpenShift Web Console, navigate to your project corresponding to the NERC RHOAI Data Science Project and select the "Import YAML" button, represented by the "+" icon in the top navigation bar as shown below:

iii. Verify that you selected the correct project.

iv. Copy the following code and paste it into the Import YAML editor.

Local MinIO storage Creation YAML Script

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: demo-setup
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: demo-setup-edit
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: edit
subjects:
- kind: ServiceAccount
  name: demo-setup
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio
spec:
  ports:
  - name: api
    port: 9000
    targetPort: api
  - name: console
    port: 9090
    targetPort: 9090
  selector:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio
spec:
  replicas: 1
  selector:
    matchLabels:
      app: minio
      app.kubernetes.io/component: minio
      app.kubernetes.io/instance: minio
      app.kubernetes.io/name: minio
      app.kubernetes.io/part-of: minio
      component: minio
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: minio
        app.kubernetes.io/component: minio
        app.kubernetes.io/instance: minio
        app.kubernetes.io/name: minio
        app.kubernetes.io/part-of: minio
        component: minio
    spec:
      containers:
      - args:
        - minio server /data --console-address :9090
        command:
        - /bin/bash
        - -c
        envFrom:
        - secretRef:
            name: minio-root-user
        image: quay.io/minio/minio:latest
        name: minio
        ports:
        - containerPort: 9000
          name: api
          protocol: TCP
        - containerPort: 9090
          name: console
          protocol: TCP
        resources:
          limits:
            cpu: "2"
            memory: 2Gi
          requests:
            cpu: 200m
            memory: 1Gi
        volumeMounts:
        - mountPath: /data
          name: minio
      volumes:
      - name: minio
        persistentVolumeClaim:
          claimName: minio
      - emptyDir: {}
        name: empty
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: create-ds-connections
spec:
  selector: {}
  template:
    spec:
      containers:
      - args:
        - -ec
        - |-
          echo -n 'Waiting for minio route'
          while ! oc get route minio-s3 2>/dev/null | grep -qF minio-s3; do
            echo -n .
            sleep 5
          done; echo

          echo -n 'Waiting for minio root user secret'
          while ! oc get secret minio-root-user 2>/dev/null | grep -qF minio-root-user; do
            echo -n .
            sleep 5
          done; echo

          MINIO_ROOT_USER=$(oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_USER}}')
          MINIO_ROOT_PASSWORD=$(oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_PASSWORD}}')
          MINIO_HOST=https://$(oc get route minio-s3 -o template --template '{{.spec.host}}')

          cat << EOF | oc apply -f-
          apiVersion: v1
          kind: Secret
          metadata:
            annotations:
              opendatahub.io/connection-type: s3
              openshift.io/display-name: My Storage
            labels:
              opendatahub.io/dashboard: "true"
              opendatahub.io/managed: "true"
            name: aws-connection-my-storage
          data:
            AWS_ACCESS_KEY_ID: ${MINIO_ROOT_USER}
            AWS_SECRET_ACCESS_KEY: ${MINIO_ROOT_PASSWORD}
          stringData:
            AWS_DEFAULT_REGION: us-east-1
            AWS_S3_BUCKET: my-storage
            AWS_S3_ENDPOINT: ${MINIO_HOST}
          type: Opaque
          EOF
        command:
        - /bin/bash
        image: image-registry.openshift-image-registry.svc:5000/openshift/tools:latest
        imagePullPolicy: IfNotPresent
        name: create-ds-connections
      restartPolicy: Never
      serviceAccount: demo-setup
      serviceAccountName: demo-setup
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: create-minio-buckets
spec:
  selector: {}
  template:
    metadata:
      labels:
        app.kubernetes.io/component: minio
        app.kubernetes.io/instance: minio
        app.kubernetes.io/name: minio
        app.kubernetes.io/part-of: minio
        component: minio
    spec:
      containers:
      - args:
        - -ec
        - |-
          oc get secret minio-root-user
          env | grep MINIO
          cat << 'EOF' | python3
          import boto3, os

          s3 = boto3.client("s3",
                            endpoint_url="http://minio:9000",
                            aws_access_key_id=os.getenv("MINIO_ROOT_USER"),
                            aws_secret_access_key=os.getenv("MINIO_ROOT_PASSWORD"))
          bucket = 'my-storage'
          print('creating my-storage bucket')
          if bucket not in [bu["Name"] for bu in s3.list_buckets()["Buckets"]]:
            s3.create_bucket(Bucket=bucket)
          EOF
        command:
        - /bin/bash
        envFrom:
        - secretRef:
            name: minio-root-user
        image: image-registry.openshift-image-registry.svc:5000/redhat-ods-applications/s2i-generic-data-science-notebook:2023.2
        imagePullPolicy: IfNotPresent
        name: create-buckets
      initContainers:
      - args:
        - -ec
        - |-
          echo -n 'Waiting for minio root user secret'
          while ! oc get secret minio-root-user 2>/dev/null | grep -qF minio-root-user; do
          echo -n .
          sleep 5
          done; echo

          echo -n 'Waiting for minio deployment'
          while ! oc get deployment minio 2>/dev/null | grep -qF minio; do
            echo -n .
            sleep 5
          done; echo
          oc wait --for=condition=available --timeout=60s deployment/minio
          sleep 10
        command:
        - /bin/bash
        image: image-registry.openshift-image-registry.svc:5000/openshift/tools:latest
        imagePullPolicy: IfNotPresent
        name: wait-for-minio
      restartPolicy: Never
      serviceAccount: demo-setup
      serviceAccountName: demo-setup
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: create-minio-root-user
spec:
  backoffLimit: 4
  template:
    metadata:
      labels:
        app.kubernetes.io/component: minio
        app.kubernetes.io/instance: minio
        app.kubernetes.io/name: minio
        app.kubernetes.io/part-of: minio
        component: minio
    spec:
      containers:
      - args:
        - -ec
        - |-
          if [ -n "$(oc get secret minio-root-user -oname 2>/dev/null)" ]; then
            echo "Secret already exists. Skipping." >&2
            exit 0
          fi
          genpass() {
              < /dev/urandom tr -dc _A-Z-a-z-0-9 | head -c"${1:-32}"
          }
          id=$(genpass 16)
          secret=$(genpass)
          cat << EOF | oc apply -f-
          apiVersion: v1
          kind: Secret
          metadata:
            name: minio-root-user
          type: Opaque
          stringData:
            MINIO_ROOT_USER: ${id}
            MINIO_ROOT_PASSWORD: ${secret}
          EOF
        command:
        - /bin/bash
        image: image-registry.openshift-image-registry.svc:5000/openshift/tools:latest
        imagePullPolicy: IfNotPresent
        name: create-minio-root-user
      restartPolicy: Never
      serviceAccount: demo-setup
      serviceAccountName: demo-setup
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio-console
spec:
  port:
    targetPort: console
  tls:
    insecureEdgeTerminationPolicy: Redirect
    termination: edge
  to:
    kind: Service
    name: minio
    weight: 100
  wildcardPolicy: None
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  labels:
    app: minio
    app.kubernetes.io/component: minio
    app.kubernetes.io/instance: minio
    app.kubernetes.io/name: minio
    app.kubernetes.io/part-of: minio
    component: minio
  name: minio-s3
spec:
  port:
    targetPort: api
  tls:
    insecureEdgeTerminationPolicy: Redirect
    termination: edge
  to:
    kind: Service
    name: minio
    weight: 100
  wildcardPolicy: None

v. Click Create.

Verification:

i. Once Resource is successfully created, you will see a "Resources successfully created" message and the following resources listed:

ii. Once the deployment is successful, you will be able to see all resources are created and grouped under "minio" application grouping on the Topology View menu, as shown below:

Once successfully initiated, click on the minio deployment and select the "Resources" tab to review created Pods, Services, and Routes.

Please note the minio-console route URL by navigating to the "Routes" section under the Location path. When you click on the minio-console route URL, it will open the MinIO web console that looks like below:

MinIO Web Console Login Credential

The Username and Password for the MinIO web console can be retrieved from the Data Connection's Access key and Secret key.

iii. Navigate back to the OpenShift AI dashboard

a. Select Data Science Projects and then click the name of your project, i.e. Object Detection Workbench.

b. Click Data connections. You should see one data connection listed: My Storage as shown below:

c. Verify the buckets are created on the MinIO Web Console:

• Click on the newly created data connection from the list and then click the action menu (⋮) at the end of the selected data connection row. Choose "Edit data connection" from the dropdown menu. This will open a pop-up window as shown below:



• Note both Secret key (by clicking eye icon near the end of the textbox) and Access key.

  Alternatively, Run oc commands to get Secret key and Access key

  Alternatively, you can run the following oc commands:

  i. To get Secret key run:

  oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_USER}}' | base64 --decode

  ii. And to get Access key run:

  oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_PASSWORD}}' | base64 --decode

• Return to the MinIO Web Console using the provided URL. Enter the Access Key as the Username and the Secret Key as the Password. This will open the Object Browser, where you should verify that the bucket: my-storage is visible as shown below:



Alternatively, Running a script to install local MinIO object storage

Alternatively, you can run a script to install local object storage buckets and create data connections using the OpenShift CLI (oc). For that, you need to install and configure the OpenShift CLI by following the setup instructions. Once the OpenShift CLI is set up, execute the following command to install MinIO object storage along with local MinIO storage buckets and necessary data connections:

oc apply -f https://raw.githubusercontent.com/nerc-project/object-detection/main/setup/setup-s3.yaml

Important Note

The script is based on a guide for deploying MinIO. The MinIO-based Object Storage that the script creates is not meant for production usage.

2. Creating a workbench and a notebook

Creating a workbench and selecting a notebook image

Procedure:

Prepare your Jupyter notebook server for using a GPU, you need to have:

Select the correct data science project and create workbench, see Populate the data science project for more information.

Please ensure that you start your Jupyter notebook server with options as depicted in the following configuration screen. This screen provides you with the opportunity to select a notebook image and configure its options, including the Accelerator and Number of accelerators (GPUs).

For our example project, let's name it "Fraud detection". We'll select the PyTorch image with Recommended Version (selected by default), choose a Deployment size of Medium, choose Accelerator of NVIDIA V100 GPU, Number of accelerators as 1, and allocate a Cluster storage space of 20GB.

Here, you will use Environment Variables to specify the Key/Value pairs related to the S3-compatible object storage bucket for storing your model.

To add Environment variables please follow the following steps:

i. Click on "Add variable".

ii. Select "Config Map" from the dropdown for the environment variable type.

iii. Choose "Key / Value" and enter the following keys along with their corresponding values, which you have retrieved while "Editing data connection":

Environment Variables:

Key: AWS_ACCESS_KEY_ID
Value: <Access key>

Key: AWS_SECRET_ACCESS_KEY
Value: <Secret key>

Key: AWS_S3_ENDPOINT
Value: <Endpoint>

Key: AWS_DEFAULT_REGION
Value: <Region>

Key: AWS_S3_BUCKET
Value: <Bucket>

Alternatively, Running oc commands

Alternatively, you can run the following oc commands:

i. To get Secret key run:

oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_USER}}' | base64 --decode

ii. And to get Access key run:

oc get secret minio-root-user -o template --template '{{.data.MINIO_ROOT_PASSWORD}}' | base64 --decode

iii. And to get Endpoint run:

oc get route minio-s3 -o template --template '{{.spec.host}}'

You need to add https:// in the front of the endpoint host url.

Running Workbench without GPU

If you do not require GPU resources for your task, you can leave the Accelerator field set to its default None selection.

Verification:

If this procedure is successful, you have started your Jupyter notebook server. When your workbench is ready, the status will change from Starting to Running and you can select "Open" to go to your environment:

Note

If you made a mistake, you can edit the workbench to make changes. Please make sure your toggle the Running status of your workbench to Stopped prior clicking the action menu (⋮) at the end of the selected workbench row as shown below:

Once you successfully authenticate you should see the NERC RHOAI JupyterLab Web Interface as shown below:

It's pretty empty right now, though. On the left side of the navigation pane, locate the Name explorer panel. This panel is where you can create and manage your project directories.

Learn More About Working with Notebooks

For detailed guidance on using notebooks on NERC RHOAI JupyterLab, please refer to this documentation.

Importing the tutorial files into the Jupyter environment

Bring the content of this tutorial inside your Jupyter environment:

On the toolbar, click the Git Clone icon:

Enter the following tutorial Git https URL: https://github.com/nerc-project/object-detection

Check the Include submodules option, and then click Clone.

In the file browser, double-click the newly-created object-detection folder.

Verification:

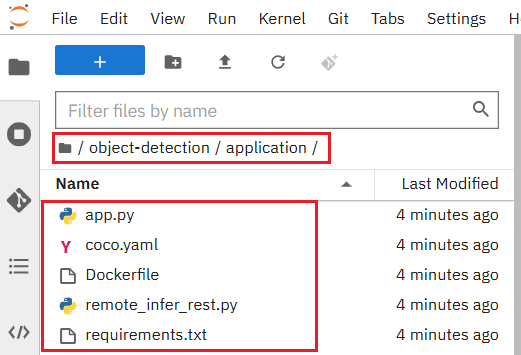

In the file browser, you should see the notebooks that you cloned from Git.

3. Data Preparation

In your Jupyter notebook environment, within the root folder path of object-detection, find the Jupyter notebook file 01-data_preparation.ipynb that demonstrates how to prepare the dataset within the NERC RHOAI. Please follow the instructions directly in the notebook environment. To run it you need to double click it and execute the "Run" button to run all notebook cells at once.

To train the model, we need a dataset containing images of the target classes, along with their labels and bounding box definitions for object detection. In this example, we use images from Google's Open Images dataset, focusing on threeclasses: Bicycle, Car, and Traffic Sign.

Using the Class and Image per Class

In this example, we selected only a few classes to speed up the process and also we are only downloading 300 images per class to limit the processing time. However, to achieve a robust YOLOv5 model, it is recommended to train with over 1500 images per class, and more then 10,000 instances per class.

We can now randomly split all our images in train/validate/test. We will use here a standard split scheme: 0.75, 0.125, 0.125.

Once you have completed the entire notebook, the dataset will be ready for training!

4. Model training

YOLOv5 is pre-trained to recognize various objects. In this guide, we will use Transfer Learning to fine-tune YOLOv5 for identifying a custom set of images.

Transfer Learning

Transfer learning is a machine learning technique where a model trained for one task is adapted for another related task. Instead of training from scratch, it utilizes a pre-trained model as a foundation, significantly reducing the need for data and computing resources. This approach applies learned knowledge from one problem to another, making it highly effective in fields like natural language processing, computer vision, and speech recognition.

Training with YOLOv5

For the training step, open the notebook file 02-model_training.ipynb in the same Workbench environment and follow the instructions. The notebook will guide you through experimentation, model training, and testing the model.

In this example, we will train using the smallest base model i.e. YOLOv5 to save time. However, you can modify the base model and adjust the training hyperparameters to achieve better results.

Verification:

This process will take some time to complete. At the end, it will generate and save the model yolov5n.pt within the root folder path of object-detection.

Warning

The memory allocated to your Workbench based on selected Container Size significantly affects the batch size you can use, regardless of your GPU's capacity.

5. Preparing a model for deployment

Procedure:

In your JupyterLab environment, open the notebook file 03-yolov5_to_onnx.ipynb. Follow the instructions in the notebook to store the model and save it in the portable ONNX format from YoloV5 model.

Verification:

After completing the notebook steps, verify that the yolov5n.onnx file is created within the root folder path of object-detection.

6. Save the Model

Procedure:

In your JupyterLab environment, open the notebook file 04-save_model.ipynb and follow the instructions. This notebook will guide you through saving the model to S3-compatible object storage, corresponding to the My Storage data connection, which was set up in this step.

Verification:

After completing the notebook steps, verify that the models/yolov5n.onnx file is stored in the object storage. Once saved, the model is now ready for use by your model server.

7. Deploying and testing a model

Deploying a model

Now that the model is stored and saved in the portable ONNX format, you can deploy it as an API using an OpenShift AI Model Server.

Deploying a model on a multi-model server

NERC RHOAI multi-model servers can host multiple models simultaneously. You can create a new model server and deploy your model to it.

Procedure:

In the OpenShift AI dashboard, navigate to the data science project details page and click the Models and model servers tab.

Select Add server as shown below:

In the pop-up window that appears, depicted as shown below, you can specify the following details:

For Model server name, type a name, for example Model Server.

For Serving runtime, select OpenVINO Model Server.

Leave the other fields with the default settings.

Click Add.

In the Models and model servers list, next to the new model server, click Deploy model.

In the form, provide the following values:

For Model deployment name, type yolo.

For Model framework (name - version), select onnx-1.

For Existing connection, select My Storage.

Type the path that leads to the version folder that contains your model file: models

Leave the other fields with the default settings.

Click Deploy.

Verification:

When you return to the Deployed models page, you will see your newly deployed model. You should click on the 1 on the Deployed models tab to see details. Notice the loading symbol under the Status section. When the model has finished deploying, the status icon will be a green checkmark indicating the model deployment is complete as shown below:

When you return to the Deployed models page, you will see your newly deployed model. You should click on the 1 on the Deployed models tab to see details. Notice the loading symbol under the Status section. When the model has finished deploying, the status icon will be a green checkmark indicating the model deployment is complete as shown below:

Testing the model API

Now that you've deployed the model, you can test its API endpoints.

Procedure:

• In the OpenShift AI dashboard, navigate to the project details page and click the Models tab.

• Take note of the model's Inference endpoint URL. You need this information when you test the model API.



  The Inference endpoint field contains an Internal Service link, click the link to open a popup that shows the URL details, and then take note of the grpcUrl and restUrl values.

• Return to the Jupyter notebook environment and test your new inference endpoints.

  To make a gRPC API call, follow the instructions in 05-remote_inference_grpc.ipynb, updating the grpc_host with your own grpcUrl value (as noted above).

  Follow the instructions in 06-remote_inference_rest.ipynb to make a REST API call. Be sure to update the rest_url with your own restUrl value (as noted above).



  Note

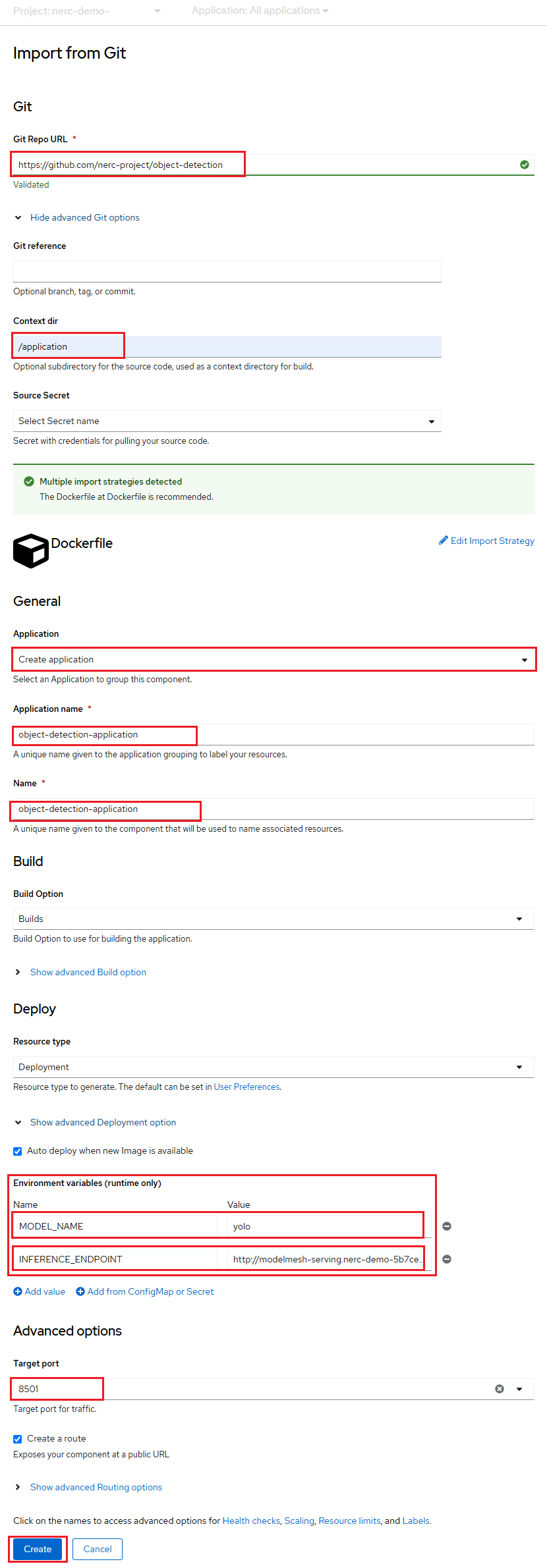

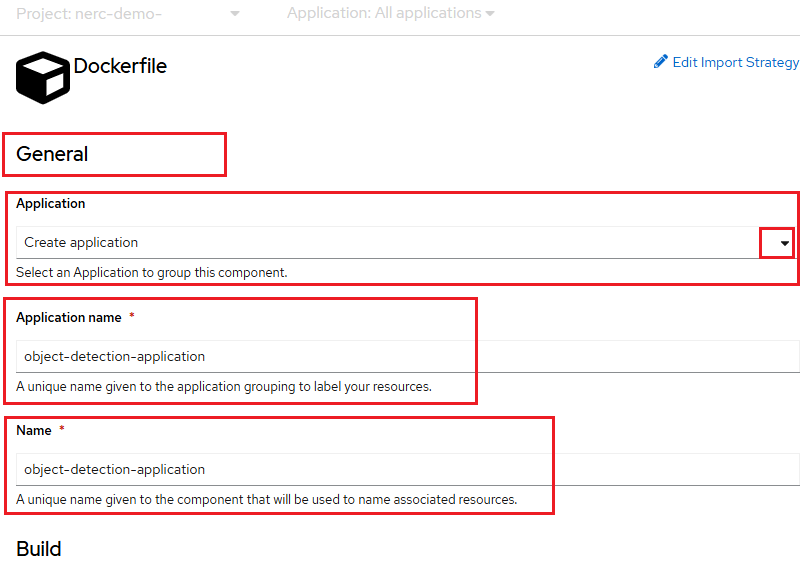

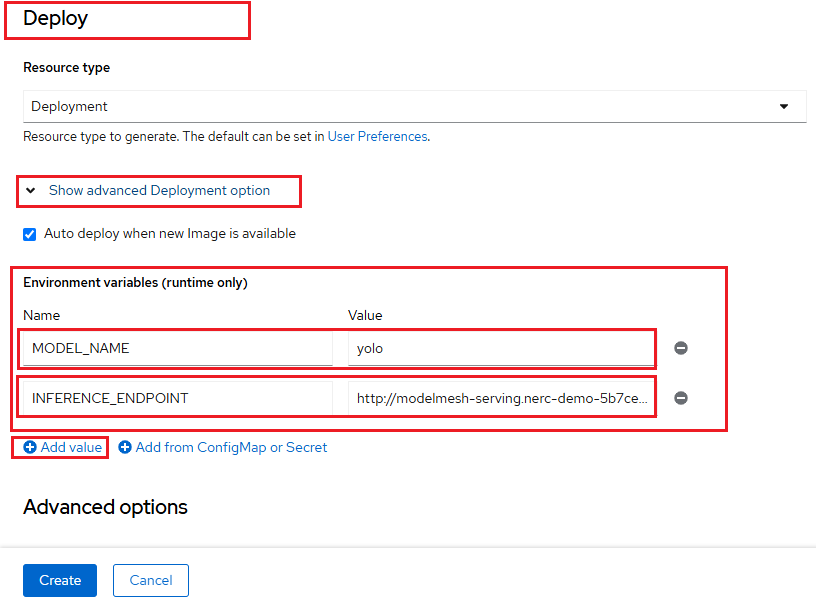

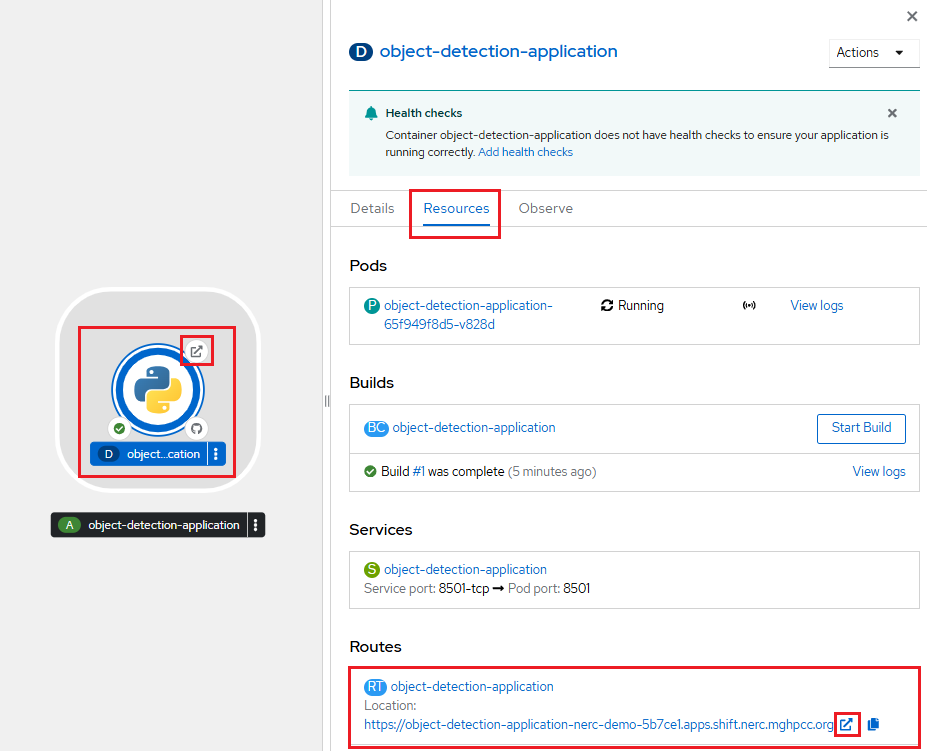

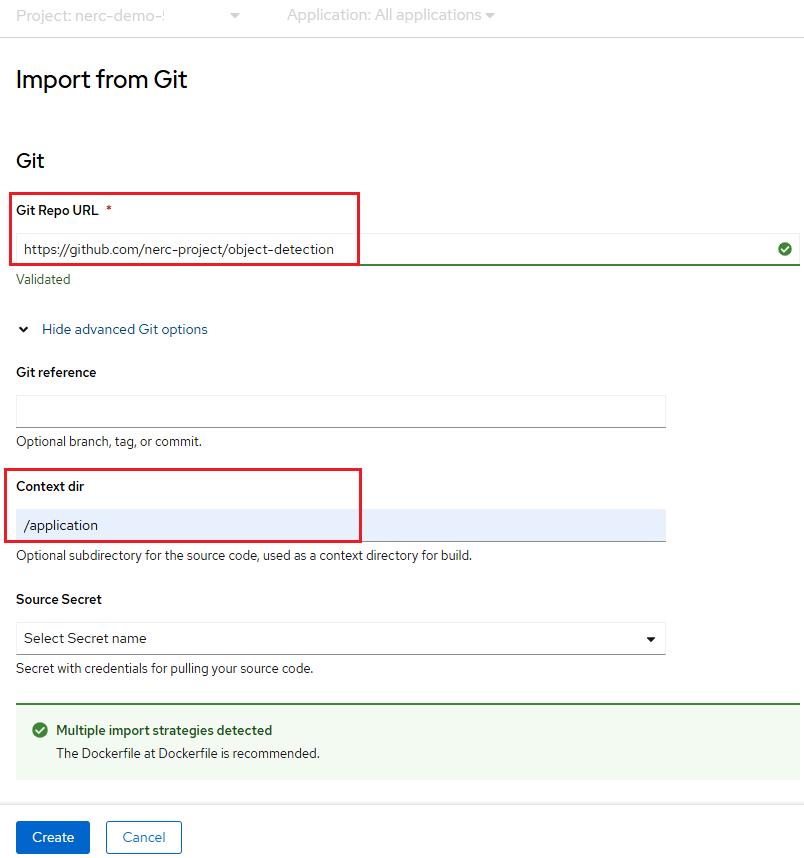

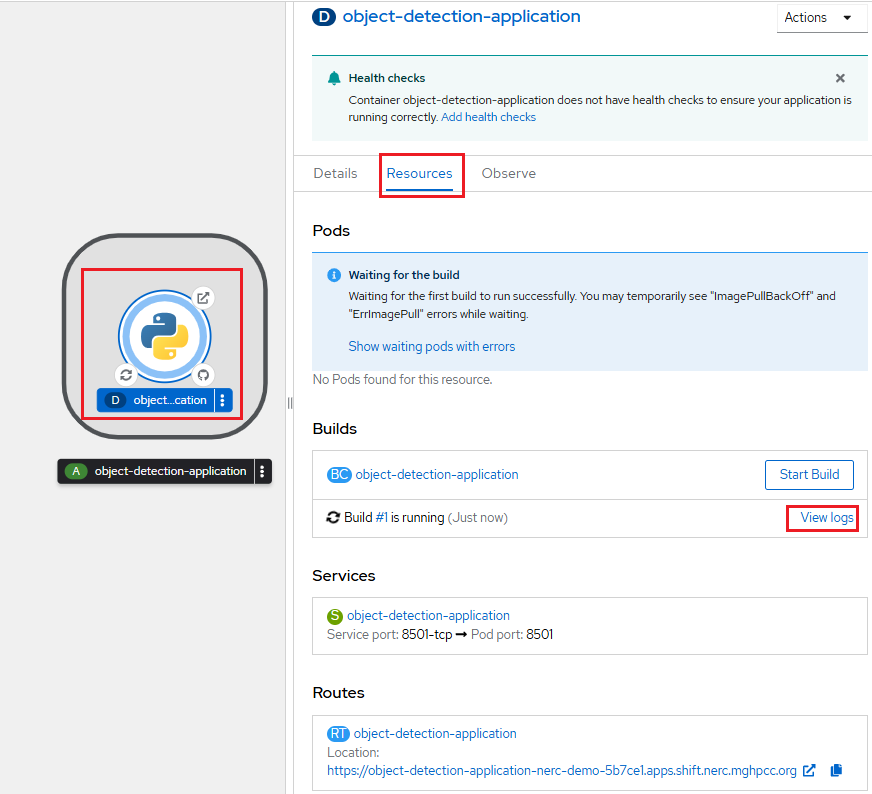

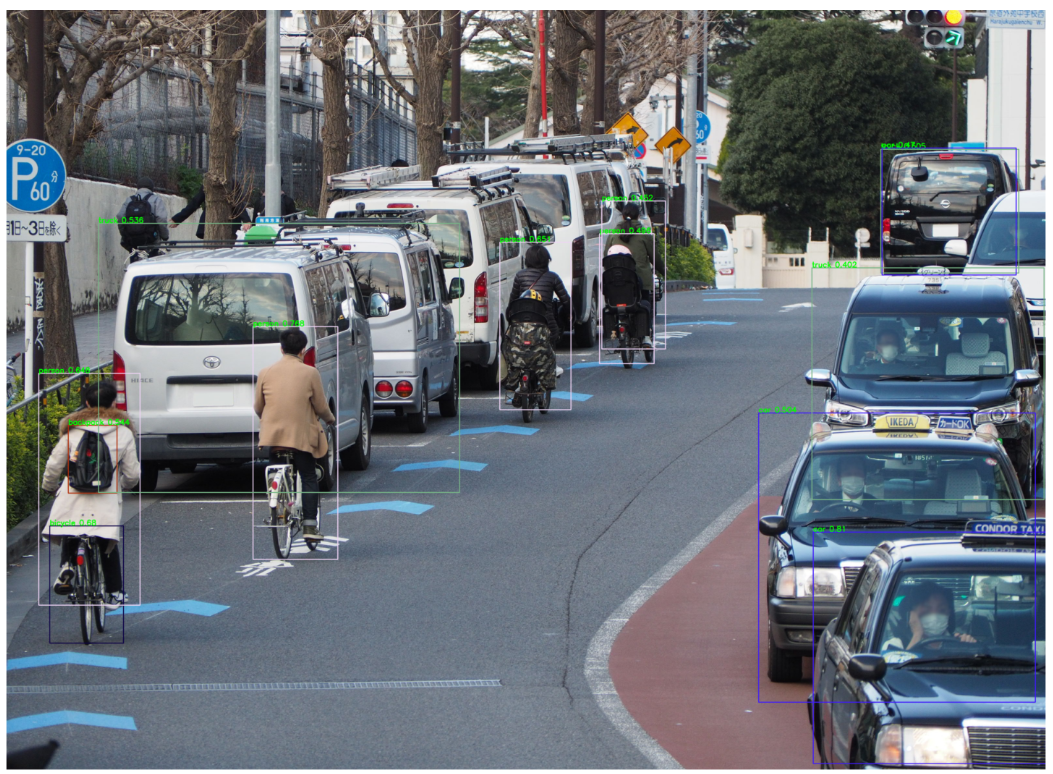

  The notebook provides an example for processing a single image and also demonstrates batch processing for multiple images from the images folder. This enables a basic benchmark to measure processing and inference time.

---
