Serving vLLM and Granite Models with Red Hat OpenShift AI

Prerequisites:

  • Before proceeding, confirm that you have an active GPU quota that has been approved for your current NERC OpenShift Allocation through NERC ColdFront. Read more about How to Access GPU Resources on NERC OpenShift Allocation.

  • Granite-3.3-8B-Instruct model: Granite-3.3-8B-Instruct is an 8-billion-parameter, 128K context-length language model fine-tuned for improved reasoning and instruction-following capabilities. It is built on top of Granite-3.3-8B-Base.

Procedure:

Set up local S3 storage (MinIO) and Connection

  1. Navigating to the OpenShift AI dashboard.

    Please follow these steps to access the NERC OpenShift AI dashboard.

  2. Using a script to set up local S3 storage (MinIO) on your Data Science Project in the NERC RHOAI as described here.

  3. Once your local S3 Object storage using MinIO is completed, you can browse to the MinIO Web Console using the provided URL. Enter the Access Key as the Username and the Secret Key as the Password. This will open the Object Browser, where you should verify that the bucket: my-storage is visible as shown below:

    MinIO Object Browser

Downloading Model

Navigate to https://huggingface.co/ and find the model you would like to deploy. For this example, we need to find and download the granite-3.3-8b-instruct model i.e. https://huggingface.co/ibm-granite/granite-3.3-8b-instruct/tree/main.

First you need to generate an access token:

  1. Go to https://huggingface.co/settings/tokens.

  2. Click on the "Create new token" button.

  3. Create a "Read" access token by selecting Read for Token type and then give it a Token name.

  4. Copy the generated Access Token i.e. Access_Token.

Now that you have a Access Token, you can download the model using that token by either using Git or using the Hugging Face CLI as described below:

Using Git with Access Token

git clone https://<your-username>:<Access_Token>@huggingface.co/<model_repo_path>

For example, this looks like as shown below:

git clone https://<your-username>:<Access_Token>@huggingface.co/ibm-granite/granite-3.3-8b-instruct

Using the Hugging Face CLI

First, install the CLI:

pip install huggingface_hub

Login with your token:

huggingface-cli login

Then download a model:

huggingface-cli download ibm-granite/granite-3.3-8b-instruct

Uploading the Model to the S3 storage (MinIO)

  • Select existing bucket named "my-storage".

  • Click on the "Create new path" button and provide a new path i.e. "models" as shown below:

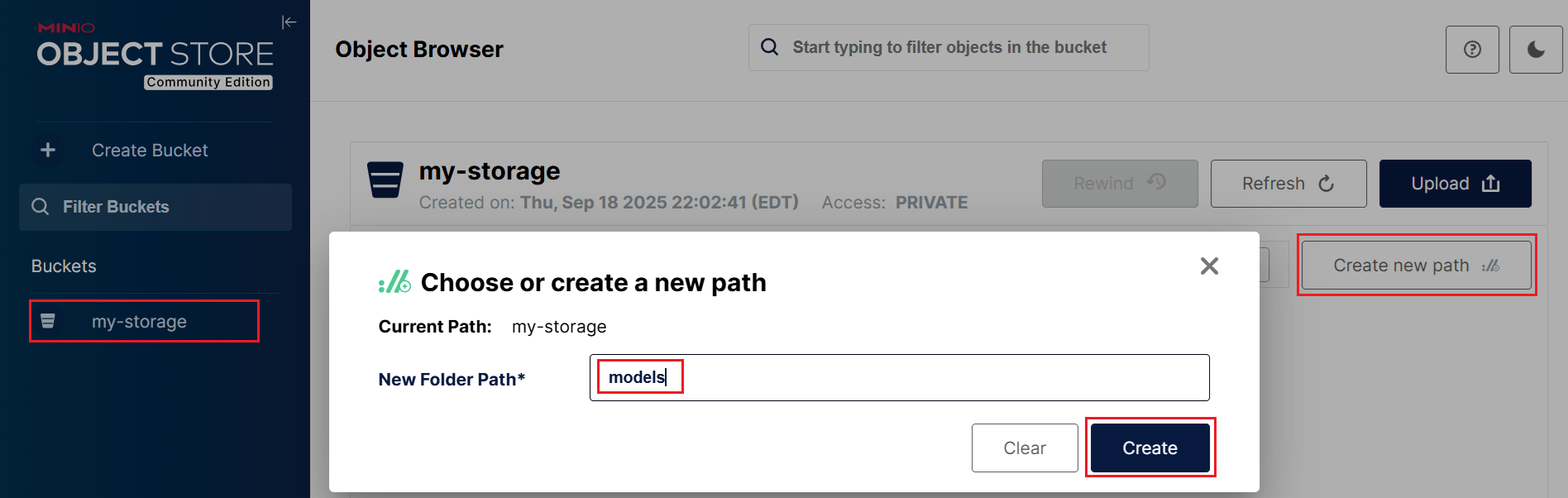

    Create Models Bucket Path

  • Upload the downloaded granite-3.3-8b-instruct model to the the bucket path i.e. "my-storage/models" by selecting Upload -> Upload Folder, and select the folder where the model was downloaded from huggingface.

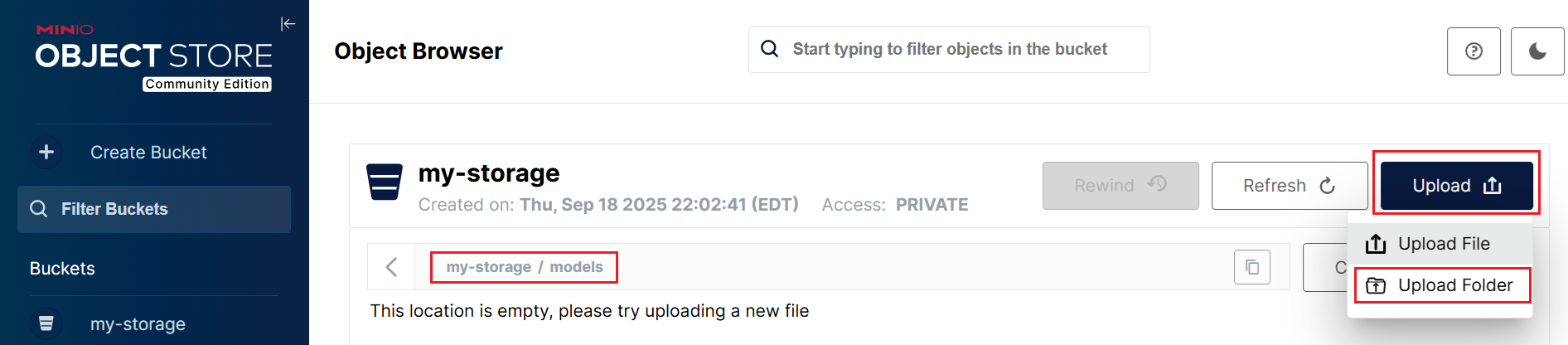

    Upload Model Folder

  • Wait for the upload to finish, this will take a while.

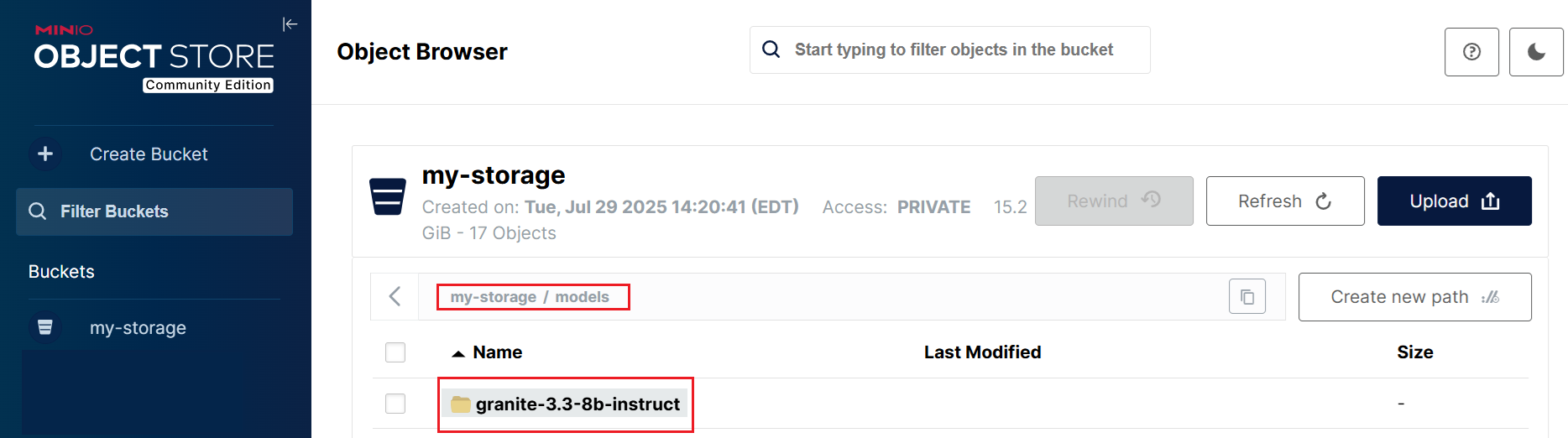

    Uploaded Granite Model Success

Setting up Single-model Server and Deploy the model

  1. In the left menu, click Data science projects.

    The Data science projects page opens.

  2. Click the name of the project that you want to deploy a model in.

    A project details page opens.

  3. Click the Models tab.

  4. Perform one of the following actions:

    • If you see a ​​Single-model serving platform tile, click Select single-model on the tile and then click the Deploy model button.

      Add A Single-model Server

    • If you do not see any tiles i.e. "Single-model serving platform" is already selected, click the Deploy model button.

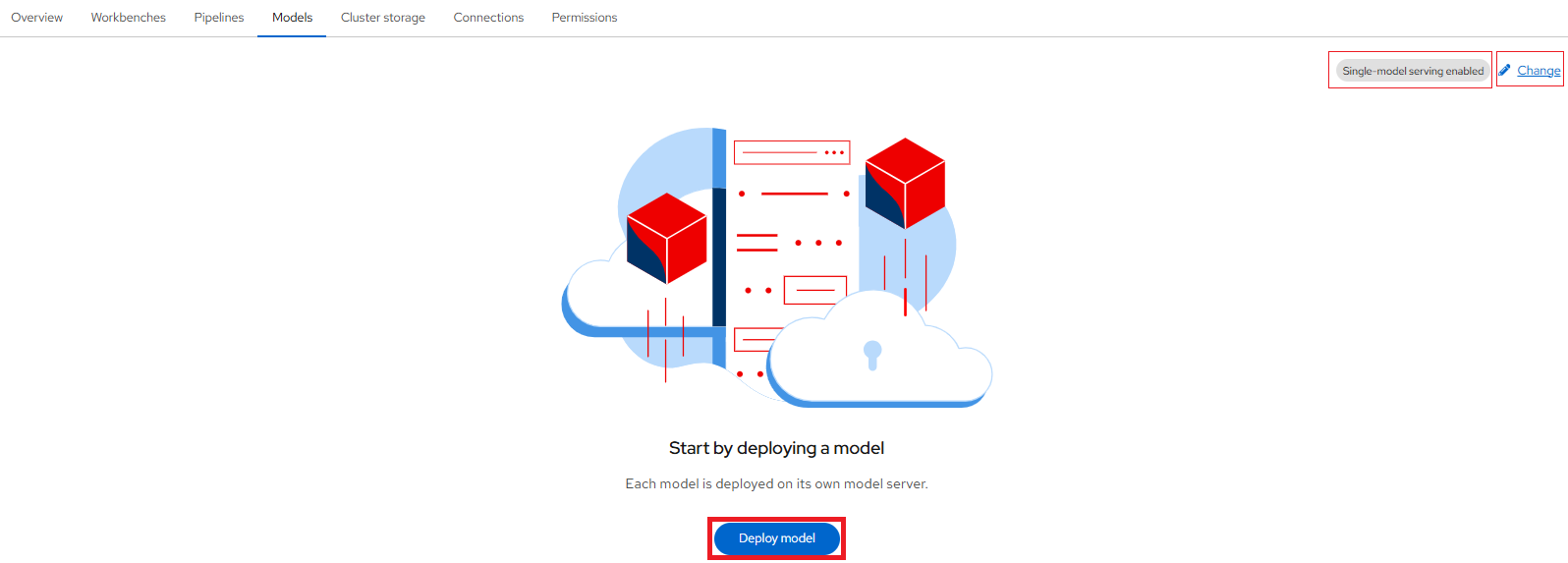

      Single-model serving platform

  5. The Deploy model dialog opens.

Enter the following information for your new model:

  • Model deployment name: Enter a unique name for the model that you are deploying (e.g., "granite").

  • Serving runtime: Select vLLM NVIDIA GPU ServingRuntime for KServe runtime.

  • Model framework (name - version): This is pre-selected as vLLM.

  • Deployment mode: From the Deployment mode list, select Advanced option.

  • Number of model server replicas to deploy: 1.

  • Model server size: This is the amount of resources, CPU, and RAM that will be allocated to your server. Here, you can select Small size.

  • Accelerator: Select NVIDIA A100 GPU.

  • Number of accelerators: 1.

  • Model route: Select the checkbox for "Make deployed models available through an external route" this will enable us to send requests to the model endpoint from outside the cluster.

  • Token authentication: Select the checkbox for "Require token authentication" if you want to secure or restrict access to the model by forcing requests to provide an authorization token, which is important for security. While selecting it, you can keep the populated Service account name i.e. default-name.

  • Source model location:

    i. Select the Connection option from the dropdown list that you created as described here to store the model by using the Existing connection option Connection dropdown list i.e. My Storage.

    Alternatively, you can create a new connection directly from this menu by selecting Create connection option.

    ii. Path: If your model is not located at the root of the bucket of your connection, you must enter the path to the folder it is in i.e. models/granite-3.3-8b-instruct.

  • Configuration parameters: You can customize the runtime parameters in the Configuration parameters section. You don't need to add any arguments here.

For our example, set the Model deployment name to granite, and select Serving runtime as vLLM NVIDIA GPU ServingRuntime for KServe. Choose NVIDIA A100 GPU as the Accelerator, with the Number of accelerators set to 1. Also, ensure that the Deployment mode is set to Advanced.

Please leave the other fields with their default settings, such as Number of model server replicas to deploy set to 1 and Model server size set to Small.

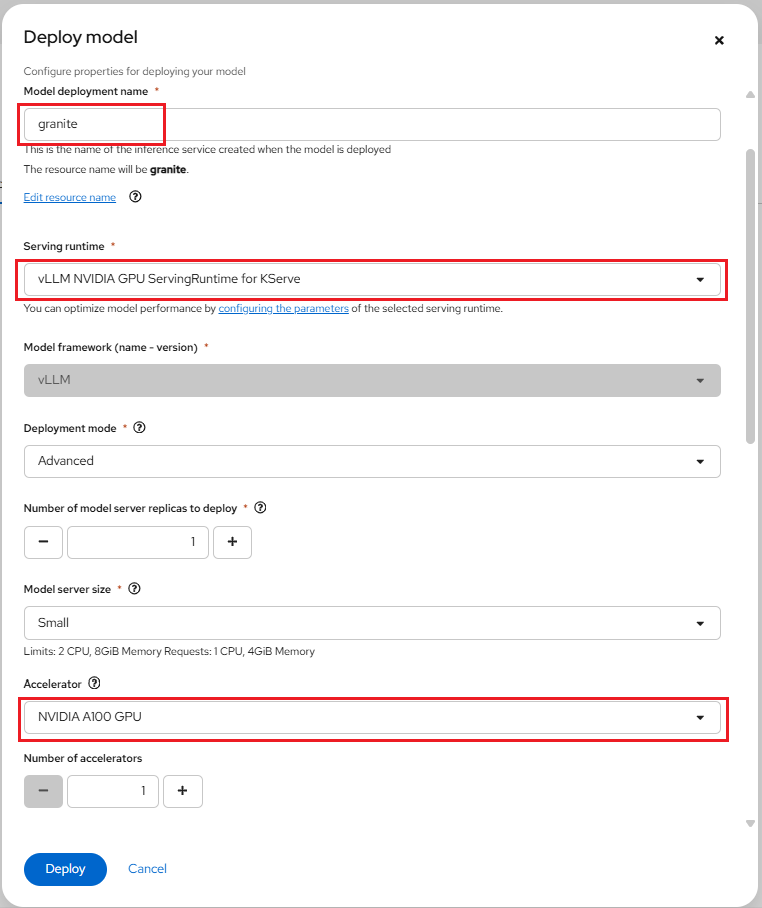

Configure and Deploy Model Info

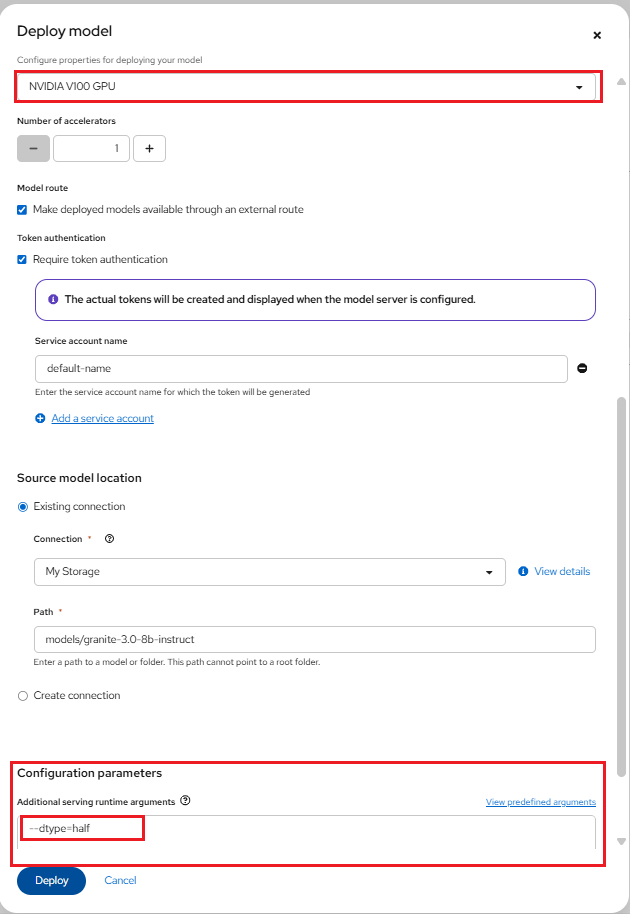

At this point, ensure that both Make deployed models available through an external route and Require token authentication are checked. Please leave the populated Service account name i.e. default-name as it is. Select My Storage as the Connection from the Existing connection, and for the model Path location, enter models/granite-3.3-8b-instruct as the folder path, as shown below:

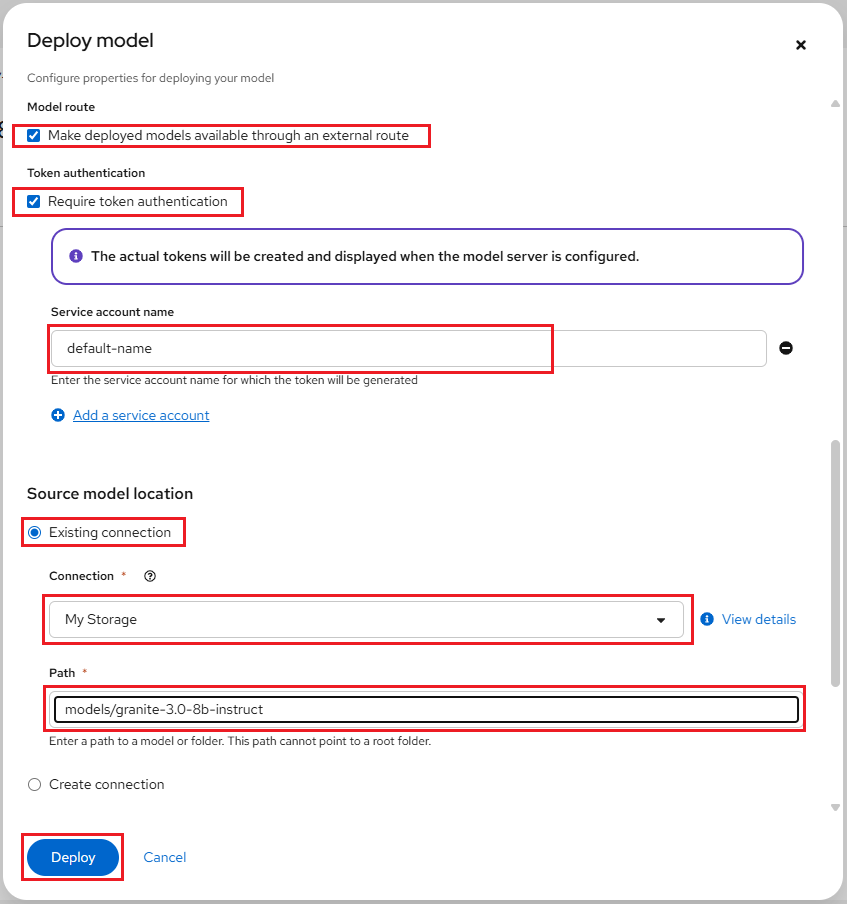

Configure and Deploy Model Route Connection Info

When you are ready to deploy your model, select the Deploy button.

Confirm that the deployed model appears on the Models tab for your project. After some time, once the model has finished deploying, the model deployments page of the dashboard will display a green checkmark in the Status column, indicating that the deployment is complete.

To view details for the deployed model, click the arrow icon to the left of your deployed model name (e.g., granite), as shown below:

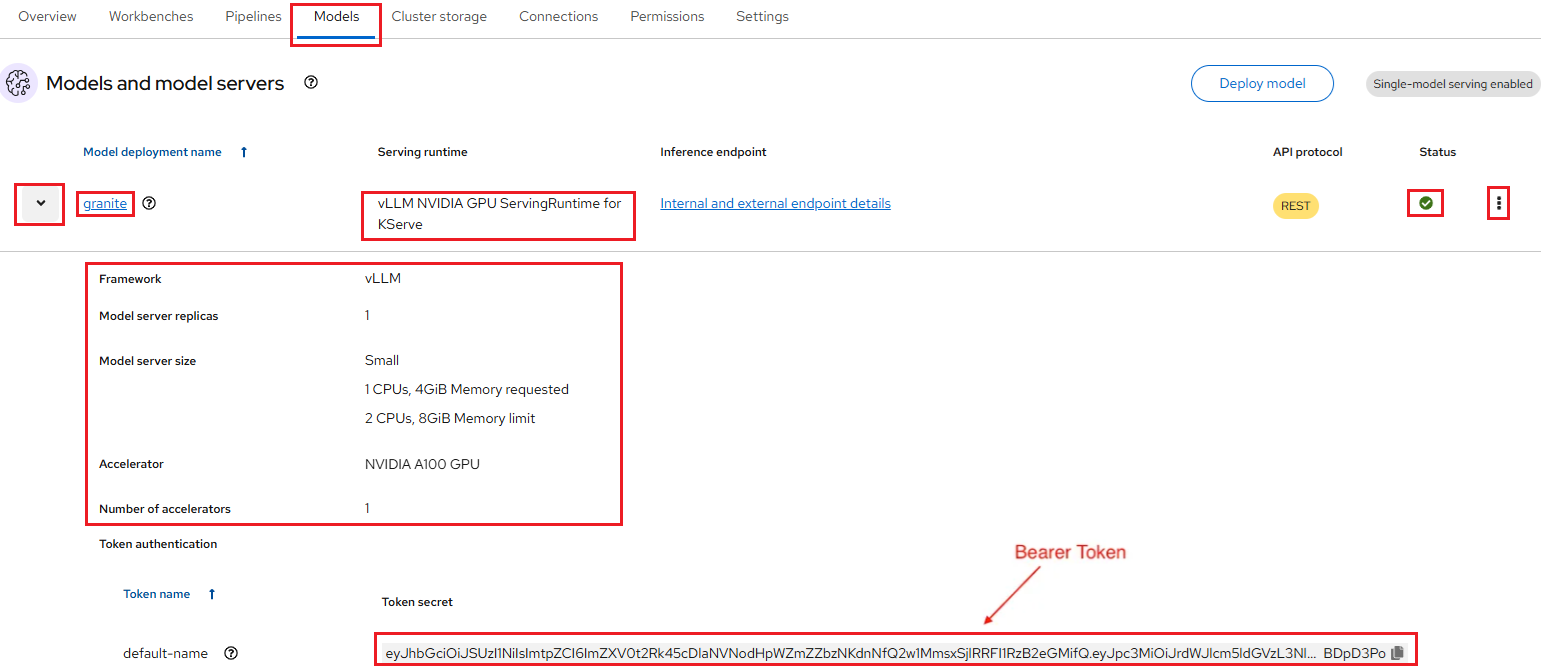

Model Deployed Successfully

You can also modify the configure properties for your deployed model configuration by clicking on the three dots on the right side, and selecting Edit. This will bring back the same configuration pop-up window we used earlier. This menu also has the option for you to Delete the deployed model.

Check the Model API

The deployed model is now accessible through the API endpoint of the model server. The information about the endpoint is different, depending on how you configured the model server.

As in this example, you have exposed the model externally through a route, click on the "Internal and external endpoint details" link in the Inference endpoint section. A popup will display the address for the url and the External (can be accessed from inside or outside the cluster) for the inference endpoints as shown below:

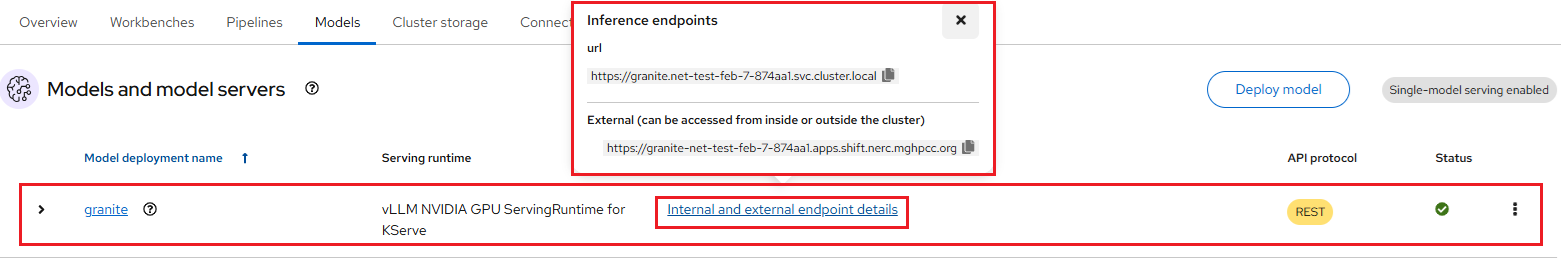

Successfully Deployed Model Inference endpoints Info

Notes:

  • The internal URL displayed is only the base address of the endpoint of the following format: https://name-of-your-model.name-of-your-project-namespace.svc.cluster.local that is accessible only within your cluster locally.

  • The External Inference endpoint displays the full URL of the following format: https://name-of-your-model-name-of-your-project.apps.shift.nerc.mghpcc.org that you can be easily accessed from outside the cluster.

  • Get the Authorization Token for your deployed model by clicking on arrow icon to the left of your deployed model name i.e. "granite". Your Authorization Token is located at the "Token authentication" section under "Token secret", you can just copy the token i.e. YOUR_BEARER_TOKEN directly from the UI.

Now that you have the URL and Authorization Token, you can try querying the model endpoint. We will try multiple queries.

/v1/models

Let's start with the simplest query, the /v1/models API endpoint. This endpoint just returns information about the models being served, I use it to simply see if the model can accept a request and return with some information:

curl -k -X GET https://<url>/v1/models -H "Authorization: Bearer YOUR_BEARER_TOKEN"

Running this command should return an output similar to the below output:

{"object":"list","data":[{"id":"granite","object":"model","created":1743010793,"owned_by":"vllm","root":"/mnt/models","parent":null,"max_model_len":4096,"permission":[{"id":"modelperm-09f199065a2846ec8bbfabea78f72349","object":"model_permission","created":1743010793,"allow_create_engine":false,"allow_sampling":true,"allow_logprobs":true,"allow_search_indices":false,"allow_view":true,"allow_fine_tuning":false,"organization":"*","group":null,"is_blocking":false}]}]}

v1/completions

Now that we know that works, let's test whether the /v1/completions API endpoint works. This endpoint takes a text prompt and returns a completed text response.

curl -k -X POST https://<url>/v1/completions \
    -H "Content-Type: application/json" -H "Authorization: Bearer YOUR_BEARER_TOKEN" \
    -d '{
        "model": "name-of-your-model",
        "prompt": "San Francisco is a",
        "max_tokens": 7,
        "temperature": 0.7
    }'

Running this command should return an output similar to the following:

{"id":"cmpl-40be2aa235c94f38a3b6161c6b93b59c","object":"text_completion","created":1743011184,"model":"granite","choices":[{"index":0,"text":" city known for its diverse population","logprobs":null,"finish_reason":"length","stop_reason":null,"prompt_logprobs":null}],"usage":{"prompt_tokens":4,"total_tokens":11,"completion_tokens":7}}

You can see within "text" the completed response "San Francisco is a... city known for its diverse population".

Changing API Query Parameters

You can change the temperature of the query. The temperature essentially controls the "randomness" of the model's response. The lower the temperature the more deterministic the reponse, the higher the temperature the more random/unpredictible the response. So if you set the temperature to 0, it would always return the same output since there would be no randomness.
