Knative Serving User Guide: Deploying and Managing Serverless Workloads

Here, we walk through the process of deploying a Knative Serving service, see its use of Configuration and Revision, and practice a blue-green deployment and canary release.

In this tutorial, you will:

Deploy an OpenShift Serverless service utilizing the knative client (kn) or the OpenShift client (oc) CLI.
Deploy multiple revisions of a service.
Understand the underlying components of a serverless service.
Understand how Serverless is able to scale-to-zero.
Run different revisions of a service via blue-green deployments and canary release.

Prerequisites

Setup the OpenShift CLI (oc) Tools locally and configure the OpenShift CLI to enable oc commands. Refer to this user guide.
The next step is to install the Knative CLI (kn) on the bootstrap machine used to access the NERC's OpenShift Container Platform (OCP) cluster. The Knative client kn allows you to create Knative resources from the command line or from within Shell scripts. Follow the official documentation to download and install the Knative CLI.

You can verify the Knative CLI installation by running the following command:
```
kn version
```
For more information regarding the CLI commands available for Knative Functions, Serving, and Eventing.

Using Knative Serving

Knative Serving is ideal for running application services inside Kubernetes, offering simplified deployment syntax with automated scale-to-zero and scale-out based on HTTP load. The Knative platform manages your service's deployments, revisions, networking, and scaling. Since Knative Serving can automatically scale down to zero when not in use.

Knative Serving is a platform for streamlined application deployment, traffic-based auto-scaling from zero to N, and traffic-split rollouts.

Other key features include:

Simplified deployment of serverless containers
Traffic-based auto-scaling, including scale-to-zero
Routing and network programming
Point-in-time application snapshots and their configuration

Creating serverless applications

You can create a serverless application by using one of the following methods:

Create a Knative Service from the OCP Web Console by navigating to the Serverless -> Serving menu.
Create a Knative Service by using the Knative (kn) CLI.
Create and apply a Knative Service object as a YAML file, by using the oc CLI.

Deploying a Test InferenceService in Your Namespace for Istio Sidecar Validation

Create a "dummy" InferenceService for your namespace that needs just basic/standalone knative serving features:

apiVersion: serving.kserve.io/v1beta1
kind: InferenceService
metadata:
  annotations:
    security.opendatahub.io/enable-auth: 'true' # (1)!
    serving.knative.openshift.io/enablePassthrough: 'true' # (2)!
    serving.kserve.io/deploymentMode: Serverless # (3)!
    sidecar.istio.io/inject: 'true' # (4)!
    sidecar.istio.io/rewriteAppHTTPProbers: 'true' # (5)!
    serving.kserve.io/stop: 'true' # (6)!
  labels:
    opendatahub.io/dashboard: 'false'
  name: dummy-inference-service-for-knative-serving
spec:
  predictor:
    model:
      modelFormat:
        name: dummy # (7)!
      name: ""

Ensures security/auth is enabled, typically via OpenShift/ODH integration.
Crucial for TLS/HTTPS passthrough, often required when Istio is involved.
Enforces the use of Knative Serving for scale-to-zero and autoscaling.
Injects the Istio proxy sidecar into the resulting pod.
Ensures health probes work correctly with the sidecar.
A KServe instruction to pause or scale the service down immediately.
Placeholder format, indicating this is likely a test/infrastructure resource.

Why Set Up a 'Dummy' InferenceService?

Deploy the provided YAML to create a dummy KServe InferenceService used to validate Knative Serving and Istio Service Mesh integration in an OpenShift Data Hub (ODH) environment. Without this, the Knative Service cannot create an external route.

The issue you encountered (Waiting for load balancer to be ready) occurs when the namespace is not part of the Service Mesh. In this case, Istio cannot create the external routing rules required to expose the service.

This dummy InferenceService uses a non-functional placeholder model but is configured to exercise Knative serverless behavior and Istio sidecar-based routing.

The "dummy" InferenceService can be deployed using the following oc command:

oc apply -f <filename>

Deploy Knative Service in Your Namespace

Procedure:

1. Deploy Knative Services:

After successfully deploying the dummy InferenceService in your project namespace, create a Knative Service with Istio sidecar injection enabled and configure it to use an OpenShift pass-through route using the following example:

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: <service_name> # (1)!
  namespace: <your-namespace> # (2)!
  annotations:
    serving.knative.openshift.io/enablePassthrough: 'true' # (3)!
spec:
  template:
    spec:
      containers:
      - image: <image_url>

Choose an appropriate name for the Service.
Your project's namespace where you want to run the serverless application. If this line is omitted, the namespace currently selected in the OpenShift Web Console will be used as the default.
MANDATORY: Instructs Knative Serving to generate an OpenShift Pass-through enabled route.

Very Important: Always Enable the OpenShift Pass-through Route

Please note that you must add the following annotation to the Service. This annotation is required to ensure proper routing and to prevent external access issues when using Knative with OpenShift and Istio. Only then will your Knative Service work correctly with the Service Mesh.

...
spec:
  template:
    metadata:
      ...
      annotations:
        serving.knative.openshift.io/enablePassthrough: 'true'
        ...
...

For example, we are going to deploy a Knative Serving service, see its use of Configuration and Revision.

Using the Knative CLIUsing YAML

kn service create test-webapp \
  --annotation-service serving.knative.openshift.io/enablePassthrough=true \
  --env RESPONSE="Hello Serverless!" \
  --image docker.io/openshift/hello-openshift

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: test-webapp
  annotations:
    serving.knative.openshift.io/enablePassthrough: 'true'
spec:
  template:
    spec:
      containers:
        - image: docker.io/openshift/hello-openshift
          env:
            - name: RESPONSE
              value: "Hello Serverless!"

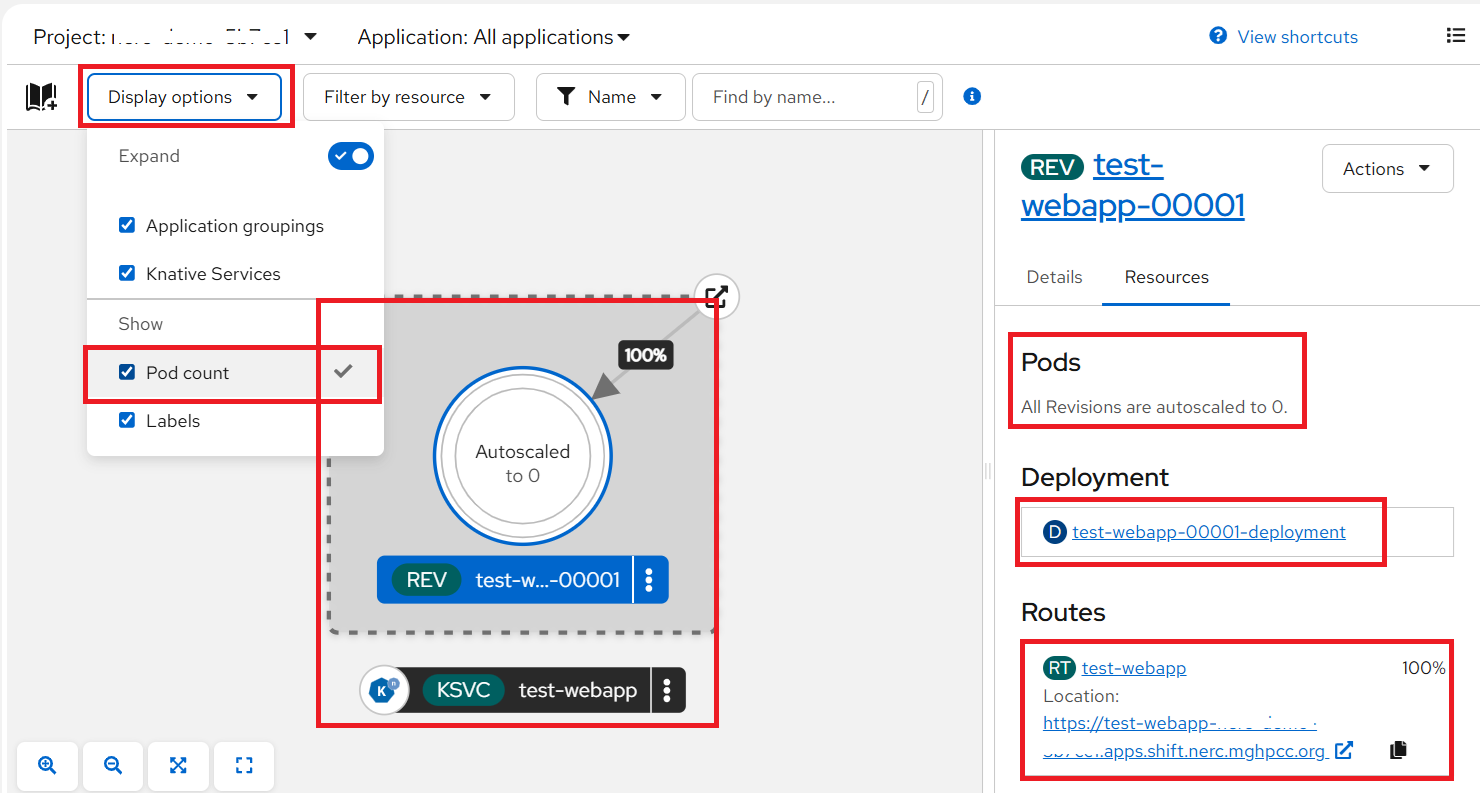

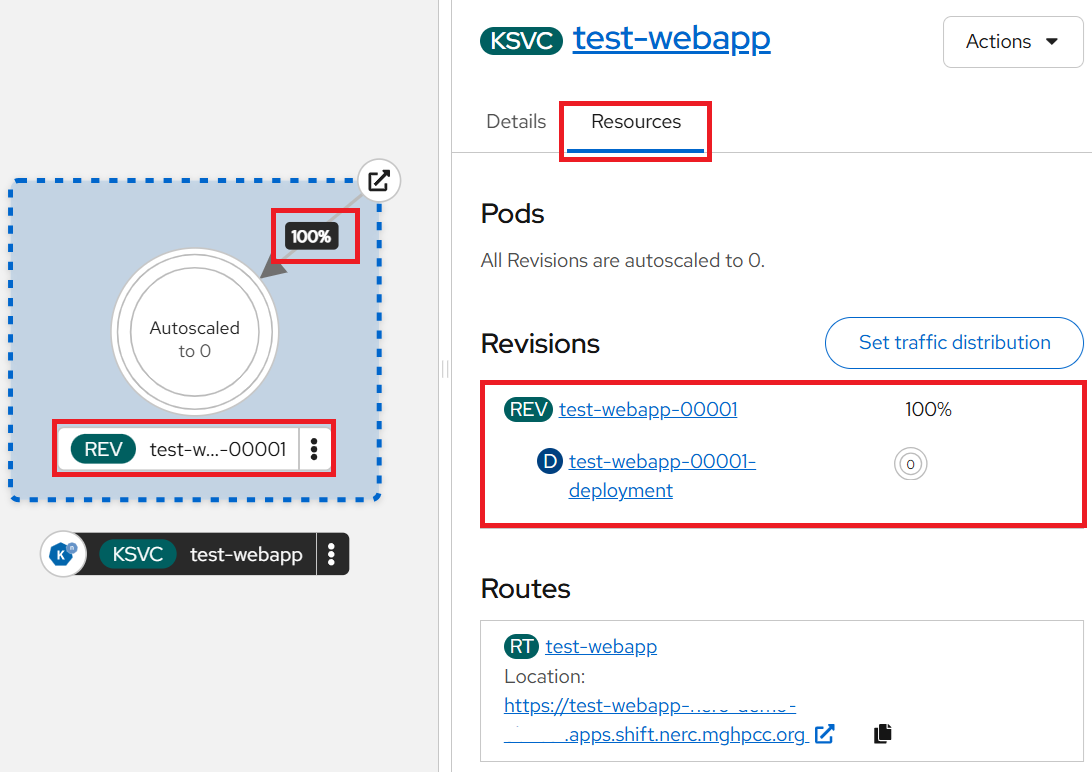

The OpenShift Web Console will display the Knative Service (KSVC) as shown below:

2. Deploy a curl pod to test the connections:

Run the following script on your local terminal:

cat <<EOF | oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: curl
  labels:
    app: curl
spec:
  replicas: 1
  selector:
    matchLabels:
      app: curl
  template:
    metadata:
      labels:
        app: curl
      annotations:
        sidecar.istio.io/inject: 'true'
    spec:
      containers:
      - name: curl
        image: curlimages/curl
        command:
        - sleep
        - "3600"
EOF

3. Verification:

Applying the application service configuration from the previous step creates a route, service, revision, and other resources managed by Knative Serving. You can verify these components using the following command:

Using the Knative CLIUsing YAML

Service:

kn service list

Output:

NAME          URL                                                               LATEST              AGE     CONDITIONS   READY   REASON
test-webapp   https://test-webapp-<your-namespace>.apps.shift.nerc.mghpcc.org   test-webapp-00001   3m16s   3 OK / 3     True

Revisions:

kn revision list

Output:

NAME                SERVICE       TRAFFIC   TAGS   GENERATION   AGE     CONDITIONS   READY   REASON
test-webapp-00001   test-webapp   100%             1            3m17s   4 OK / 4     True

Service:

oc get serving

Output:

NAME                                    URL                                                               READY   REASON
route.serving.knative.dev/test-webapp   https://test-webapp-<your-namespace>.apps.shift.nerc.mghpcc.org   True

NAME                                            LATESTCREATED       LATESTREADY         READY   REASON
configuration.serving.knative.dev/test-webapp   test-webapp-00001   test-webapp-00001   True

NAME                                             CONFIG NAME   GENERATION   READY   REASON   ACTUAL REPLICAS   DESIRED REPLICAS
revision.serving.knative.dev/test-webapp-00001   test-webapp   1            True             0                 0

NAME                                      URL                                                               LATESTCREATED       LATESTREADY         READY   REASON
service.serving.knative.dev/test-webapp   https://test-webapp-<your-namespace>.apps.shift.nerc.mghpcc.org   test-webapp-00001   test-webapp-00001   True

Revisions:

oc get rev \
  --selector=serving.knative.dev/service=test-webapp \
  --sort-by="{.metadata.creationTimestamp}"

4. Invoke Service:

EXTERNAL_URL=$(oc get ksvc test-webapp -o custom-columns=:.status.url --no-headers)
oc exec deployment/curl -it -- curl -ik $EXTERNAL_URL

Output:

HTTP/2 200
content-length: 17
content-type: text/plain; charset=utf-8
date: Sat, 13 Dec 2025 21:31:58 GMT
server: istio-envoy
x-envoy-upstream-service-time: 5627

Hello Serverless!

Controlling Knative Service Visibility (Internal vs External Access)

Use the following commands to control service visibility:

kn service update test-webapp --cluster-local      # Make the service internal
kn service update test-webapp --no-cluster-local   # Expose the service externally

The --cluster-local flag makes the Knative Service accessible only within the cluster, preventing external access. The --no-cluster-local flag exposes the service externally, allowing it to be accessed through an external route.

5. Cleanup:

Delete the resources that were created after testing successful:

Using the Knative CLIUsing YAML

kn service delete test-webapp

oc delete deployment/curl
oc delete ksvc/test-webapp

Creating a service using offline mode

In offline mode, create a local Knative service descriptor file:

kn service create test-webapp-offline \
  --annotation-service serving.knative.openshift.io/enablePassthrough=true \
  --env RESPONSE="Hello Serverless!" \
  --image docker.io/openshift/hello-openshift \
  --target ./ \
  --namespace test

The --target ./ flag offline mode and specifies ./ as the directory for storing the new directory tree.
The --namespace test option places the new service in the 'test' namespace. You can change it to the name of your desired namespace. If you do not use --namespace, and you are logged in to the OCP cluster, the descriptor file is created in the current namespace. Based on the namespace name a new directory will be created.

Output:

Service 'test-webapp-offline' created in namespace 'test'.

Examine the created directory structure:

tree ./

Output:

./
└── test
    └── ksvc
        └── test-webapp-offline.yaml

2 directories, 1 file

The current ./ directory specified with --target contains the new test/ directory that is named after the specified namespace.
The test/ directory contains the ksvc directory, named after the resource type.
The ksvc directory contains the descriptor file test-webapp-offline.yaml, named according to the specified service name i.e. test-webapp-offline.

Use the service descriptor file to create the service on the cluster:

kn service create -f test/ksvc/test-webapp-offline.yaml

AutoScaling

You can review the autoscaler configuration by running the following command:

oc get configmap config-autoscaler -n knative-serving -o yaml

Scale bounds

In the service definition above, note that no annotations are applied in the resource spec. By default, OpenShift Serverless will scale these deployments down to zero running pods and automatically scale them up as load increases. Resource limits can be set through the Kubernetes resource definition.

In the Service resource definition, you do not need to define any compute infrastructure or configure scaling behavior. You only specify the optional minimum and maximum scale. The minimum scale can be set to zero, meaning no pods run until a request arrives, at which point a pod is automatically created with minimal startup delay. This enables compute resources to be used strictly on an as-needed basis.

For example, to specify a minimum of 1 pod and a maximum of 3 pods, add the following syntax:

Using the Knative CLIUsing YAML

kn service create <service_name> --image <image_uri> --scale-min 1 --scale-max 3

...
spec:
  template:
    metadata:
      ...
      annotations:
        autoscaling.Knative.dev/min-scale: "1"
        autoscaling.knative.dev/max-scale: "3"
        ...
...

When testing, add the annotations to set min-scale to 1, so the pod never shuts down. This lets you more easily access logs or open a terminal to examine the state of your function container.

Using the Knative CLIUsing YAML

kn service create test-webapp \
  --annotation-service serving.knative.openshift.io/enablePassthrough=true \
  --env RESPONSE="Hello Serverless!" \
  --image docker.io/openshift/hello-openshift \
  --scale-min 1 \
  --scale-max 3

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: test-webapp
  annotations:
    serving.knative.openshift.io/enablePassthrough: 'true'
spec:
  template:
    metadata:
      annotations:
        autoscaling.Knative.dev/min-scale: "1"
        autoscaling.knative.dev/max-scale: "3"
    spec:
      containers:
        - image: docker.io/openshift/hello-openshift
          env:
            - name: RESPONSE
              value: "Hello Serverless!"

Concurrency

Concurrency defines how many simultaneous requests each application replica can handle at a given time. It can be configured as either a soft limit or a hard limit:

Soft limit: A target number of concurrent requests that is not strictly enforced. During traffic spikes, this limit may be exceeded.

You can set a soft concurrency target for your Knative Service by adding the autoscaling.knative.dev/target annotation to the spec, or by using the kn service command with the appropriate flags, as shown below where the concurrency target is set to 50 requests.
Using the Knative CLIUsing YAML
kn service create <service_name> --image <image_uri> --concurrency-target 50
... spec: template: metadata: ... annotations: autoscaling.knative.dev/target: "50" ... ...
Hard limit: A strictly enforced maximum number of concurrent requests. Once the limit is reached, additional requests are queued until capacity becomes available.

You can specify a hard concurrency limit for your Knative service by modifying the containerConcurrency spec, or by using the kn service command with the correct flags, as shown below where the concurrency limit is set to 50 requests.
Using the Knative CLIUsing YAML
kn service create <service_name> --image <image_uri> --concurrency-limit 50
... spec: template: ... spec: containerConcurrency: 50 ... ...

Traffic splitting

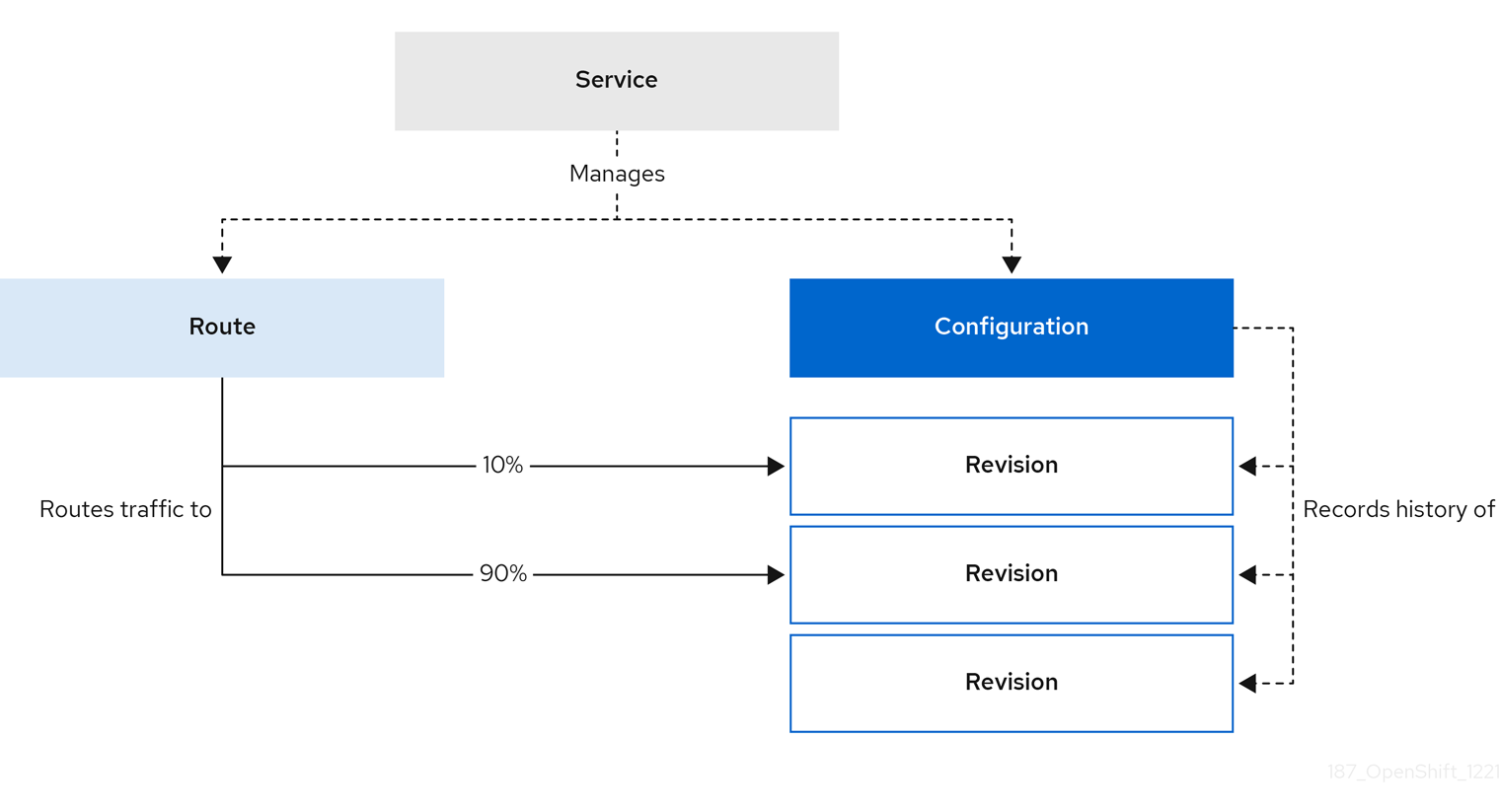

In a Knative application, traffic can be managed using traffic splits. Traffic splits are configured as part of a route, which is managed by a Knative Service.

Configuring a route allows requests to be distributed across different revisions of a service, as defined by the traffic specification in the Knative Service object.

A traffic specification includes one or more revisions, each receiving a defined percentage of traffic. The total traffic allocation must equal 100%, which is validated by Knative. Revisions can reference a specific, named revision or the latest revision, which automatically updates when new revisions are created. Each revision can also be assigned a tag to generate an additional access URL.

The traffic specification can be modified by:

Editing the Service YAML directly
Using the Knative (kn) CLI with the --traffic flag

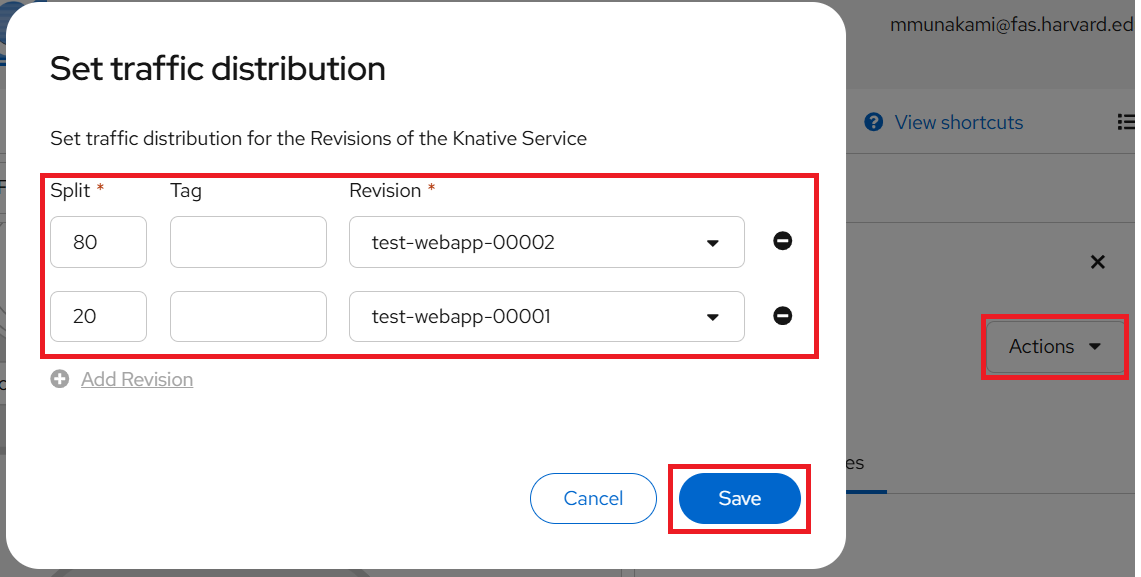

Using the OpenShift web console

Traffic splitting editing the Service YAML directly

When you create a Knative Service, it does not have any default traffic specification settings.

Traffic spec examples:

The following example shows a traffic specification where 100% of traffic is routed to the latest revision of the service. Under the status section, you can see the name of the revision that latestRevision points to:

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: example-service
  namespace: <your-namespace>
spec:
...
  traffic:
  - latestRevision: true
    percent: 100
status:
  ...
  traffic:
  - percent: 100
    revisionName: example-service

The following example shows a traffic specification where 100% of traffic is routed to the revision tagged as current, with the revision name specified as example-service. The revision tagged as latest remains available, even though no traffic is directed to it:

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: example-service
  namespace: <your-namespace>
spec:
...
  traffic:
  - tag: current
    revisionName: example-service
    percent: 100
  - tag: latest
    latestRevision: true
    percent: 0

The following example demonstrates how the traffic specification can be extended to split traffic between multiple revisions. In this case, 50% of traffic is routed to the revision tagged as current and 50% to the revision tagged as candidate. The revision tagged as latest remains available, even though it receives no traffic:

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: example-service
  namespace: <your-namespace>
spec:
...
  traffic:
  - tag: current
    revisionName: example-service-1
    percent: 50
  - tag: candidate
    revisionName: example-service-2
    percent: 50
  - tag: latest
    latestRevision: true
    percent: 0

Traffic splitting using the Knative CLI

Procedure:

Specify the revision of your service and what percentage of traffic you want to route to it by using the --traffic tag with a standard kn service update command:

Example command:

kn service update <service_name> --traffic <revision>=<percentage>

Where:

<service_name> is the name of the Knative Service for which you are configuring traffic routing.
<revision> is the revision that will receive a portion of the traffic. This can be the revision name or a tag assigned using the --tag flag.
<percentage> is the percentage of traffic routed to the specified revision.

Optional: The --traffic flag can be specified multiple times in a single command. For example, if you have a revision tagged as @latest and another revision named stable, you can define the traffic split between them as follows:

kn service update test-webapp --traffic @latest=20,stable=80

Splitting Traffic between Revisions

Procedure:

1. Create and deploy an app as a Knative service:

kn service create test-webapp \
  --annotation-service serving.knative.openshift.io/enablePassthrough=true \
  --env RESPONSE="Hello Serverless!" \
  --image docker.io/openshift/hello-openshift

kn revision list

Output:

NAME                SERVICE       TRAFFIC   TAGS   GENERATION   AGE   CONDITIONS   READY   REASON
test-webapp-00001   test-webapp   100%             1            8s    4 OK / 4     True

2. Create a new Revision:

kn service update test-webapp --scale-max 10 --annotation autoscaling.knative.dev/metric=rps --scale-target 1 --scale-window=10s

kn revision list

Output:

NAME                SERVICE       TRAFFIC   TAGS   GENERATION   AGE    CONDITIONS   READY   REASON
test-webapp-00002   test-webapp   100%             2            27s    3 OK / 4     True
test-webapp-00001   test-webapp                    1            2m5s   3 OK / 4     True

3. Set 100% traffic distribution to the second revision:

kn service update test-webapp --traffic test-webapp-00002=100

4. Create a new Third Revision:

kn service update test-webapp --env RESPONSE="Hello NERC Serverless!" --revision-name=nerc-revision

kn revision list

Output:

NAME                        SERVICE       TRAFFIC   TAGS   GENERATION   AGE     CONDITIONS   READY   REASON
test-webapp-nerc-revision   test-webapp                    3            44s     3 OK / 4     True
test-webapp-00002           test-webapp   100%             2            2m21s   3 OK / 4     True
test-webapp-00001           test-webapp                    1            3m59s   3 OK / 4     True

5. Tag the Third Revision:

kn service update test-webapp --tag @latest=nerc

kn revision list

Output:

NAME                        SERVICE       TRAFFIC   TAGS   GENERATION   AGE     CONDITIONS   READY   REASON
test-webapp-nerc-revision   test-webapp             nerc   3            108s    3 OK / 4     True
test-webapp-00002           test-webapp   100%             2            3m25s   3 OK / 4     True
test-webapp-00001           test-webapp                    1            5m3s    3 OK / 4     True

6. Split Traffic Between the Second (80%) and the Third Tagged Revision (20%):

kn service update test-webapp --traffic nerc=20,test-webapp-00002=80

kn revision list

Output:

NAME                        SERVICE       TRAFFIC   TAGS   GENERATION   AGE     CONDITIONS   READY   REASON
test-webapp-nerc-revision   test-webapp   20%       nerc   3            3m25s   3 OK / 4     True
test-webapp-00002           test-webapp   80%              2            5m2s    3 OK / 4     True
test-webapp-00001           test-webapp                    1            6m40s   3 OK / 4     True

Managing Traffic between revisions by using the OpenShift web console

To split traffic between multiple revisions of an application in the Topology view:

Navigate to the Serverless -> Serving menu. Click the Knative service to see its overview in the side panel.
Click the Resources tab, to see a list of Revisions and Routes for the service.

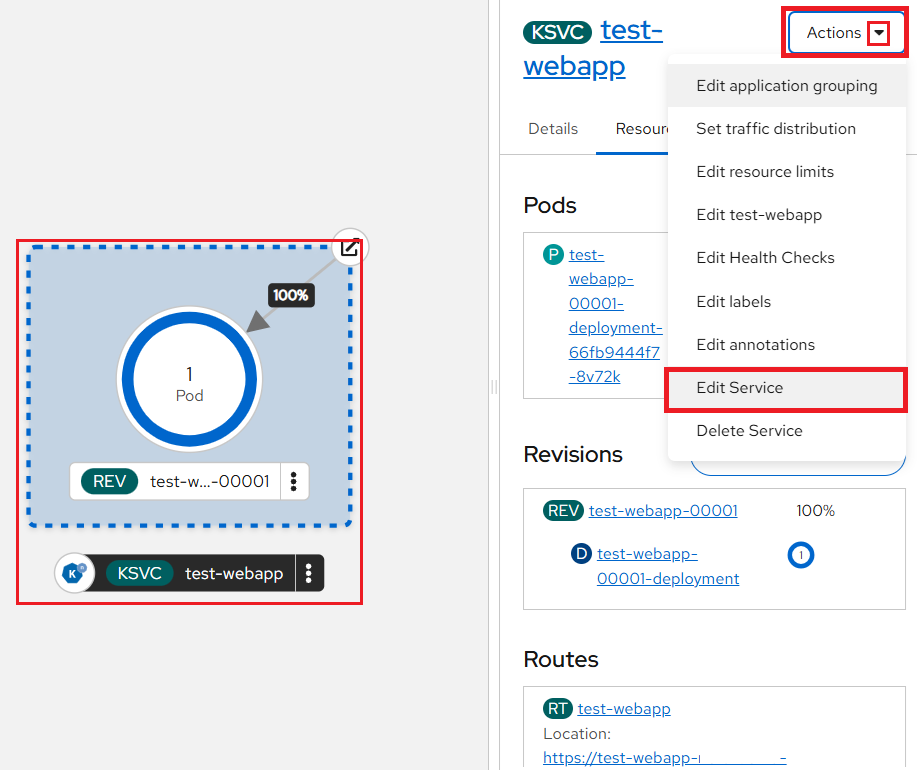

Go to "Actions" -> "Edit Service":

Then modify the service configuration in the YAML editor, and click Save. For example, change the timeoutseconds from 300 to 301.

This change in the configuration triggers a new revision.

In the Topology view, the latest revision is displayed and the Resources tab for the service now displays the two revisions as shown below:
Either, go to "Actions" -> "Set traffic distribution" Or, in the Resources tab, click Set Traffic Distribution button to see the traffic distribution dialog box:

Add the split traffic percentage portion for the two revisions in the Splits field.

Add tags to create custom URLs for the two revisions (Optional)

Click Save to see two nodes representing the two revisions in the Topology view.

Rerouting Traffic Using Blue/green and canary deployments

Blue–green deployment is a release strategy that maintains two identical environments: one active (blue) and one idle (green) - allowing traffic to be switched for seamless updates with minimal downtime and easy rollback.

Developers can then specify exactly what percentage of incoming network traffic should be routed to the new "canary" version versus the existing "stable" version. This granular control is essential for validating a new release with a small subset of real user traffic before a full rollout.

Procedure:

Create and deploy an app as a Knative service:

kn service create test-webapp \
--annotation-service serving.knative.openshift.io/enablePassthrough=true \
--env RESPONSE="Hello Serverless!" \
--image docker.io/openshift/hello-openshift

Find the name of the first revision created when you deployed the service by running the following command:
```
oc get ksvc test-webapp -o=jsonpath='{.status.latestCreatedRevisionName}'
```
Output:
```
test-webapp-00001
```

Add the following YAML to the service spec to send inbound traffic to the revision:

...
spec:
    traffic:
    - revisionName: <first_revision_name>
        percent: 100 # All traffic goes to this revision
...

Verify that you can view your app at the URL output you get from running the following command:
```
oc get ksvc test-webapp
```
Deploy a second revision of your application by changing at least one field in the service's template spec and redeploying it. For example, you can update the service image or an environment variable. Redeploy the service by applying the updated YAML file or using the kn service update command:
```
kn service update test-webapp --env RESPONSE="Hello NERC Serverless!" --revision-name=nerc-revision
```
Find the name of the second, latest revision that was created when you redeployed the service, by running the command:
```
oc get ksvc test-webapp -o=jsonpath='{.status.latestCreatedRevisionName}'
```
Output:
```
test-webapp-nerc-revision
```
At this point, both the first and second revisions of the service are deployed and running.
Update your existing service to create a new test endpoint for the second revision, while directing all other traffic to the first revision.

Example of updated service spec with test endpoint:
```
...
spec:
    traffic:
    - revisionName: <first_revision_name>
        percent: 100  # All traffic is still routed to the first revision
    - revisionName: <second_revision_name>
        percent: 0    # No traffic is routed to the second revision
        tag: v2       # Named route for testing
...
```
After redeploying the service by reapplying the YAML, the second revision is staged. No traffic is routed to this revision at the main URL, and Knative creates a new service named v2 for testing the newly deployed revision.
Get the URL of the new service for the second revision, by running the following command:
```
oc get ksvc test-webapp --output jsonpath="{.status.traffic[*].url}"
```
You can use this URL i.e. https://v2-test-webapp-<your-namespace>.apps.shift.nerc.mghpcc.org to verify that the new version of the application is functioning correctly before routing any traffic to it.

Update your existing service to split traffic evenly, sending 50% of traffic to the first revision and 50% to the second revision.

Example of updated service spec splitting traffic 50/50 between revisions:

...
spec:
    traffic:
    - revisionName: <first_revision_name>
        percent: 50
    - revisionName: <second_revision_name>
        percent: 50
        tag: v2
...

When ready to route all traffic to the new version, update the service to send 100% of traffic to the second revision.

Example of updated service spec sending all traffic to the second revision:
```
...
spec:
    traffic:
    - revisionName: <first_revision_name>
        percent: 0
    - revisionName: <second_revision_name>
        percent: 100
        tag: v2
```
Important Note

If you do not plan to roll back to the first revision, you can remove it instead of setting its traffic to 0%. Non-routable revisions are automatically garbage-collected.
Visit the URL of the first revision to confirm that no traffic is being routed to the old version of the application.

There are many other configurable options to manage the scaling of your workloads, as outlined in the documentation.

For more information, see the documentation on Getting started with OpenShift Serverless using Knative Serving.
