Storage Overview

The NERC OCP supports multiple types of storage.

Glossary of common terms for OCP storage

This glossary defines common terms that are used in the storage content.

Compute Resources

For more details, read the Compute Resources page.

Storage

OCP supports many types of storage, both for on-premise and cloud providers. You can manage container storage for persistent and non-persistent data in an OCP cluster.

Storage class

A storage class provides a way for administrators to describe the classes of storage they offer. Different classes might map to quality of service levels, backup policies, arbitrary policies determined by the cluster administrators.

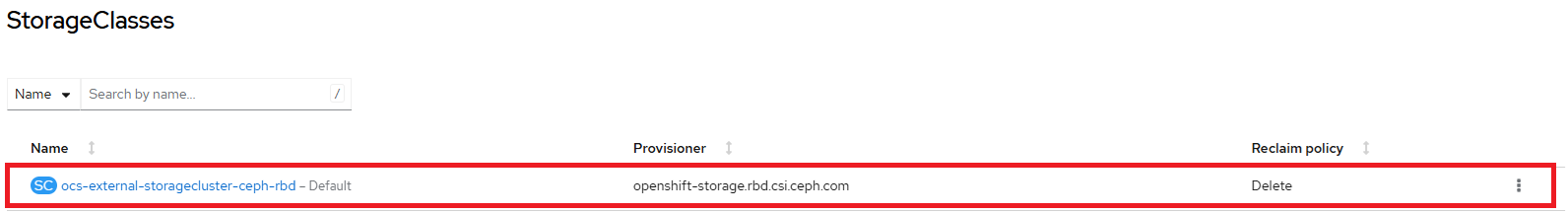

Default Storage Class

Very Important Note

On the NERC OCP cluster, the default StorageClass is ocs-external-storagecluster-ceph-rbd. If you don't specify storageClassName in your PersistentVolumeClaim (PVC), that default will be used.

Storage types

OCP storage is broadly classified into two categories, namely ephemeral storage and persistent storage.

Ephemeral storage

Pods and containers are ephemeral or transient in nature and designed for stateless applications. Ephemeral storage allows administrators and developers to better manage the local storage for some of their operations. For more information about ephemeral storage overview, types, and management, see Understanding ephemeral storage.

Pods and containers can require temporary or transient local storage for their operation. The lifetime of this ephemeral storage does not extend beyond the life of the individual pod, and this ephemeral storage cannot be shared across pods.

For more information on how to specify ephemeral storage (deleted with the pod) to a pod please read this.

Using in-memory emptyDir (tmpfs) on the NERC OCP

You can also use an in-memory emptyDir (RAM-backed tmpfs) on OpenShift that is fast, shared by all containers in the Pod, and wiped when the Pod goes away.

What it is (and why)

  • Set emptyDir.medium: "Memory" to mount a tmpfs inside the Pod.

  • Fast, node-RAM–backed storage that's wiped when the Pod goes away.

  • The volume is shared by all containers in the Pod.

  • Files written there count against the container's memory limit (not ephemeral-storage). To learn more about defining CPU and memory, read this user guide.

YAML example
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mem-cache-demo
spec:
  replicas: 1
  selector:
    matchLabels: { app: mem-cache-demo }
  template:
    metadata:
      labels: { app: mem-cache-demo }
    spec:
      containers:
        - name: app
          image: registry.access.redhat.com/ubi9/ubi-minimal
          command: ["/bin/sh","-c"]
          args: ["python3 -m http.server 8080"]
          resources:
            requests:
              memory: "256Mi"
            limits:
              memory: "512Mi"   # leave headroom for tmpfs usage
          volumeMounts:
            - name: fast-cache
              mountPath: /cache
      volumes:
        - name: fast-cache
          emptyDir:
            medium: Memory
            sizeLimit: 256Mi    # strongly recommended

Sizing & safety tips

  • Always set sizeLimit to prevent the tmpfs from growing until the node or pod runs out of memory.

  • Because it's RAM-backed, ephemeral-storage limits do not apply - use memory requests/limits and sizeLimit.

  • Leave headroom: if total memory (processes + tmpfs) exceeds the memory limit, the container can be OOM-killed.

Persistent storage

Stateful applications deployed in containers require persistent storage. OCP uses a pre-provisioned storage framework called persistent volumes (PV) to allow cluster administrators to provision persistent storage. The data inside these volumes can exist beyond the lifecycle of an individual pod. Developers can use persistent volume claims (PVCs) to request storage requirements. For more information about persistent storage overview, configuration, and lifecycle, see Understanding persistent storage.

Pods and containers can require permanent storage for their operation. OpenShift Container Platform uses the Kubernetes persistent volume (PV) framework to allow cluster administrators to provision persistent storage for a cluster. Developers can use PVC to request PV resources without having specific knowledge of the underlying storage infrastructure.

Persistent volumes (PV)

OCP uses the Kubernetes persistent volume (PV) framework to allow cluster administrators to provision persistent storage for a cluster. Developers can use PVC to request PV resources without having specific knowledge of the underlying storage infrastructure.

Persistent volume claims (PVCs)

You can use a PVC to mount a PersistentVolume into a Pod. You can access the storage without knowing the details of the cloud environment.

Important Note

A PVC is in active use by a pod when a Pod object exists that uses the PVC.

Access modes

Volume access modes describe volume capabilities. You can use access modes to match persistent volume claim (PVC) and persistent volume (PV). The following are the examples of access modes:

Storage Class Description
ReadWriteOnce (RWO) Allows read-write access to the volume by a single node at a time.
ReadOnlyMany (ROX) Allows multiple nodes to read from the volume simultaneously, but only one node can write to it.
ReadWriteMany (RWX) Allows multiple nodes to read from and write to the volume simultaneously.
ReadWriteOncePod (RWOP) Allows read-write access to the volume by multiple pods running on the same node simultaneously.

How to specify Persistent storage using YAML?

Create a PersistentVolumeClaim and mount it in your Pod/Deployment. The cluster's StorageClass handles provisioning.

# 1) Create a PVC
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-pvc
spec:
  accessModes:
    - ReadWriteOnce     # or other Access Mode if your storage supports sharing
  resources:
    requests:
      storage: 10Gi
  storageClassName: ocs-external-storagecluster-ceph-rbd  # omit to use the default
---
# 2) Use the PVC in a Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
spec:
  replicas: 1
  selector:
    matchLabels: { app: my-app }
  template:
    metadata:
      labels: { app: my-app }
    spec:
      securityContext:
        fsGroup: 1001   # helps with write permissions on many storage backends
      containers:
        - name: app
          image: registry.access.redhat.com/ubi9/ubi-minimal
          command: ["/bin/sh","-c"]
          args: ["python3 -m http.server 8080"]
          volumeMounts:
            - name: data
              mountPath: /var/lib/data
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: data-pvc

Quick CLI equivalent (creates & mounts a PVC to /var/lib/data)

oc set volume deploy/my-app \
    --add --name=data --type pvc \
    --claim-name=data-pvc --claim-size=10Gi \
    --mount-path=/var/lib/data \
    --claim-class=ocs-external-storagecluster-ceph-rbd

Per-replica storage (StatefulSet)

StatefulSets can auto-create one PVC per pod via volumeClaimTemplates as shown below:

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: db
spec:
  serviceName: db
  replicas: 3
  selector:
    matchLabels: { app: db }
  template:
    metadata:
      labels: { app: db }
    spec:
      securityContext:
        fsGroup: 1001
      containers:
        - name: db
          image: registry.access.redhat.com/rhel9/postgresql-15
          volumeMounts:
            - name: data
              mountPath: /var/lib/pgsql/data
  volumeClaimTemplates:
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 20Gi
        storageClassName: ocs-external-storagecluster-ceph-rbd  # omit to use the default

Tips & gotchas

  • Permissions (arbitrary UIDs): OpenShift runs containers with a random UID by default. Use spec.securityContext.fsGroup (or an image that supports arbitrary UIDs) so the pod can write to the volume.

  • Access modes: Use ReadWriteOnce (RWO) for a single writer; ReadWriteMany (RWX) if multiple pods must write concurrently (requires an RWX-capable StorageClass).

  • StorageClass: If you omit storageClassName, the NERC OCP cluster's Default StorageClass i.e. ocs-external-storagecluster-ceph-rbd is used. Specify one explicitly to control performance/features.

  • SubPath mounts: To mount only a subdirectory of a volume, set subPath: <dir> under volumeMounts.
