Apache Kafka on NERC OpenShift

Apache Kafka Overview

Apache Kafka is a distributed event streaming platform capable of handling trillions of events per day. Originally developed at LinkedIn and open-sourced in 2011, Kafka is designed for high-throughput, fault-tolerant, and scalable real-time data pipelines and streaming applications.

Kafka uses a publish-subscribe model organized around the following core concepts:

• Broker: A Kafka server that stores and serves messages.
• Topic: A named stream to which producers publish records and from which consumers read records.
• Partition: Topics are split into partitions for parallelism and fault tolerance.
• Producer: A client application that publishes records to one or more topics.
• Consumer: A client application that subscribes to topics and processes records.
• Consumer Group: A group of consumers that collectively consume a topic, with each partition assigned to exactly one member.

Running Kafka on NERC OpenShift is the recommended approach for course workloads requiring persistent, scalable message streaming. This guide uses the Strimzi Operator, which is the standard Kubernetes-native method for deploying Kafka on OpenShift on NERC.

Prerequisites

Before proceeding, ensure you have:

• Access to a NERC OpenShift project
• The oc CLI installed and authenticated to the NERC OpenShift cluster
• Sufficient quota in your project (at least 3 vCPUs and 6 GiB memory recommended for a minimal Kafka cluster)

oc describe quota -n <your-project>

Deploy Kafka Using the Strimzi Operator

Strimzi provides a Kubernetes Operator that manages the full lifecycle of Kafka clusters on OpenShift. On NERC OpenShift, you will install Strimzi into your own namespace.

Install the Strimzi Operator

• Log in to the NERC OpenShift cluster and switch to your project namespace:

  oc login <your-openshift-api-url>
  oc project <your-project>


  For example:

  oc login https://api.edu.nerc.mghpcc.org:6443
  oc project ds551-2026-spring-9ab13b


• Download the Strimzi installation YAML files. Always check the Strimzi releases page for the latest version:

  STRIMZI_VERSION="0.50.1"
  wget https://github.com/strimzi/strimzi-kafka-operator/releases/download/${STRIMZI_VERSION}/strimzi-${STRIMZI_VERSION}.tar.gz
  tar -xzf strimzi-${STRIMZI_VERSION}.tar.gz
  cd strimzi-${STRIMZI_VERSION}


  Very Important Note

  Check the Strimzi compatibility matrix to confirm the Strimzi version supports the Kafka version and Kubernetes/OpenShift version running on NERC. Mismatched versions can prevent the operator from starting. For Kafka 4.0+, use Strimzi 0.50.0 or later.

• Update the installation files to use your project namespace. Replace all occurrences of myproject with your actual namespace:

  sed -i '' 's/namespace: .*/namespace: <your-project>/' install/cluster-operator/*RoleBinding*.yaml


  For example:

  sed -i '' 's/namespace: .*/namespace: ds551-2026-spring-9ab13b/' install/cluster-operator/*RoleBinding*.yaml


  Make sure to update the namespace

  The -n <your-project> flag explicitly specifies the namespace for all subsequent oc commands. Always include this flag when working with multiple projects to avoid accidentally operating on the wrong namespace.

• Apply the Strimzi Cluster Operator installation files:

  oc apply -f install/cluster-operator/ -n <your-project>


• Verify the operator pod is running:

  oc get pods -n <your-project> -l name=strimzi-cluster-operator


  The output should look similar to:

  NAME                                        READY   STATUS    RESTARTS   AGE
  strimzi-cluster-operator-7d96bf8c59-kfzwp   1/1     Running   0          45s


  Note

  It may take 1–2 minutes for the operator pod to reach Running status.

Create a Kafka Cluster

Once the Strimzi Operator is running, you can deploy a Kafka cluster by creating a Kafka custom resource and a KafkaNodePool resource.

• Create a file named kafka-cluster.yaml with the Kafka cluster definition:

  apiVersion: kafka.strimzi.io/v1
  kind: KafkaNodePool
  metadata:
    name: dual-role
    namespace: <your-project>
    labels:
      strimzi.io/cluster: my-cluster
  spec:
    replicas: 1
    roles:
      - broker
      - controller
    storage:
      type: persistent-claim
      size: 1Gi
  ---
  apiVersion: kafka.strimzi.io/v1beta2
  kind: Kafka
  metadata:
    name: my-cluster
    namespace: <your-project>
  spec:
    kafka:
      version: 4.1.1
      listeners:
        - name: plain
          port: 9092
          type: internal
          tls: false
        - name: tls
          port: 9093
          type: internal
          tls: true
      config:
        offsets.topic.replication.factor: 1
        transaction.state.log.replication.factor: 1
        transaction.state.log.min.isr: 1
        default.replication.factor: 1
        min.insync.replicas: 1
    entityOperator:
      topicOperator: {}
      userOperator: {}


  Very Important Note

  • Kafka 4.0+ requires KafkaNodePool with both broker and controller roles for KRaft (Kraft Raft) consensus mode operation.
  • This configuration uses persistent storage (1Gi) suitable for testing and demo purposes. For production or larger workloads, increase the size value or use a specific storageClass. See the Strimzi storage documentation for details.
  • Make sure the KafkaNodePool metadata includes the label strimzi.io/cluster: my-cluster to link it to the Kafka resource.

• Apply the Kafka cluster definition:

  oc apply -f kafka-cluster.yaml -n <your-project>


• Watch the cluster come up. It may take 3–5 minutes for all pods to reach Running status:

  oc get pods -n <your-project> -l strimzi.io/cluster=my-cluster -w


  A healthy cluster will show output similar to:

  NAME                                          READY   STATUS    RESTARTS   AGE
  my-cluster-dual-role-0                        1/1     Running   0          3m
  my-cluster-entity-operator-6d7f9c7d4b-xqtlp   2/2     Running   0          2m


  Note about Kafka 4.0+ Differences

  In Kafka 4.0+: - There are no ZooKeeper pods. The broker manages its own metadata using KRaft. - Pod names follow the pattern <cluster-name>-<nodepool-name>-<id>. - With this single-node setup using dual-role, you'll see pods named my-cluster-dual-role-0.

Create a Kafka Topic

• Create a file named kafka-topic.yaml:

  apiVersion: kafka.strimzi.io/v1beta2
  kind: KafkaTopic
  metadata:
    name: my-topic
    namespace: <your-project>
    labels:
      strimzi.io/cluster: my-cluster
  spec:
    partitions: 3
    replicas: 1
    config:
      retention.ms: 7200000
      segment.bytes: 1073741824


• Apply the topic:

  oc apply -f kafka-topic.yaml -n <your-project>


• Verify the topic was created:

  oc get kafkatopic my-topic -n <your-project>


  Expected output:

  NAME       CLUSTER      PARTITIONS   REPLICATION FACTOR   READY
  my-topic   my-cluster   3            1                    True


Test the Kafka Cluster

Strimzi ships with pre-built container images with Kafka command-line tools that you can use to verify your cluster is working correctly.

Run a Producer

The producer tool lets you send messages to a Kafka topic. In interactive mode, you can type messages directly:

• Start a producer pod in interactive mode:

  oc run kafka-producer -ti \
    --image=quay.io/strimzi/kafka:0.50.1-kafka-4.1.1 \
    --rm=true --restart=Never \
    -n <your-project> \
    -- bash -c 'bin/kafka-console-producer.sh \
      --bootstrap-server my-cluster-kafka-bootstrap:9092 \
      --topic my-topic'


  The -ti flags enable interactive terminal mode, which allows you to type messages at a prompt. The --rm=true flag automatically removes the pod after it exits.

• At the prompt, type test messages and press Enter after each one:

  > Hello from NERC OpenShift!
  > This is a Kafka test message.


  Press Ctrl+C to stop the producer and exit.

  Important: Interactive Mode (-ti --rm)

  The -ti --rm flags work together to create an interactive session that automatically cleans up the pod. Do not use these flags in scripts or CI/CD pipelines—instead, pipe your messages to stdin or use a heredoc. For example:

  echo -e "message1\nmessage2" | oc run kafka-producer \
    --image=quay.io/strimzi/kafka:0.50.1-kafka-4.1.1 \
    --restart=Never \
    -n <your-project> \
    -i \
    -- bin/kafka-console-producer.sh \
      --bootstrap-server my-cluster-kafka-bootstrap:9092 \
      --topic my-topic


Run a Consumer

• In a separate terminal, start a consumer pod to read messages from the beginning:

  oc run kafka-consumer -ti \
    --image=quay.io/strimzi/kafka:0.50.1-kafka-4.1.1 \
    --rm=true --restart=Never \
    -n <your-project> \
    -- bash -c 'bin/kafka-console-consumer.sh \
      --bootstrap-server my-cluster-kafka-bootstrap:9092 \
      --topic my-topic \
      --from-beginning'


  You should see the messages published by the producer:

  Hello from NERC OpenShift!
  This is a Kafka test message.


  Press Ctrl+C to stop the consumer.

  Consumer Groups

  To test multiple consumers sharing a topic workload, add the flag --group <group-name> to the consumer command. Each consumer in the same group will receive messages from a distinct subset of partitions.

Connecting Applications to Kafka

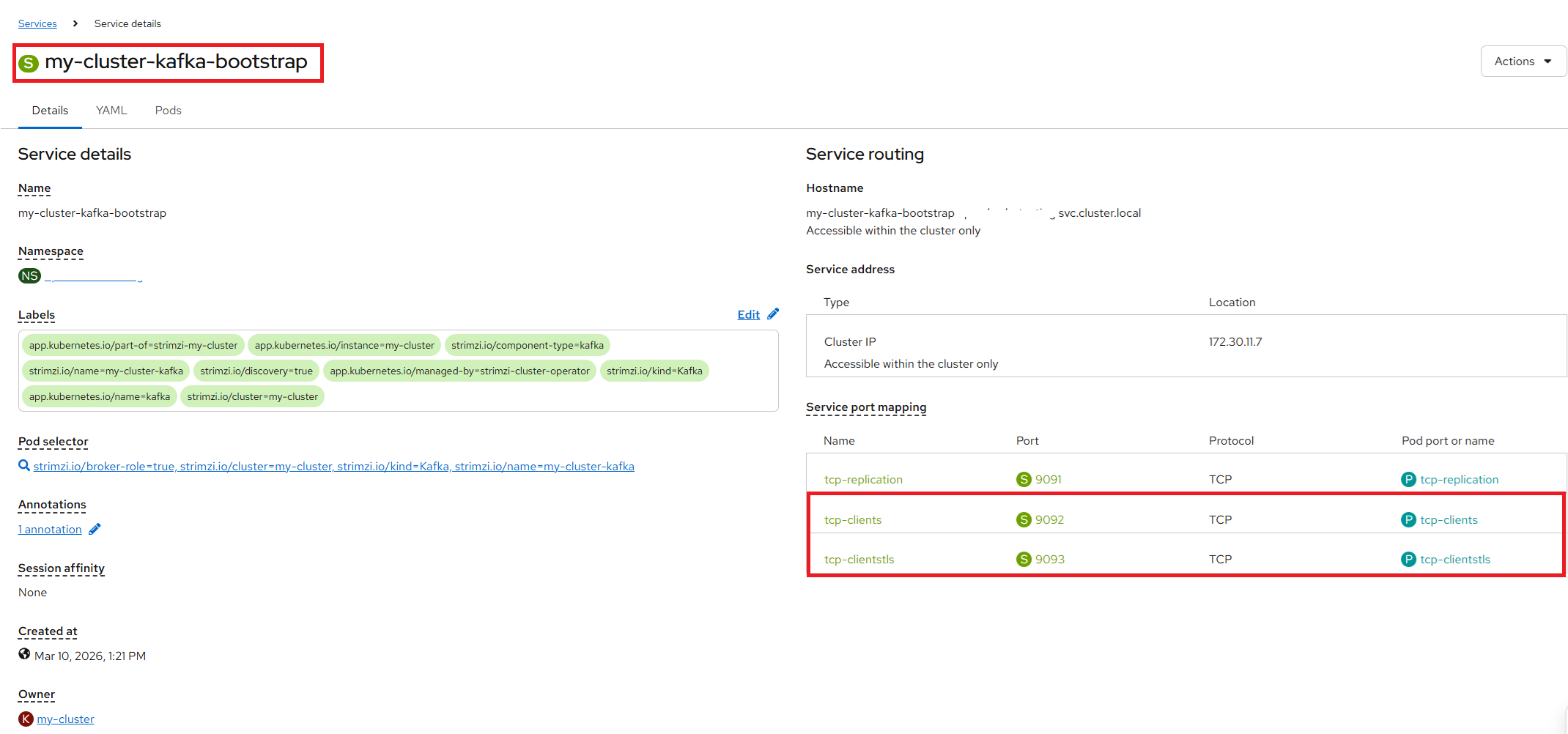

Applications running inside the same OpenShift project can reach the Kafka broker using the internal bootstrap address:

my-cluster-kafka-bootstrap:9092   # plaintext (no TLS)
my-cluster-kafka-bootstrap:9093   # TLS

For Python applications, use the kafka-python or confluent-kafka client libraries:

from kafka import KafkaProducer, KafkaConsumer

# Producer example
producer = KafkaProducer(bootstrap_servers='my-cluster-kafka-bootstrap:9092')
producer.send('my-topic', b'Hello from Python!')
producer.flush()

# Consumer example
consumer = KafkaConsumer(
    'my-topic',
    bootstrap_servers='my-cluster-kafka-bootstrap:9092',
    auto_offset_reset='earliest',
    group_id='my-group'
)
for msg in consumer:
    print(f"Received: {msg.value.decode()}")

Clean Up Resources

When you are finished, remove all Kafka resources to free up project quota:

# Delete the Kafka topic
oc delete kafkatopic my-topic -n <your-project>

# Delete the Kafka cluster (also removes Entity Operator pods)
oc delete kafka my-cluster -n <your-project>

# If using KafkaNodePool (in some configurations), delete it as well
oc delete kafkanodepool dual-role -n <your-project> 2>/dev/null || true

# Remove the Strimzi Operator
oc delete -f install/cluster-operator/ -n <your-project>
