MLflow Server Setup

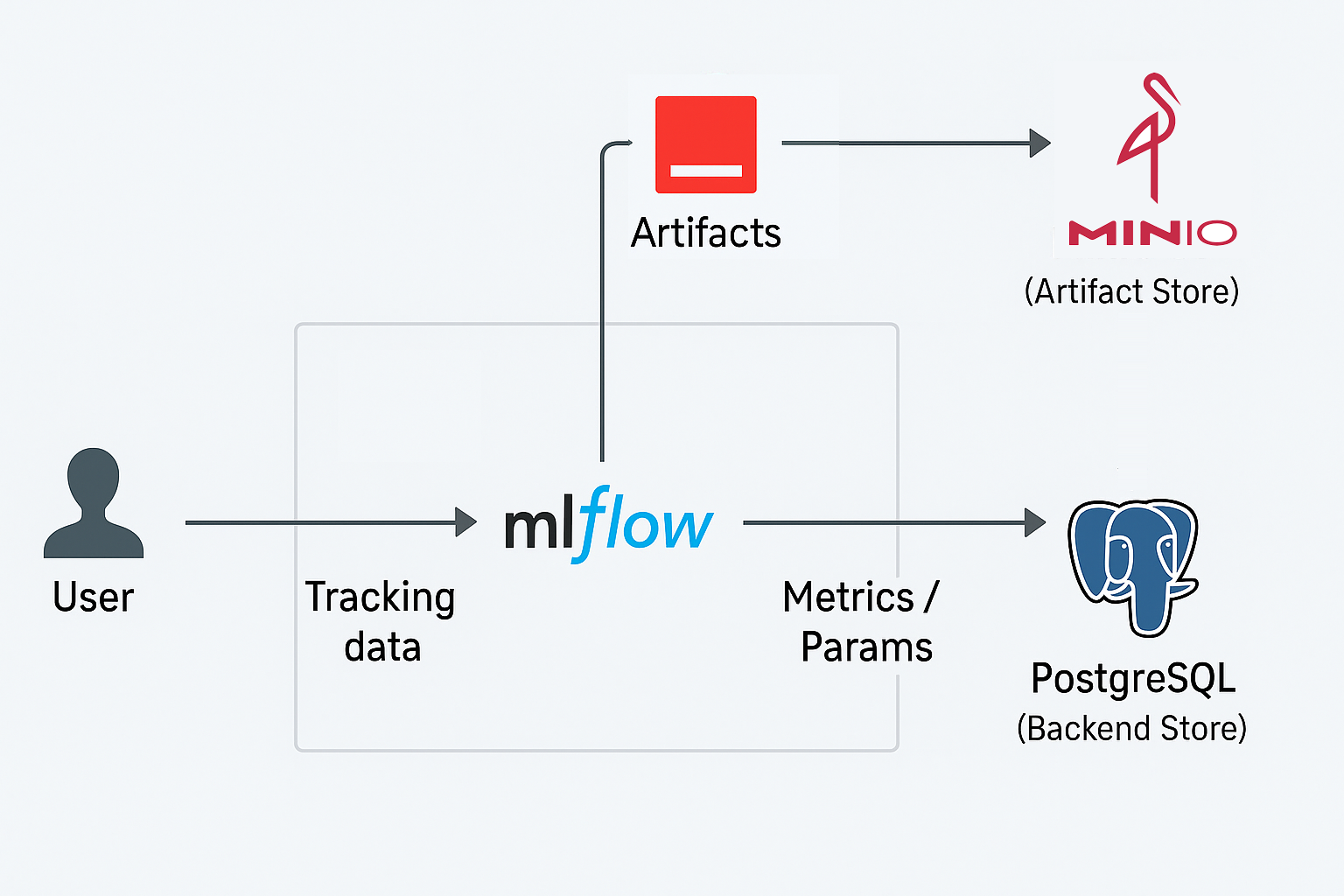

Our MLflow Server Setup has a straightforward architecture, as illustrated in the figure below:

It consists of three main components: a backend store that holds experiment metadata (such as hyperparameters and metrics), an artifact store for storing all artifacts (like model files), and the MLflow server, which provides an API and a UI for viewing and recording this information.

In our setup, we are going to use:

PostgreSQL database - for storing MLflow metadata

MinIO S3 Storage - for storing the MLflow artifacts such as model training files (such as models, data, and visualizations, etc.). These artifacts are crucial for reproducing and understanding the results of a machine learning experiment. To manage and store these artifacts in a scalable, durable, and secure manner, an S3 bucket is required.

Standalone Deployment of MLflow Server

• Prerequisites:

  Setup the OpenShift CLI (oc) Tools locally and configure the OpenShift CLI to enable oc commands. Refer to this user guide.

Deployment procedure

1. Clone or navigate to this repository.

   To get started, clone the repository using:

   git clone https://github.com/nerc-project/llm-on-nerc.git
   cd llm-on-nerc/mlflow


2. In the standalone folder, you will find the following YAML files that allow you to easily deploy a MLflow infrastructure:

   • 01-mlflow-postgres.yml: Defines all objects required to setup a standalone PostgreSQL database.

     This allow allow you to set your own database info via Secrets:

     • database-name: vectordb # Change this with your own value

     • database-password: vectordb # Change this with your own value

     • database-user: vectordb # Change this with your own value

   • 02-mlflow-minio.yml: Defines all objects required to setup a MinIO object storage instance:

     • Deploys a MinIO instance in your project namespace.

     • Creates one storage bucket within the MinIO instance named as mlflow-bucket.

     • Generates a random Root User, which can also be used as the Access Key, and a Root User Password, which serves as the Secret Key for accessing both the MinIO API and the MinIO Console.

     • Installs all required network policies.

   • 03-mlflow-server.yml: Creates a MLflow Server that connects

   • 04-mlflow-others.yml: Creates the mlflow-test-connection pod to test the MLflow server connection. And also creates the mlflow-test-training pod to run a test experiment by submitting a sample training job to the MLflow server.

     Note

     The mlflow-test-connection and mlflow-test-training pods will be removed after the initial run.

You can run this oc command: oc apply -f ./standalone/. to execute all of the above described YAML files located in the standalone folder at once.

oc apply -f ./standalone/.

secret/mlflow-postgresql-secret created
persistentvolumeclaim/mlflow-postgresql-pvc created
deployment.apps/mlflow-postgresql-deployment created
service/mlflow-postgresql-service created
serviceaccount/mlflow-minio-setup created
rolebinding.rbac.authorization.k8s.io/mlflow-minio-setup-edit created
persistentvolumeclaim/mlflow-minio-pvc created
deployment.apps/mlflow-minio-deployment created
job.batch/create-minio-buckets created
job.batch/create-mlflow-minio-root-user created
service/mlflow-minio-service created
route.route.openshift.io/mlflow-minio-console created
route.route.openshift.io/mlflow-minio-s3 created
deployment.apps/mlflow-deployment created
service/mlflow-service created
route.route.openshift.io/mlflow-route created
pod/mlflow-test-connection created
pod/mlflow-test-training created

Clean Up

To delete all resources if not necessary just run oc delete -f ./standalone/..

Usage

1. Go to the NERC's OpenShift Web Console.

2. Click on the Perspective Switcher drop-down menu and select Developer.

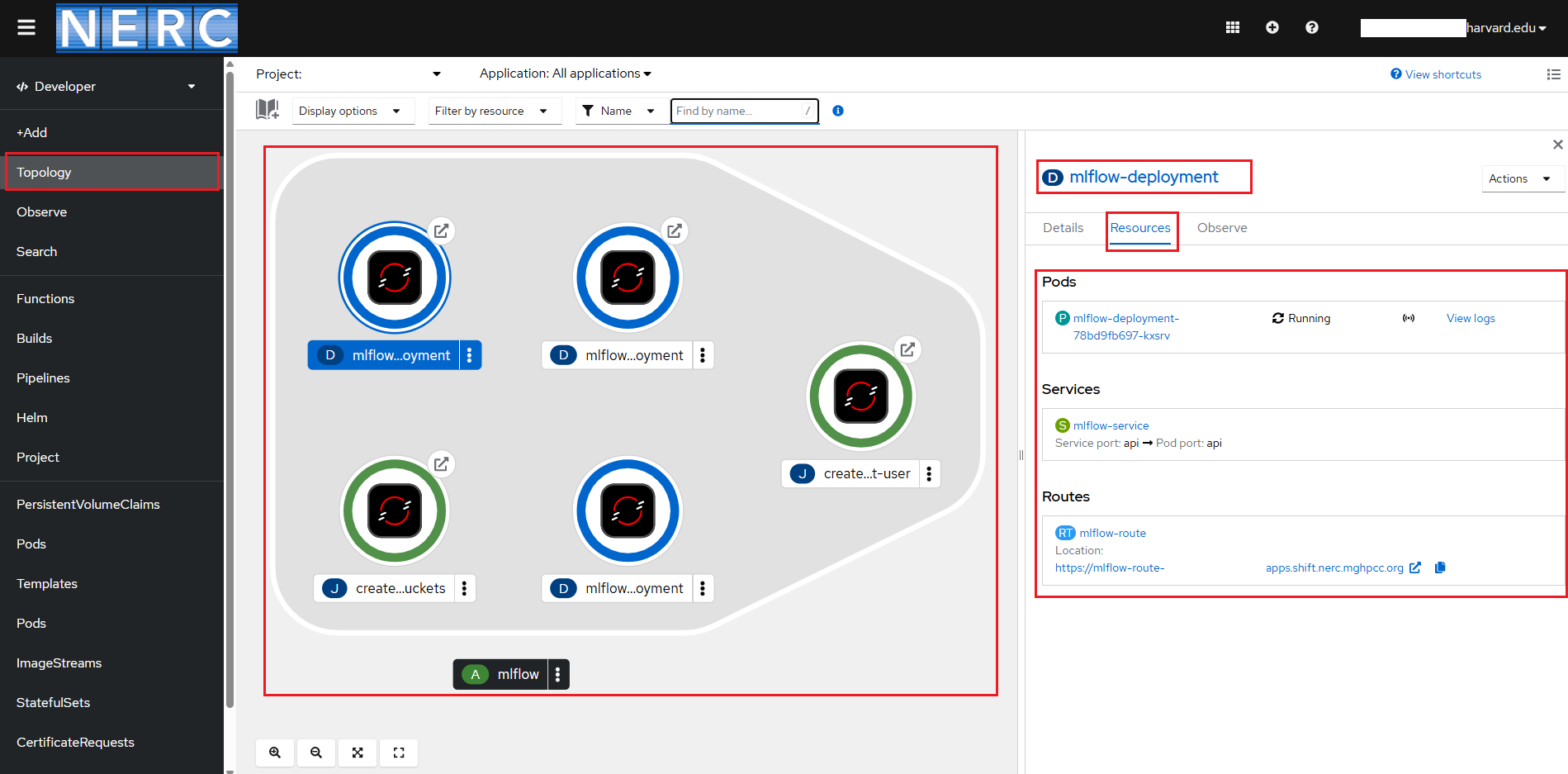

3. In the Navigation Menu, click Topology view and make sure that you are on the MLflow project.



4. Check the mlflow-deployment pod circle that is in dark blue color (this means it has finished deploying successfully and the pod is "Running").

   The API is now accessible at the endpoints:

   • defined by your Service, accessible internally on port 5000 using http.

     This is accessible within the cluster only, such as from the NERC RHOAI Workbench hosted Jupyter Notebooks or another pod within your project namespace.

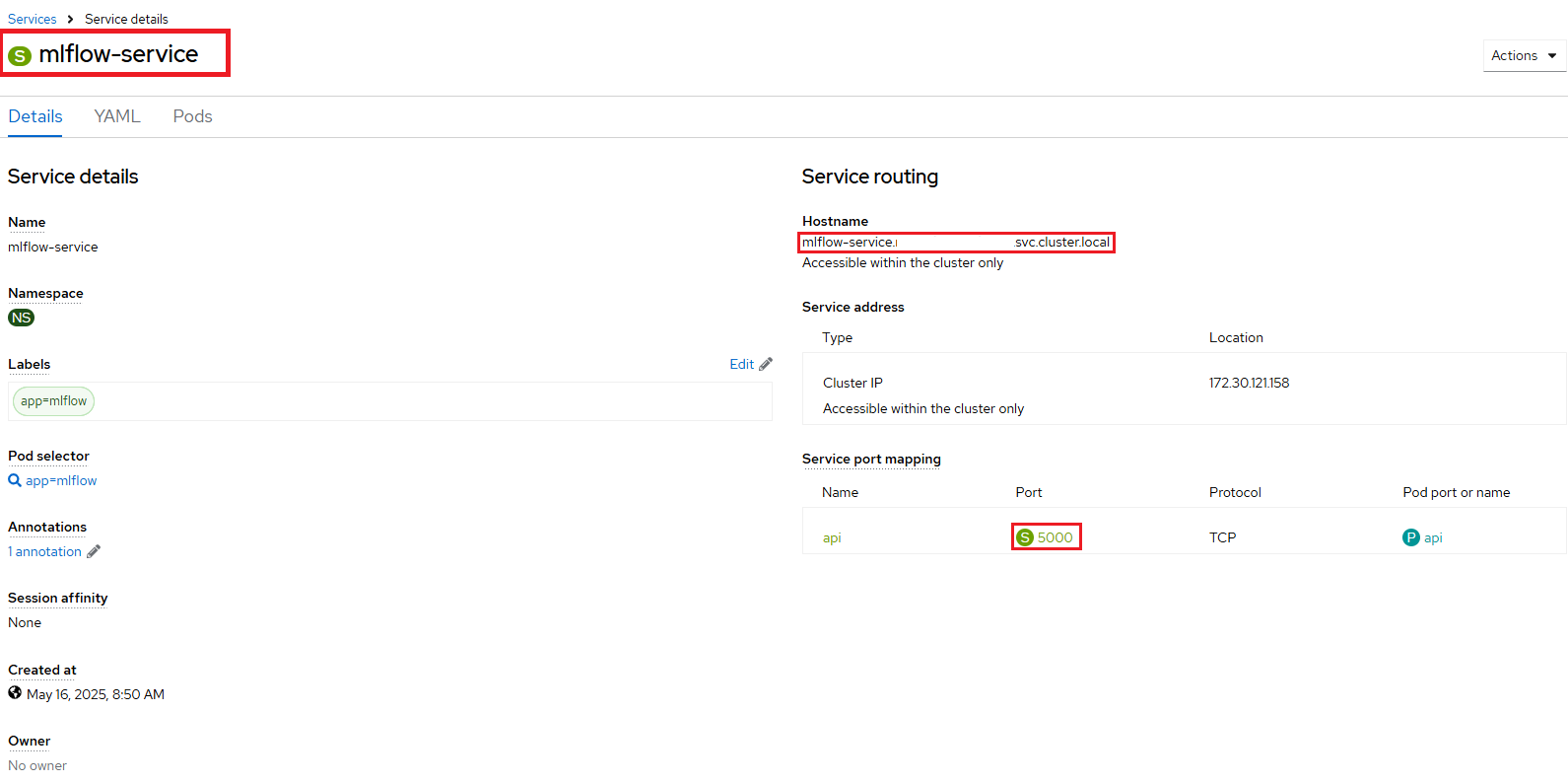

     You can use either the service name or the fully qualified internal Hostname for service routing, as shown below:

     • Option 1: Using the service name i.e. http://mlflow-service:5000

     • Option 2: Using the full internal hostname i.e. http://mlflow-service.<your-namespace>.svc.cluster.local:5000



   • defined by your Route, accessible externally through https, e.g. https://mlflow-route-<your-namespace>.apps.shift.nerc.mghpcc.org.

     Accessing MLflow GUI Dashboard:

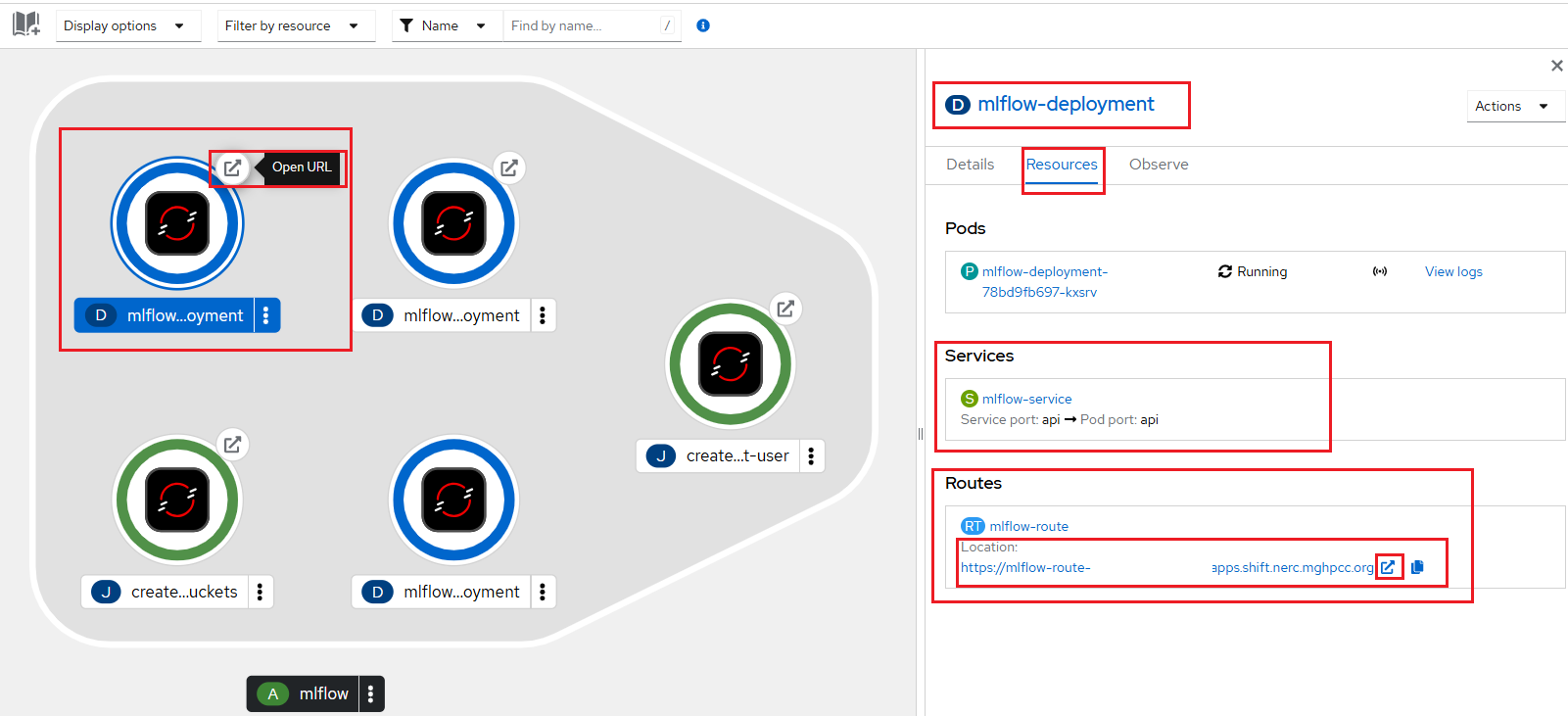

     When the application has been deployed successfully, you can either open the application URL using the Open URL icon in the top right corner of the Pod's circle as shown below or you can naviate to the route URL by navigating to the "Routes" section under the Location path as shown below:

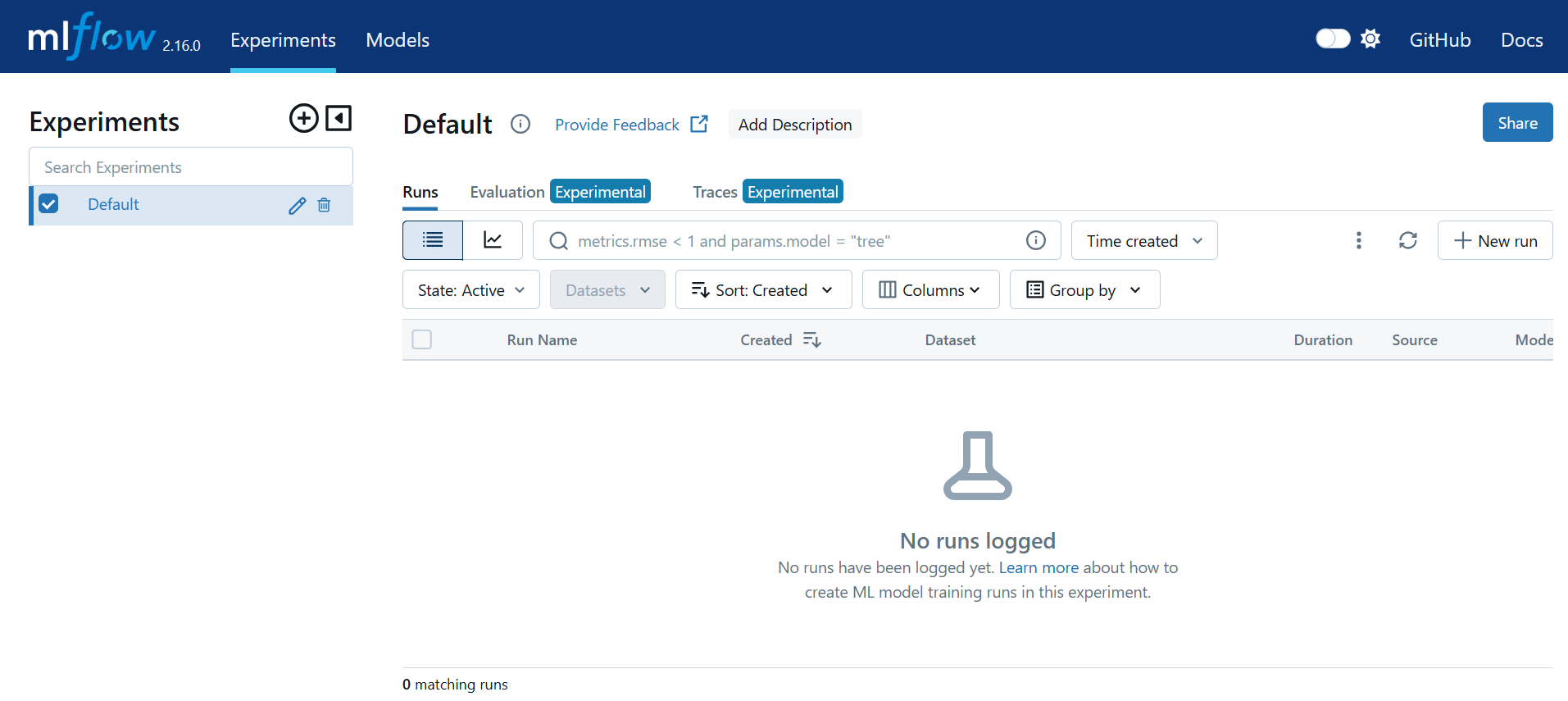

     This show the MLflow GUI as shown below:



Adding MLflow to Training Code

import mlflow
from sklearn.linear_model import LogisticRegression

# Set the tracking URI to your remote MLflow server

# This Route endpoint is accessible externally over **HTTPS**:
mlflow.set_tracking_uri("https://mlflow-route-<your-namespace>.apps.shift.nerc.mghpcc.org")  # Replace with your own remote server's route

# Alternatively: Set the tracking URI to a local MLflow server's service endpoint. This is accessible internally over **HTTP** on the specified port.

# This option is accessible within the cluster only, such as from:
# -   NERC RHOAI Workbench (Jupyter Notebooks)
# -   Another pod within your project namespace

# You can use either the service name or the fully qualified internal Hostname:

# Option 1: Using the service name
# mlflow.set_tracking_uri("http://mlflow-service:5000")

# Option 2: Using the full internal Hostname
# mlflow.set_tracking_uri("http://mlflow-service.<your-namespace>.svc.cluster.local:5000")

# Setting the experiment
mlflow.set_experiment("my-experiment")

if __name__ == "__main__":
    # Enabling automatic logging for scikit-learn runs
    mlflow.sklearn.autolog()

    # Starting a logging run
    with mlflow.start_run():
        # train

Examples

Set up your Python Virtual environment and install all required packages by running: pip install -r examples/requirements.txt inside the activated virtual environment.

Then you can run the following python experiment scripts:

• 01-test_remote.py: Please open and edit the Python file to set the tracking URI to your own remote MLflow server and then run:

  (venv)$ python examples/01-test_remote.py
  2025/05/15 18:36:13 INFO mlflow.tracking.fluent: Experiment with name 'test_experiment1' does not exist. Creating a new experiment.
  Run logged successfully!

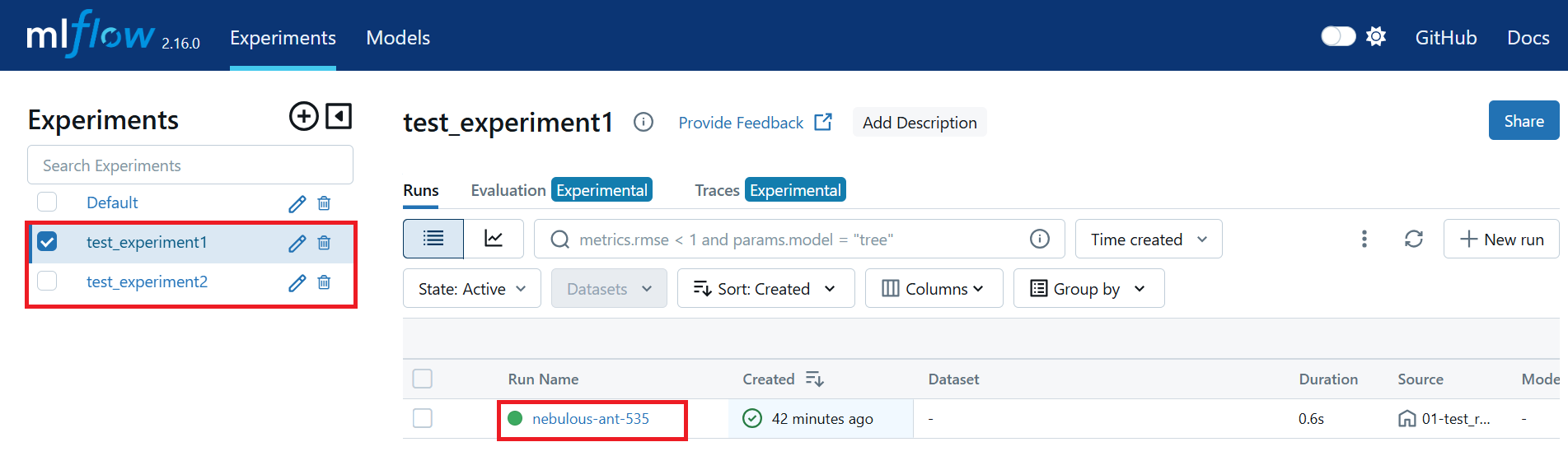

  🏃 View run nebulous-ant-535 at: https://mlflow-route-<your-namespace>.apps.shift.nerc.mghpcc.org/#/experiments/1/runs/55f01904bd914be880fe9fd1fdbcc515
  🧪 View experiment at: https://mlflow-route-<your-namespace>.apps.shift.nerc.mghpcc.org/#/experiments/1


• 02-test_remote.py: Please open and edit the Python file to set the trackin URI to your own remote MLflow server. Also, you need to set the MinIO S3 endpoint URL to your MinIO server API and the MinIO S3 credentials i.e. AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY and then run:

  (venv)$ python examples/02-test_remote.py
  https://mlflow-route-<your-namespace>.apps.shift.nerc.mghpcc.org
  2025/05/15 18:36:34 INFO mlflow.tracking.fluent: Experiment with name 'test_experiment2' does not exist. Creating a new experiment.
  Artifact sample_plot.png logged successfully!
  🏃 View run painted-cow-955 at: https://mlflow-route-<your-namespace>.apps.shift.nerc.mghpcc.org/#/experiments/2/runs/05ce7b095b5049e0ad72e0ef25cf48e3

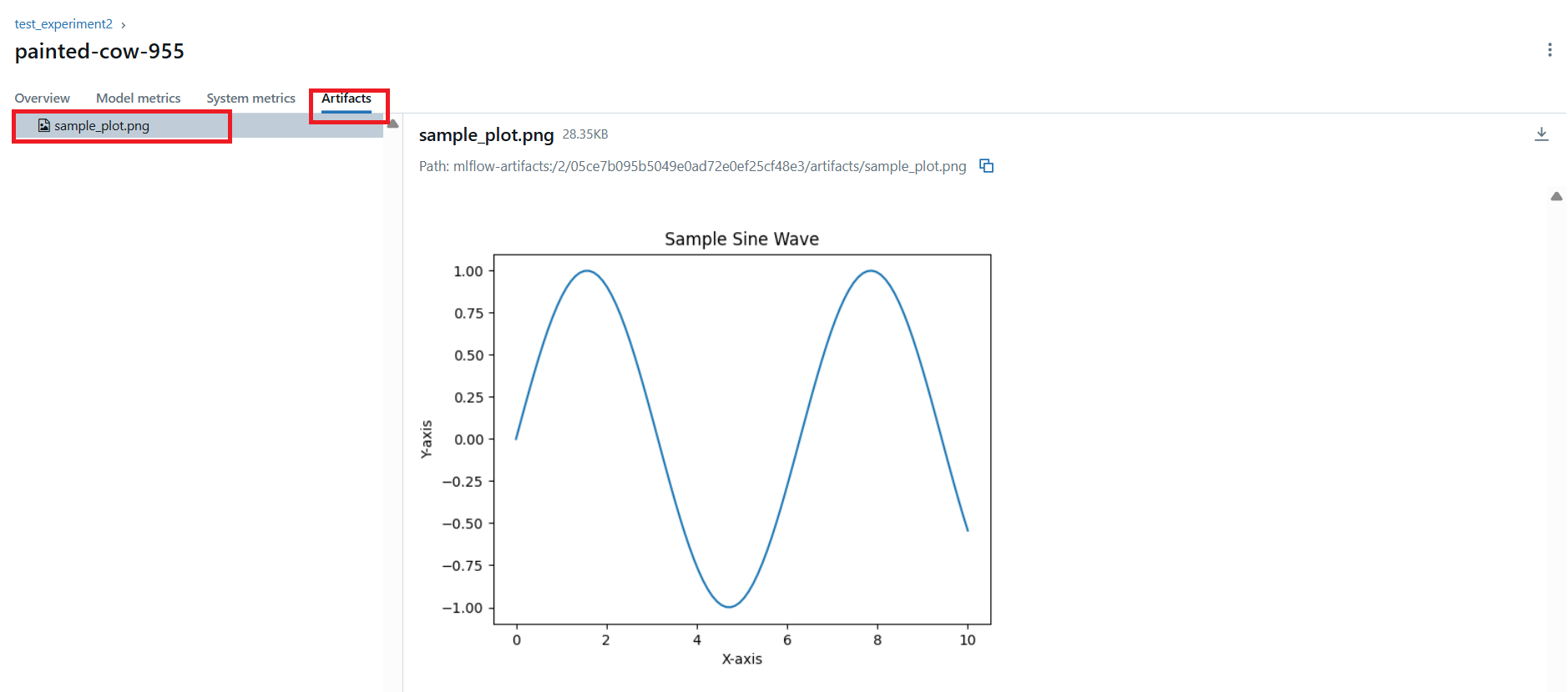

By clicking on the test_experiment2 run in the MLflow GUI, you can verify that the experiment has successfully stored the artifact under the Artifacts tab as shown below:

Very Important

There are ways we can improve this setup - for example, by adding basic authentication to the MLflow GUI to ensure that only authorized users can access it.

For more details, refer to this documentation.

---
