Create a Postgres Cluster

In the NERC OpenShift environment, the Crunchy Postgres for Kubernetes Operator is already installed, configured, and ready for general users to provision and manage PostgreSQL clusters.

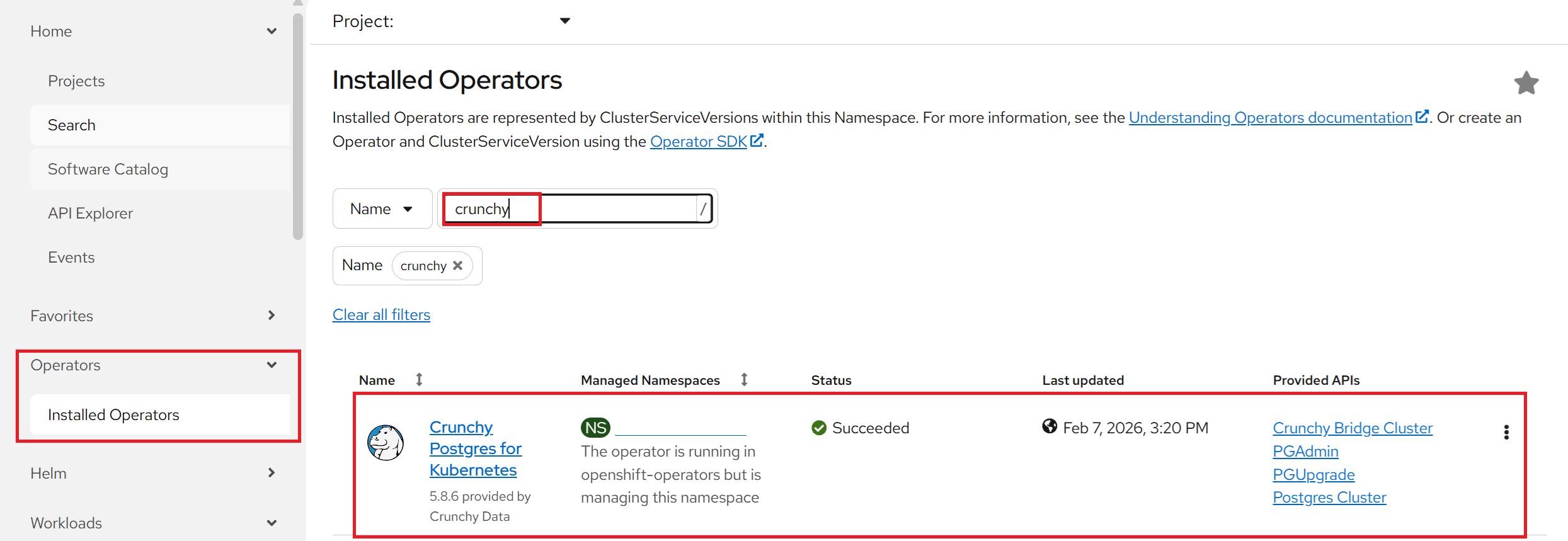

Crunchy Postgres for Kubernetes Operator

Built on Postgres Operator from Crunchy Data (PGO), the Postgres Operator from Crunchy Data, Crunchy Postgres for Kubernetes gives you a declarative Postgres solution that automatically manages your PostgreSQL clusters.

Steps

Using the CLI (oc command) on your local Terminal

Make sure you have the oc CLI tool installed and configured on your local machine following these steps.

Information

Some users may have access to multiple projects. Run the following command to switch to a specific project space: oc project <your-project-namespace>.

Set up a PostgreSQL cluster

Run the following command in your terminal to set up a PostgreSQL cluster named hippo-pg:

Very Important: Changing the Server Name

You can change the server name, e.g., hippo-pg, but make sure that all references to this name are updated in the subsequent steps.

cat <<EOF | oc apply -f -
apiVersion: postgres-operator.crunchydata.com/v1beta1
kind: PostgresCluster
metadata:
  name: hippo-pg
#   finalizers:
#     - postgres-operator.crunchydata.com/finalizer
  labels:
    app: hippo-pg
spec:
#   port: 5432
  users:
    - databases:
        - postgres
      name: postgres
      options: SUPERUSER
      password:
        type: AlphaNumeric
    - databases:
        - postgres
      name: admin
      options: SUPERUSER
      password:
        type: AlphaNumeric
#   proxy:
#     pgBouncer:
#       port: 5432
#       replicas: 3
#       service:
#         type: ClusterIP
#   monitoring:
#     pgmonitor:
#       exporter:
#         image: 'registry.developers.crunchydata.com/crunchydata/crunchy-postgres-exporter:ubi8-5.6.1-0'
#         resources:
#           limits:
#             cpu: 100m
#             memory: 128Mi
#           requests:
#             cpu: 50m
#             memory: 64Mi
#   backups:
#     pgbackrest:
#       global:
#         repo1-retention-full: '2'
#         repo1-retention-diff: '3'
#         archive-push-queue-max: 4GiB
#         repo1-retention-archive-type: 'diff'
#         repo1-retention-archive: '2'
#       repos:
#         - name: repo1
#           schedules:
#               full: "0 2 * * 0"           # Full backup every Sunday at 2 AM
#               differential: "0 2 * * 1-6" # Differential backup Mon-Sat at 2 AM
#               incremental: "0 */8 * * *"  # Incremental backup every 8 hours
#           volume:
#             volumeClaimSpec:
#               accessModes:
#                 - ReadWriteOnce
#               resources:
#                 requests:
#                   storage: 100Gi
  service:
    type: ClusterIP
  patroni:
    dynamicConfiguration:
      postgresql:
        parameters:
          max_connections: 100
          shared_buffers: 256MB
        pg_hba:
          - "host all all 0.0.0.0/0 md5"
          - "host all all ::/0 md5"
          - "local all all trust"
      synchronous_mode: false
    leaderLeaseDurationSeconds: 30
    port: 8008
    switchover:
      enabled: true
      type: Switchover
    syncPeriodSeconds: 10
  instances:
    - name: instance1
      replicas: 1
      dataVolumeClaimSpec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 20Gi   # Change this with your own value
            cpu: 200m
            memory: 200Mi
          limits:
            cpu: 1
            memory: 1Gi
      walVolumeClaimSpec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 10Gi
            cpu: 200m
            memory: 200Mi
          limits:
            cpu: 200m
            memory: 200Mi
      resources:
        requests:
          cpu: 200m
          memory: 200Mi
        limits:
          cpu: 1
          memory: 1Gi
  postgresVersion: 16
  openshift: true
EOF

PostgreSQL Cluster Configuration

In this setup, we are using the basic settings to create a PostgreSQL cluster. However, you can customize your cluster to create a production-ready environment with backups, scaling, high availability, monitoring, and seamless upgrades.

NOTE: Doing so will require additional resource quotas to support the enhanced features.

For more details, refer to the Crunchy Data documentation: Creating a PostgreSQL Cluster – Crunchy Data.

Background: PVC, Services and Secrets

Make sure the pvc are in a bound state. Run the following command:

oc get pvc --selector=postgres-operator.crunchydata.com/cluster=hippo-pg

The output should look similar to:

hippo-pg-instance1-wksp-pgdata                 Bound     pvc-ec32bb28-fa66-45ec-bb3b-5dd560200d2f   20Gi       RWO            ocs-external-storagecluster-ceph-rbd   <unset>                 38m
hippo-pg-instance1-wksp-pgwal                  Bound     pvc-9c26989e-ad67-4de5-b39f-e82a233e85f3   10Gi       RWO            ocs-external-storagecluster-ceph-rbd   <unset>                 38m

When your PostgreSQL cluster is initialized using the script above to set up the cluster named hippo-pg, PGO creates a set of Kubernetes Services that provide stable endpoints for connecting to your PostgreSQL databases. These endpoints ensure a consistent and reliable way for your application to access and interact with your data. To see which services are available, you can run the following command:

oc get svc --selector=postgres-operator.crunchydata.com/cluster=hippo-pg

The output should look similar to:

NAME                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
hippo-pg-ha          ClusterIP   172.30.243.135   <none>        5432/TCP   138m
hippo-pg-ha-config   ClusterIP   None             <none>        <none>     138m
hippo-pg-pods        ClusterIP   None             <none>        <none>     138m
hippo-pg-primary     ClusterIP   None             <none>        5432/TCP   138m
hippo-pg-replicas    ClusterIP   172.30.250.15    <none>        5432/TCP   138m

You don't need to worry about most of these Services, as they are primarily used to manage the overall health of your PostgreSQL cluster. For connecting your application to the database, the Service you should use is hippo-pg-primary.

You can query the pod using:

oc get pod -o name -l postgres-operator.crunchydata.com/cluster=hippo-pg,postgres-operator.crunchydata.com/role=master

The PGO will also bootstrap a database and create PostgreSQL users (e.g. admin and postgres) as defined in spec:users. These accounts can be used by your application to access the database i.e. postgres.

This information is stored in a Secret named with the pattern <clusterName>-pguser-<userName>. For our hippo-pg cluster, the Secrets are called hippo-pg-pguser-admin and hippo-pg-pguser-postgres, corresponding to the admin and postgres users.

oc get secrets --selector=postgres-operator.crunchydata.com/cluster=hippo-pg

The output should look similar to:

NAME                            TYPE     DATA   AGE
hippo-pg-cluster-cert           Opaque   3      46m
hippo-pg-instance1-wksp-certs   Opaque   4      46m
hippo-pg-pguser-admin           Opaque   8      46m
hippo-pg-pguser-postgres        Opaque   8      46m
hippo-pg-replication-cert       Opaque   3      46m

These Secrets contain the information needed to connect your application to the PostgreSQL database:

  • user: The name of the user account.

  • password: The password for the user account.

  • dbname: The default database that the user has access to.

  • host: The host name of the database, referencing the Service of the primary PostgreSQL Cluster instance.

  • port: The port on which the database is listening.

  • uri: A PostgreSQL connection URI containing all information for logging into the database.

  • jdbc-uri: A PostgreSQL JDBC connection URI for connecting via a JDBC driver.

Connect via psql in the local Terminal

If you are on the same network as your PostgreSQL cluster, you can connect directly to it using the following command:

psql $(oc get secrets hippo-pg-pguser-postgres -o go-template='{{.data.uri | base64decode}}')

Connect Using a Port-Forward

To access PostgreSQL Cluster without public exposure, you can use port forwarding to the cluster's primary pod - on port 5432:

PG_CLUSTER_PRIMARY_POD=$(oc get pod -o name -l postgres-operator.crunchydata.com/cluster=hippo-pg,postgres-operator.crunchydata.com/role=master)
oc port-forward "${PG_CLUSTER_PRIMARY_POD}" 5432:5432

You should see output similar to:

Forwarding from 127.0.0.1:5432 -> 5432
Forwarding from [::1]:5432 -> 5432

Run the following commands to establish a connection to the PostgreSQL cluster:

PG_CLUSTER_USER_SECRET_NAME=hippo-pg-pguser-postgres

PGUSER=$(oc get secrets "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.user | base64decode}}') \
PGPASSWORD=$(oc get secrets "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.password | base64decode}}') \
PGDATABASE=$(oc get secrets "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.dbname | base64decode}}') \
psql -h localhost -p 5432

Connecting With pgAdmin

Crunchy Postgres for Kubernetes also provides a pgAdmin image for users who prefer working with a graphical user interface.

Let's create the pgAdmin database browser.

  • Create a secret for pgAdmin password:

    export PGADMIN_PASSWORD='<your-pgadmin-password>'

  • Create a secret for pgAdmin password:

    oc create secret generic pgadmin-password-secret \
--from-literal=pgadmin-admin-password=$PGADMIN_PASSWORD

  • Run the below command to create pgAdmin instance

    cat <<EOF | oc apply -f -
apiVersion: postgres-operator.crunchydata.com/v1beta1
kind: PGAdmin
metadata:
  name: hippo-pgadmin
spec:
  dataVolumeClaimSpec:
    accessModes:
      - ReadWriteOnce
    resources:
      requests:
        storage: 1Gi
  serverGroups:
    - name: Crunchy Postgres for Kubernetes
      postgresClusterSelector: {}
  serviceName: hippo-pgadmin
  users:
    - passwordRef:
        key: pgadmin-admin-password
        name: pgadmin-password-secret
      role: Administrator
      username: admin@example.com   # Change this with your own username
EOF

    To access pgAdmin without public exposure

    To access pgAdmin without creating a public Route (as described in the next step), you can use port forwarding to the pgAdmin service i.e. hippo-pgadmin - on port 5050:

    oc port-forward svc/hippo-pgadmin 5050:5050

    You should see output similar to:

    Forwarding from 127.0.0.1:5050 -> 5050
Forwarding from [::1]:5050 -> 5050

    Once the port-forward is active, open your browser and navigate to:

    http://localhost:5050

    Use the following credentials to log in to the opened pgAdmin database explorer:

    username: admin@example.com

    password: $PGADMIN_PASSWORD

  • To access pgAdmin publicly, create a route for the pgAdmin database explorer:

    cat <<EOF | oc apply -f -
kind: Route
apiVersion: route.openshift.io/v1
metadata:
  name: route-pgadmin
spec:
  to:
    kind: Service
    name: hippo-pgadmin
    weight: 100
  port:
    targetPort: pgadmin-port
  tls:
    termination: edge
    insecureEdgeTerminationPolicy: Redirect
  wildcardPolicy: None
EOF

  • Get the pgAdmin URL to access the database explorer:

    oc get routes route-pgadmin -o jsonpath='https://{.spec.host}'

    Browse to the retrieved pgAdmin URL in your web browser to access the database explorer.

    pgAdmin Database Explorer

    Use the following credentials to log in to the pgAdmin database explorer:

    username: admin@example.com

    password: $PGADMIN_PASSWORD

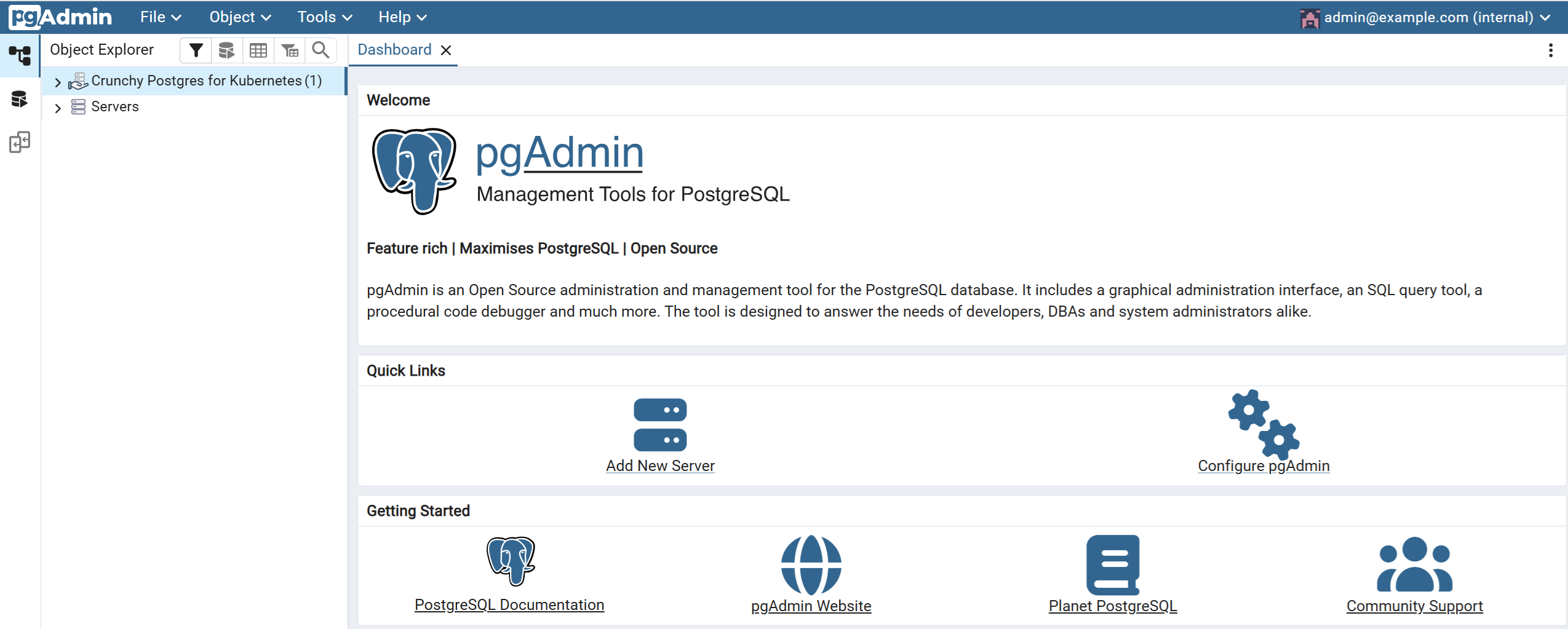

Once logged in, you can access the pgAdmin console as shown below:

pgAdmin Web Console

Click the Crunchy Postgres for Kubernetes server group to view the existing server, e.g., hippo-pg.

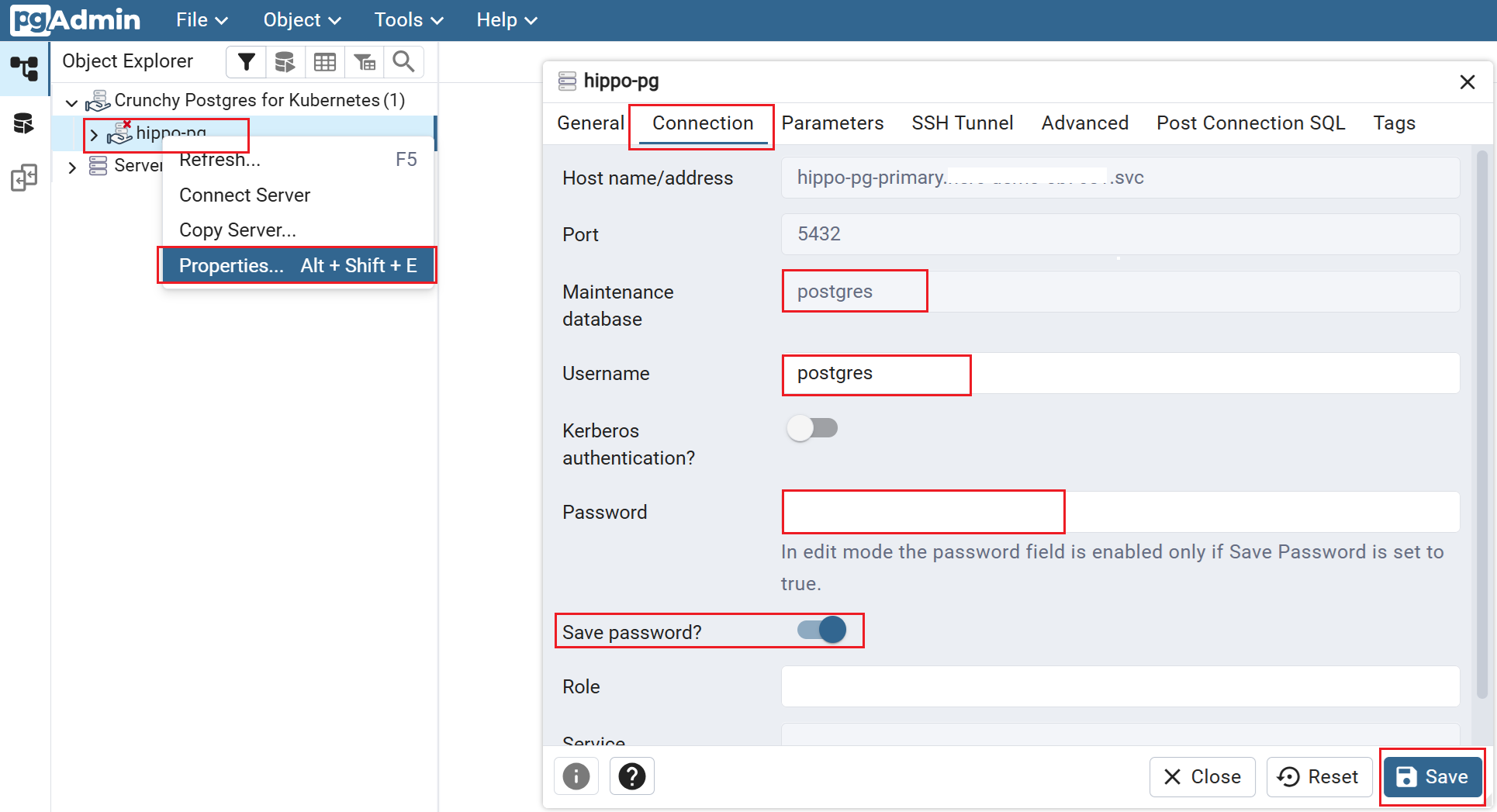

To configure server connections, right-click on hippo-pg and select Properties to open the Server dialog.

Use the Server dialog to define a connection to the server. Click the Connection tab to continue.

In the Connection tab, configure the connection using the following fields:

Connection Properties

  • Maintenance database: Specify the name of the initial database to which the client will connect.

  • Username: Specify the role name used to authenticate with the server.

  • Password: Enter the password used for authentication.

  • Save password?: Check this box to save the password for future use. Use Clear Saved Password to remove it if needed.

To retrieve these information, run the following commands:

PG_CLUSTER_USER_SECRET_NAME=hippo-pg-pguser-postgres

oc get secrets "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.dbname | base64decode}}'
oc get secrets "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.user | base64decode}}'
oc get secrets "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.password | base64decode}}'

These commands extract the database name, username, and password from the Kubernetes Secret associated with the specified user in your PostgreSQL cluster.

Admin User Secret

For the admin user, set the Secret name as follows:

PG_CLUSTER_USER_SECRET_NAME=hippo-pg-pguser-admin

To retrieve this information for the admin user, run the following commands:

oc get secret "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.dbname | base64decode}}'
oc get secret "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.user | base64decode}}'
oc get secret "${PG_CLUSTER_USER_SECRET_NAME}" -o go-template='{{.data.password | base64decode}}'

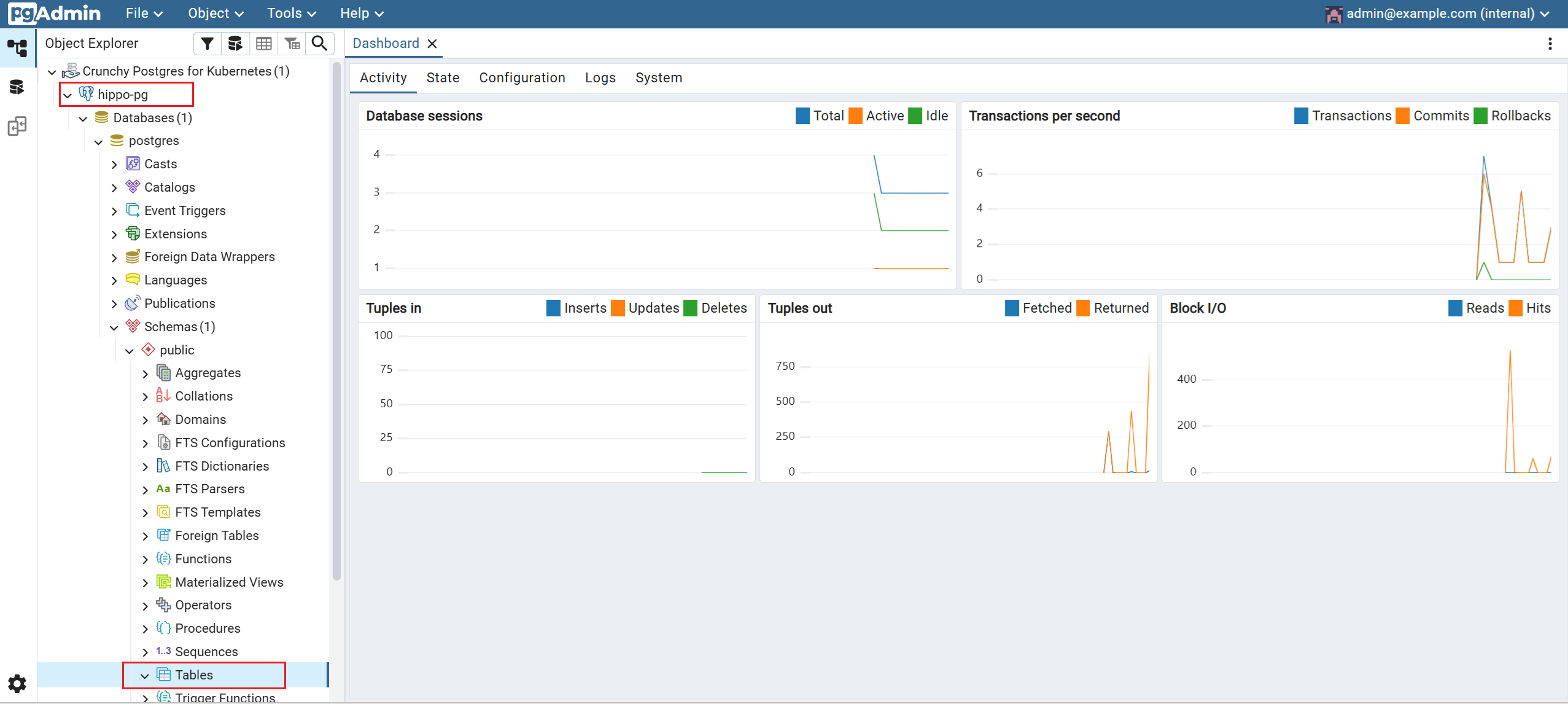

Once the database connection is successful, you will see the pgAdmin console as shown below:

Connection Successful

Deleting the pgAdmin

If pgAdmin was created as a PGAdmin custom resource, you can delete it by running:

oc delete pgadmin hippo-pgadmin

If pgAdmin was exposed with a Route, you can also delete the route:

oc delete route route-pgadmin

Delete the Postgres Cluster

There comes a time when it is necessary to delete your Postgres Cluster. If you have been following along with the example, you can delete your cluster by simply running:

oc delete postgrescluster hippo-pg

This removes the PostgresCluster resource and all associated components managed by the PGO.
